Hilti WSC 85 Quick Start Manual

Hide thumbs Also See for WSC 85:

This document is a summary of the original manual. You must read the detailed operating

instructions in full before operating the product.

Ignoring the warnings and instructions may lead to potentially fatal injury. The product has been

designed for professional use and may be operated, maintained and repaired only by suitably

trained or qualified personnel.

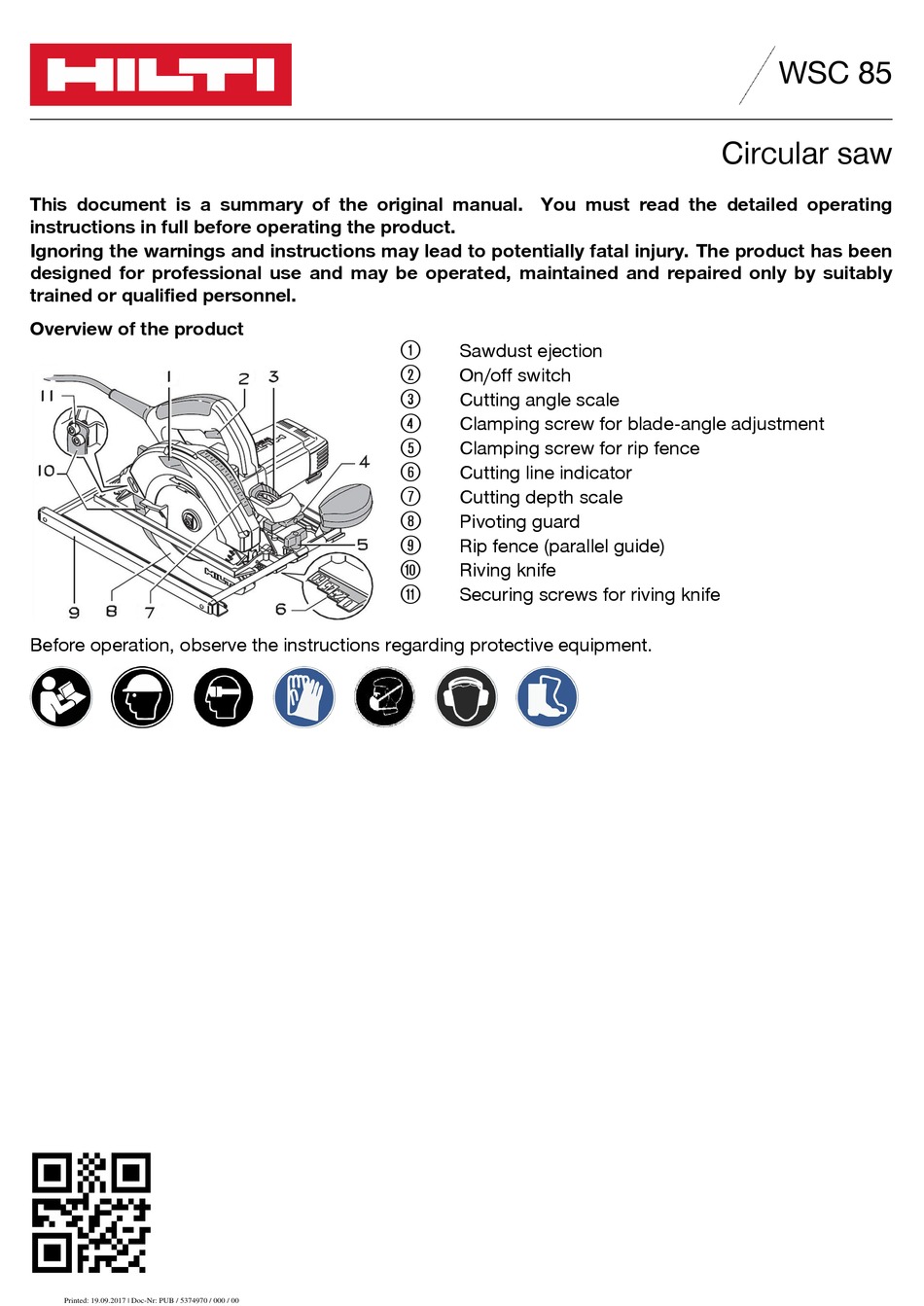

Overview of the product

Before operation, observe the instructions regarding protective equipment.

Printed: 19.09.2017 | Doc-Nr: PUB / 5374970 / 000 / 00

Sawdust ejection

On/off switch

;

Cutting angle scale

Clamping screw for blade-angle adjustment

Clamping screw for rip fence

Cutting line indicator

(

Cutting depth scale

)

Pivoting guard

Rip fence (parallel guide)

Riving knife

Securing screws for riving knife

WSC 85

Circular saw

Table of Contents

Need help?

Do you have a question about the WSC 85 and is the answer not in the manual?

Page 1 WSC 85 Circular saw This document is a summary of the original manual. You must read the detailed operating instructions in full before operating the product. Ignoring the warnings and instructions may lead to potentially fatal injury. The product has been designed for professional use and may be operated, maintained and repaired only by suitably trained or qualified personnel.
Page 2 WSC 85 Circular saw Intended use The product described is a circular saw. It is designed for cutting wood or wood-like materials, plastics, gypsum plasterboard, gypsum fiberboard and composite materials, up to a cutting depth of 85 mm (3.35 in).
