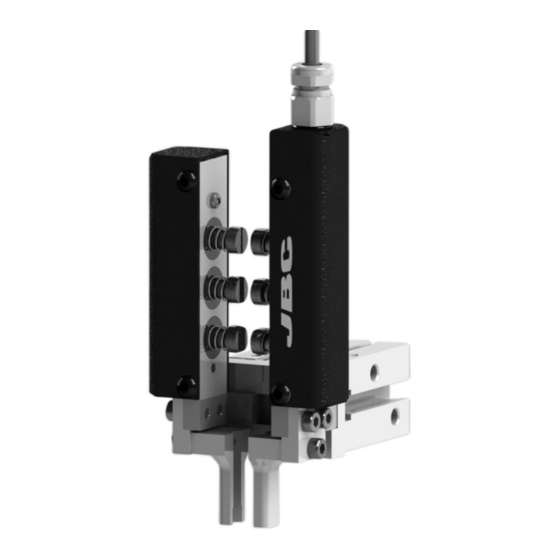

Automatic soldering irons for automation
Hide thumbs Also See for TRA245:

Advertisement

Quick Links

www.jbctools.com
Automatic Soldering Irons
for Automation
Ref. TRA245-A / TRA470-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRA245 and is the answer not in the manual?

Questions and answers

Summary of Contents for jbc TRA245

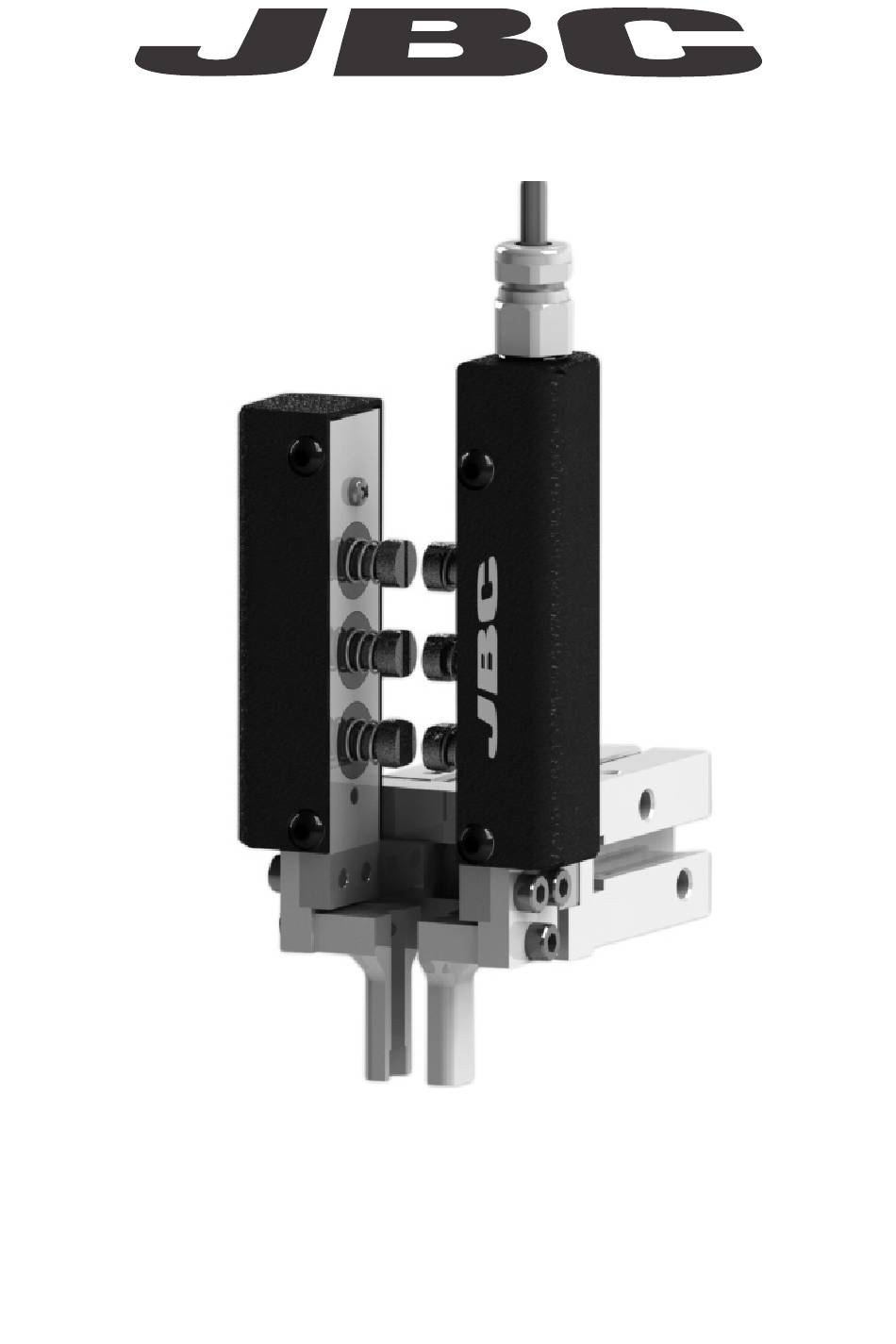

  • Page 1 Automatic Soldering Irons for Automation Ref. TRA245-A / TRA470-A...
  • Page 2: Packing List

    Packing List Either TRA245 or TRA470 are included. The following items should be included for TRA245: Soldering Iron for Automation ....1 unit Ref. TRA245-A Works with R245 cartridges Insulator Clamp ....1 unit Screws Screws DIN 912 M3X25 ....2 units DIN 912 M3X40 ....
  • Page 3 w w w.jbctools.com The following items should be included for TRA470: Soldering Iron for Automation ....1 unit Ref. TRA470-A Works with R470 cartridges Screws Screws Insulator Clamp ....1 unit DIN 912 M3x12 ..2 units DIN 912 M3x25 ... 2 units Ref.
  • Page 4 Screws Insulator Clamp assembled for proper Ref. 0001392 tool working. Don’t remove the Insulator Clamp. Automatic Soldering Iron Ref. TRA245-A A Air tube connection to fix cartridges Washers B Air tube connection to release cartridges Ref. 0242404 Gripper Actuator Fluid Screws Ref.
  • Page 5 w w w.jbctools.com TRA470 Connection to UCR470 Soldering Head for Automation* using Tool Cable Ref. RBA-A Ref. 0021403 Insulator Clamp Ref. 0021513 It is mandatory to have the electrical Screws Insulator Clamp assembled for proper Ref. 0926733 tool working. Don’t remove the Insulator Clamp. Automatic Soldering Iron Ref.
  • Page 6 Dimensions TRA245-A 68,4 2,693 15,8 15,8 0,622 0,827 0,622 2x 3,4 2x0,134 (in) Working point...
  • Page 7 w w w.jbctools.com TRA470-A 68,4 2,693 15,8 15,8 0,622 0,827 0,622 2x 3,4 2x0,134 (in) Working point...
  • Page 8: Inserting Cartridges

    The Automatic Soldering Iron for TRA is directed towards the cartridge. Once in position its valve must be activated. JBC recommends bi-stable valves to prevent the cartridges from falling out in case of an emergency stop or power cut. When using the Automatic Cartridge Stand CS2R, you have to activate its valve to open the gripper and to release the cartridge before making any movement.
  • Page 9 Accessories Soldering Head for Automation* Ref. RBA-A Solder Feeder for Automation* Ref. SFR-A Guide Kit for Automation* Ref. GSFR Automatic Cartridge Stand* Ref. CS2R245-A CS2R470-A Automatic Soldering Iron Ref. TRA245-A TRA470-A *Not included, sold separately...
  • Page 10 Work Place Example Soldering Head* Ref. RBA-A Solder Feeder* Ref. SFR-A Automatic Soldering Iron Ref. TRA245-A Guide Kit* TRA470-A Ref. GSFR Automatic Tip Control Unit* Cleaner* Ref. UCR245-5A Ref. CLMR-A UCR470-5A Automatic Cartridge Stand* Ref. CS2R245-A CS2R470-A *Not included, sold separately...
  • Page 11: Maintenance

    - Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 12: Specifications

    138.1 x 68.4 x 52.6 mm (5.437 x 2.693 x 2.111 in) Complies with CE standards. ESD protected. Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.

This manual is also suitable for:

Tra470Tra245-aTra470-a
