INSTRUCTION MANUAL
TRA
Automatic Soldering Iron
for Robot

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRA245-B and is the answer not in the manual?

Questions and answers

Related Manuals for jbc TRA245-B

Summary of Contents for jbc TRA245-B

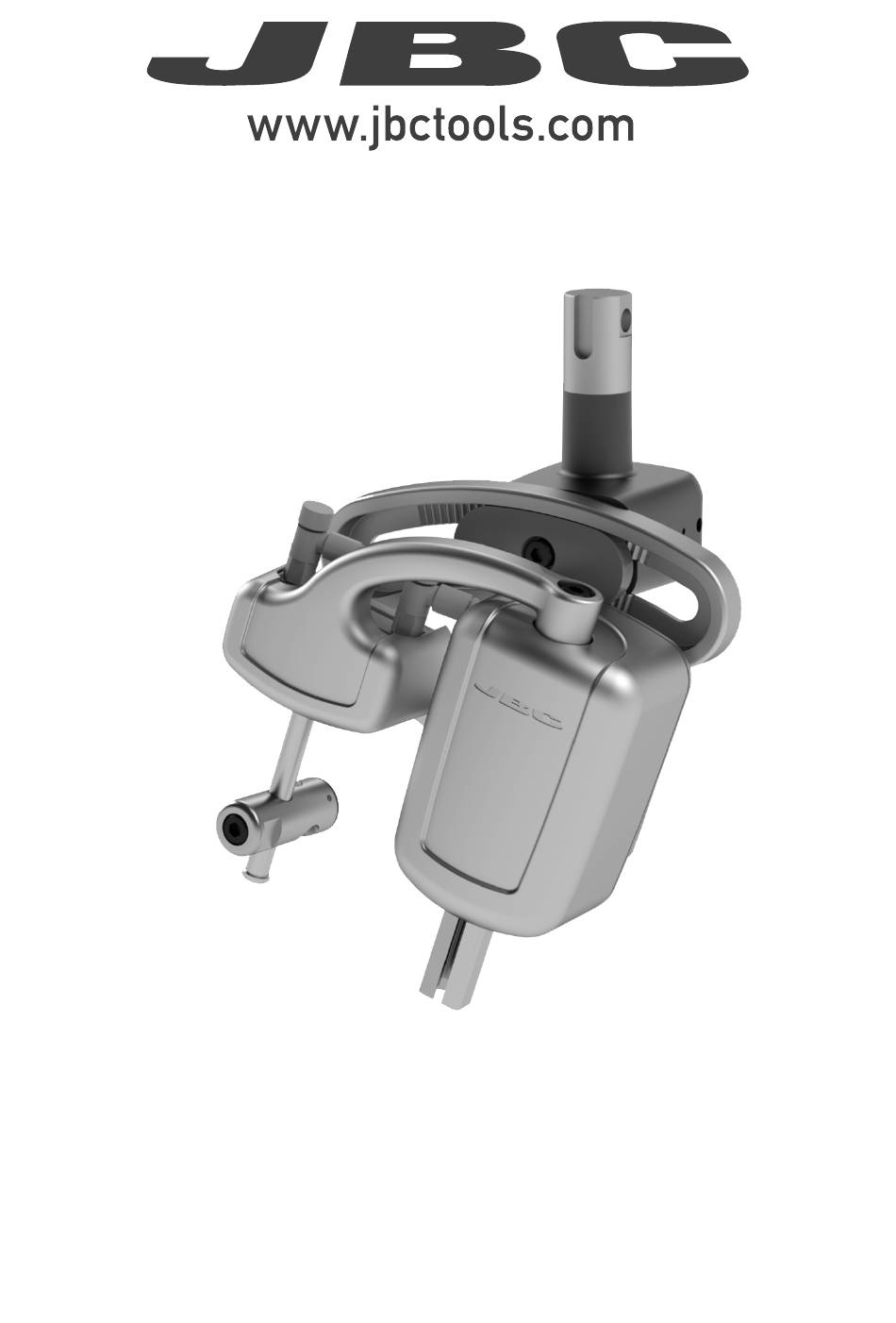

  • Page 1 INSTRUCTION MANUAL Automatic Soldering Iron for Robot...

  • Page 2: Packing List

    This manual corresponds to the following references: - TRA245-B works with R245 cartridges - TRA470-B works with R470 cartridges Packing List Either Ref. TRA245-B or Ref. TRA470-B is included. Automatic Soldering Iron for Robot ....................1 unit Manual ................................. 1 unit Ref. 0027874...
  • Page 3 w w w.jbctools.com Assembly: GSFR Tube to SFR* and TRA* 1. Assemble SFR and the appropiate GSFR Guide Tube to TRA as described in SFR instructions manual. 2. Adjust TRA guide position in angle, height and lenght, then tighten the bolt to lock your settings. 3.
  • Page 4 D Air tube connection: Open grippers. Operating pressure 1,5 to 7 bar 20 to 100 psi Note: JBC recommends bi-stable valves for the grippers to prevent the cartridge from falling out in case of an emergency stop or power cut.
  • Page 5 Dimensions TRA245-B...
  • Page 6 Dimensions TRA470-B...
  • Page 7 Centering Jig In order to align the CSR to your Soldering Head and set your cartridge pick-up points use JBC´s Centering Jig. Instal both, lower and upper centering jigs, Adjust the Soldering Head position until the into CSR Cartridge Stand and HA Soldering upper and lower centering jigs are aligned.
  • Page 8 Work Place Example GSFR *Not included, sold separately Compatibility Cartridge Range Control Unit Cartridge Stand Soldering Irons R245 R470 UCR245 UCR470 CS2R245 CS2R470 TRA245 TRA470 SFR, GSFR and CLMR are compatible with both R245 and R470 cartridges.

  • Page 9: Maintenance

    - Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Replace any defective or damaged part. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service.
  • Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the soldering iron for any purpose other than soldering or rework. Incorrect use may cause fire. - Do not leave the appliance unattended when it is on. - Be sure that the power supply is disconnected before changing any spare part.
  • Page 11 w w w.jbctools.com Notes...

  • Page 12: Specifications

    8.66 x 8.39 x 6.30 in / 2.20 lb Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.

This manual is also suitable for:

Tra470-b
