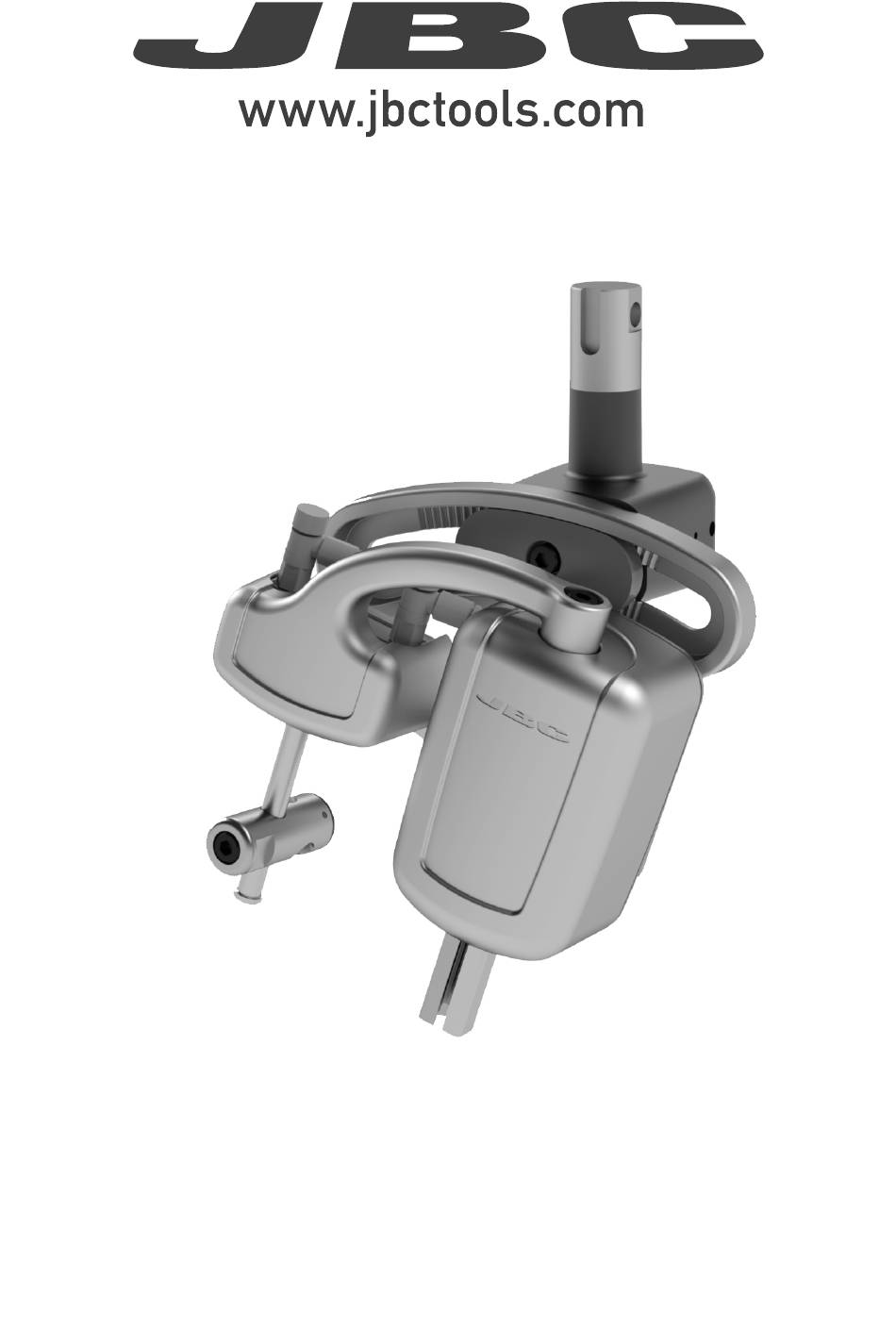

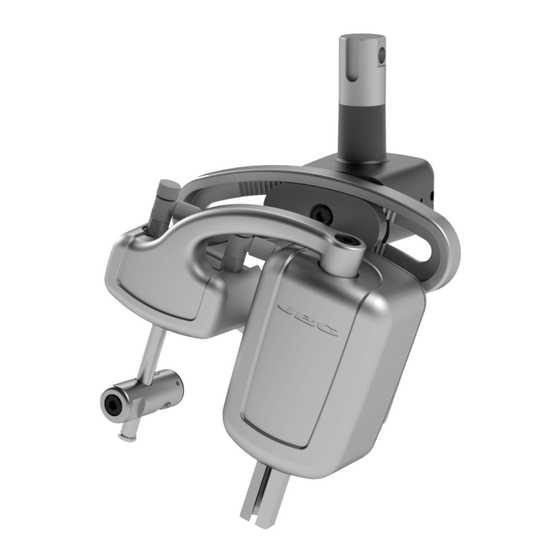

- Page 1 INSTRUCTION MANUAL TRA245/TRA470 Automatic General/Heavy Duty Soldering Tool for Robot...
-
Page 2: Packing List
This manual corresponds to the following references: - TRA245-B works with R245 cartridges - TRA470-B works with R470 cartridges Packing List Either Ref. TRA245-B or Ref. TRA470-B is included. Automatic Soldering Tool for Robot ....................1 unit Manual ................................. 1 unit Ref. 0027874... - Page 3 para manuales - color gris 200 mm Assembly: GSFR Tube to SFR* and TRA* 130 mm 130 mm 1. Assemble SFR and the appropriate GSFR Guide Tube to TRA as described in the SFR instructions manual. 100 mm 2. Adjust the TRA guide position in angle, height and length, then tighten the bolt to lock your settings. 3.
- Page 4 D Air tube connection: Open grippers. Operating pressure 1,5 to 7 bar 20 to 100 psi Note: JBC recommends bi-stable valves for the grippers to prevent the cartridge from falling out in case of an emergency stop or power cut.
- Page 5 - color gris 200 mm Dimensions 130 mm 130 mm TRA245 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 6 Dimensions TRA470...
- Page 7 130 mm 130 mm In order to align CSR245 and CSR470 to the soldering tool and set the cartridge pick-up points use JBC´s centering jigs. 100 mm Install, as shown, the lower centering jig into the Adjust the soldering tool position until the gripper of CSR and the upper centering jig into centering jigs are aligned.
- Page 8 HA Automatic Soldering Set for Robot HM Soldering Set for Robot Compatibility Automatic Cartridge Range Control Unit Cartridge Exchanger Soldering R245 R470 UCR245 UCR470 CS2R245 CS2R470 Tool TRA245 TRA470 SFR, GSFR and CLMR are compatible with both R245 and R470 cartridges.
-
Page 9: Maintenance
Rusty and dirty surfaces reduce heat transfer to the solder joint. 60 mm - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service. 50 mm - Under normal operating conditions, the air gripper lifespan is 10 million cycles. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the soldering iron for any purpose other than soldering or rework. Incorrect use may a cause fire. - Do not leave the appliance unattended when it is on. - Be sure that the power supply is disconnected before changing any spare parts.
- Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
-
Page 12: Specifications
1.5 to 7 bar / 20 to 100 psi Complies with CE standards. ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
