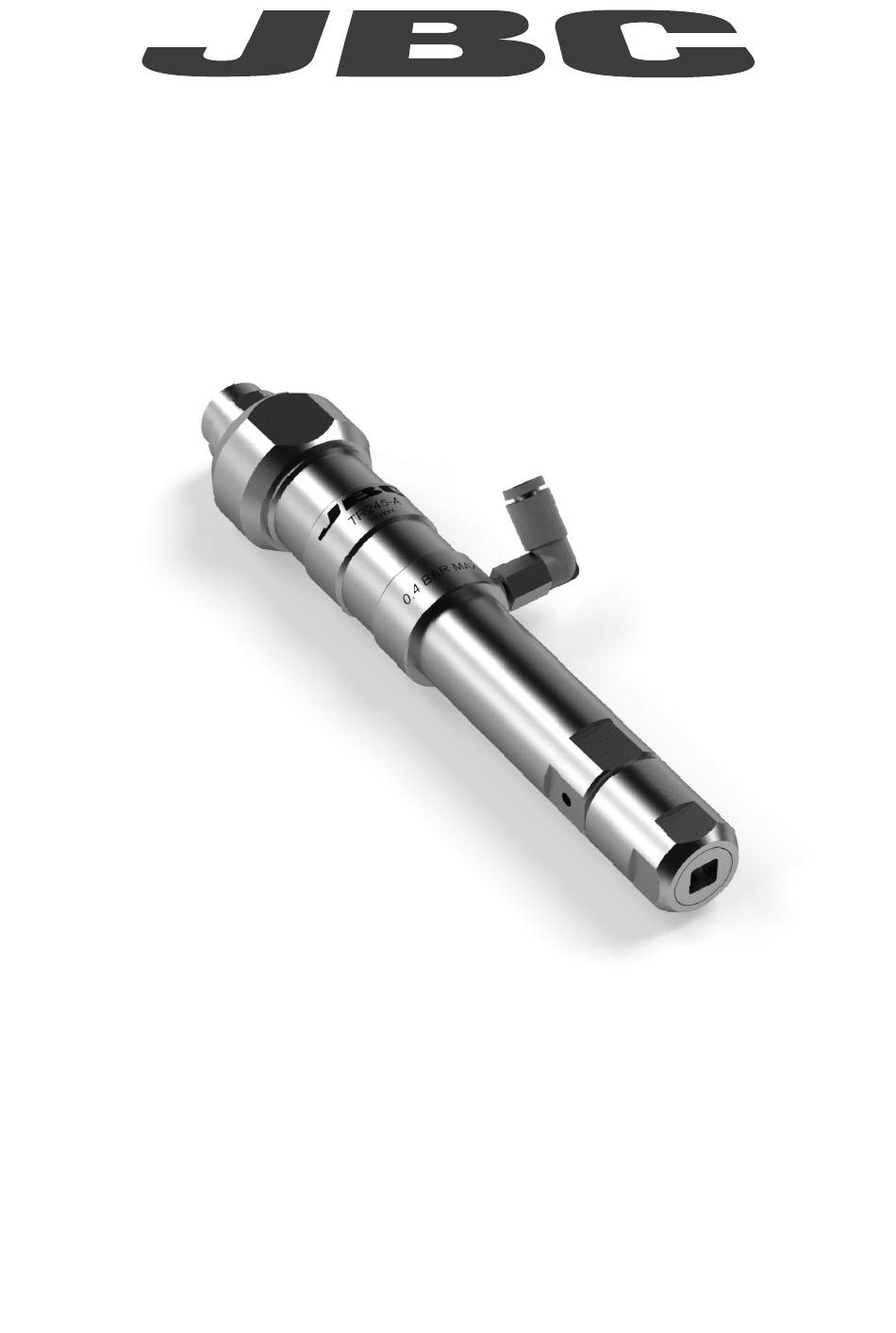

- Page 1 INSTRUCTION MANUAL Soldering Irons for Automation Ref. TR245-A...
- Page 2 Packing List The following items are included: Soldering Iron ... 1 unit Ref. TR245-A Works with R245 Cartidges Clamp ......1 unit Insulator ..... 1 unit Screws Ref. 0018779 Ref. 0020440 DIN 912 M3X10..... 2 units Ref. 0722900 Manual ......1 unit Screw DIN 912 M4X16.....
- Page 3 Assembly Soldering Iron for Automation* Ref. TR245-A Cooling fitting For the correct operation of this tool constant air flow is needed. Always provide clean air. Input preassure: 0,4 bar/ 5,8 psi. Insulator Bushing Ref. 0020440 The electrical Insulator Bushing must be assembled for the tool to work properly.
- Page 4 Assembly with RBA-A Soldering Head for Automation* Ref. RBA-A The TR245 is connecta- ble to the UCR245 using the Tool Cable Ref. 0021403 Screws Ref. 0722900 * Not included, sold separately...
- Page 5 w w w.jbctools.com Inserting and removing Cartridges For any hand operation make sure the power is off and both tool and cartridge are cold. Before removing or inserting the cartridge, make sure air preassure is off. Insert the cartridge and press lightly until it The square recess of the Soldering Iron for is placed in the Soldering Iron for Automation Automation must be matched with the square...
- Page 6 Dimensions TR245-A (in)
- Page 7 - Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 8 55 x 33.5 x 10 mm (2.16x 13.18 x 0.39 in) Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
