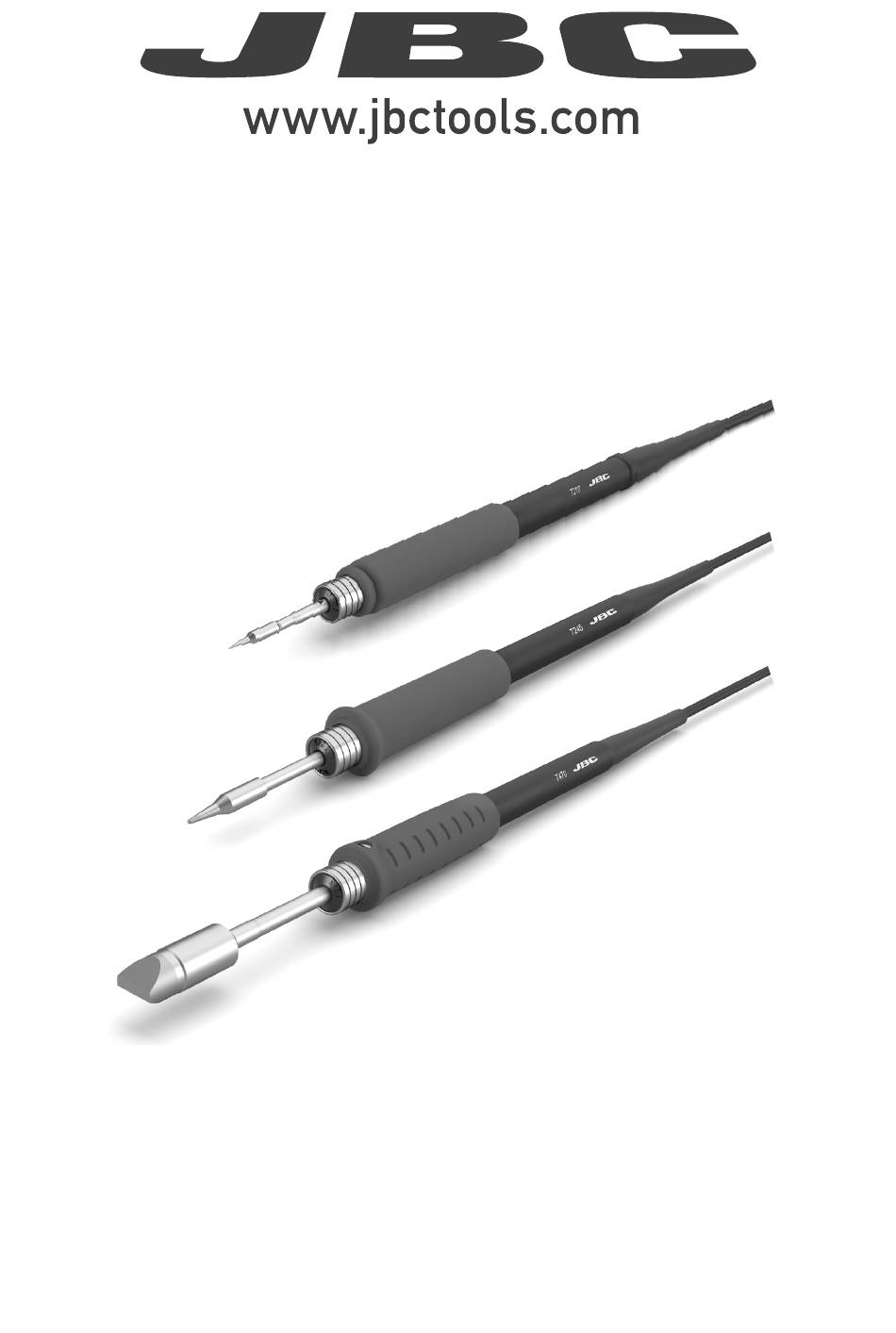

- Page 1 INSTRUCTION MANUAL T210, T245, T470 Handles...
-
Page 2: Packing List
- T245-NA - T470-FA - T470-MC - T470-NA Packing List Packing List Packing List For refs. T210-A/PA For refs. T245-A/GA/PA For refs. T470-A/SA/ZA/FA/MC Handle ....1 unit Handle ....... 1 unit Handle ......1 unit According to purchased According to purchased reference. - Page 3 100 mm They come with a soft foam grip to ensure a better handling of the tool and a greater comfort when working. T210 Handles are supplied with a 1.5 m cable and work with C210 cartridges (not included) 80 mm T210 Precision Handle Ref.
- Page 4 Features - T245 General Purpose Handles T245 Handles are suitable for working with SMD components and for soldering jobs with high power requirements (e.g. ground plane soldering). Some models come with soft foam grips to ensure a better handling of the tool and a greater comfort when working, while also providing thermal insulation.
- Page 5 T245N Handles are designed to create an oxygen-free atmosphere, thus ensuring higher quality soldering. They offer extra heat to the solder joint and help prevent oxidation. 100 mm Note: JBC’s GN Nitrogen Generator Module or an external nitrogen feed is needed. Nitrogen Feed 80 mm...
- Page 6 T470N Handles are designed to create an oxygen-free atmosphere, thus ensuring higher quality soldering. They offer extra heat to the solder joint and help prevent oxidation. Note: JBC’s GN Nitrogen Generator Module or an external nitrogen feed is needed. Nitrogen Feed...
- Page 7 Changing Cartridges - T210 and T245 Handles 130 mm 130 mm JBC’s tool stand ADS, for T210 and T245 Handles, comes with a quick cartridge exchanger. Save time and change cartridges safely without switching the station off. Be careful, the cartridges may be hot when placing them in the cartridge holder.
- Page 8 Changing Nitrogen Nozzles If the outer cartridge diameter D 1 is smaller than the inner nozzle diameter D 2 , the nozzle can be removed without removing the cartridge. When the nozzle is hot, use pliers to remove it. øD 1 øD 2 Nozzle If the outer cartridge diameter D 1 is larger than the inner nozzle diameter D 2 .
- Page 9 Cartridge Range 130 mm 130 mm JBC offers for each handle different cartridge types. Find the model that best suits your soldering needs at www.jbctools.com. T210 Handles work with C210 Cartridges, T245 Handles work C245 Cartridges and T470 Handles 100 mm with C470 Cartridges.
- Page 10 * Not included, sold separately. Accessories F3435 CC1001 Fume extractor Ø6 for T245/T470 Cable collector Keeps the cable F3450 away from the Fume Extractor Ø4 for T210 soldering area. Clips can be easily removed for quick maintenance.
- Page 11 - color gris 200 mm Compatibility 130 mm 130 mm Compact Modular System Stations 100 mm Cartridge Handle Stand Range T210 C210 T210P 80 mm T245 C245 T245G T245P C245 60 mm T470 C470 C245 T470S C470 50 mm...
-
Page 12: Maintenance
Use a damp cloth or alcohol. - Periodically check all cables and tubes connections. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 13 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 14 Notes...
-
Page 15: Specifications
Package Weight: 100 mm Ref. T210-A 56.8 g / 0.013 lb 106.5 g / 0.031 lb Ref. T210-PA, Blue-Grip 56.8 g / 0.013 lb 106.5 g / 0.031 lb Ref. T210-NA, Nitrogen 93 g / 0.013 lb 165 g / 0.031 lb... - Page 16 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
