jbc ap130-a Manual

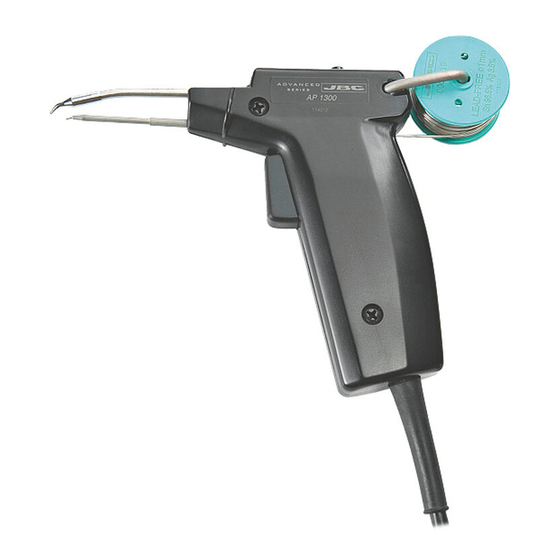

Solder feed iron
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
www.jbctools.com
English
Solder Feed Iron
Ref. ap130-a

Advertisement

loading

Related Manuals for jbc ap130-a

Summary of Contents for jbc ap130-a

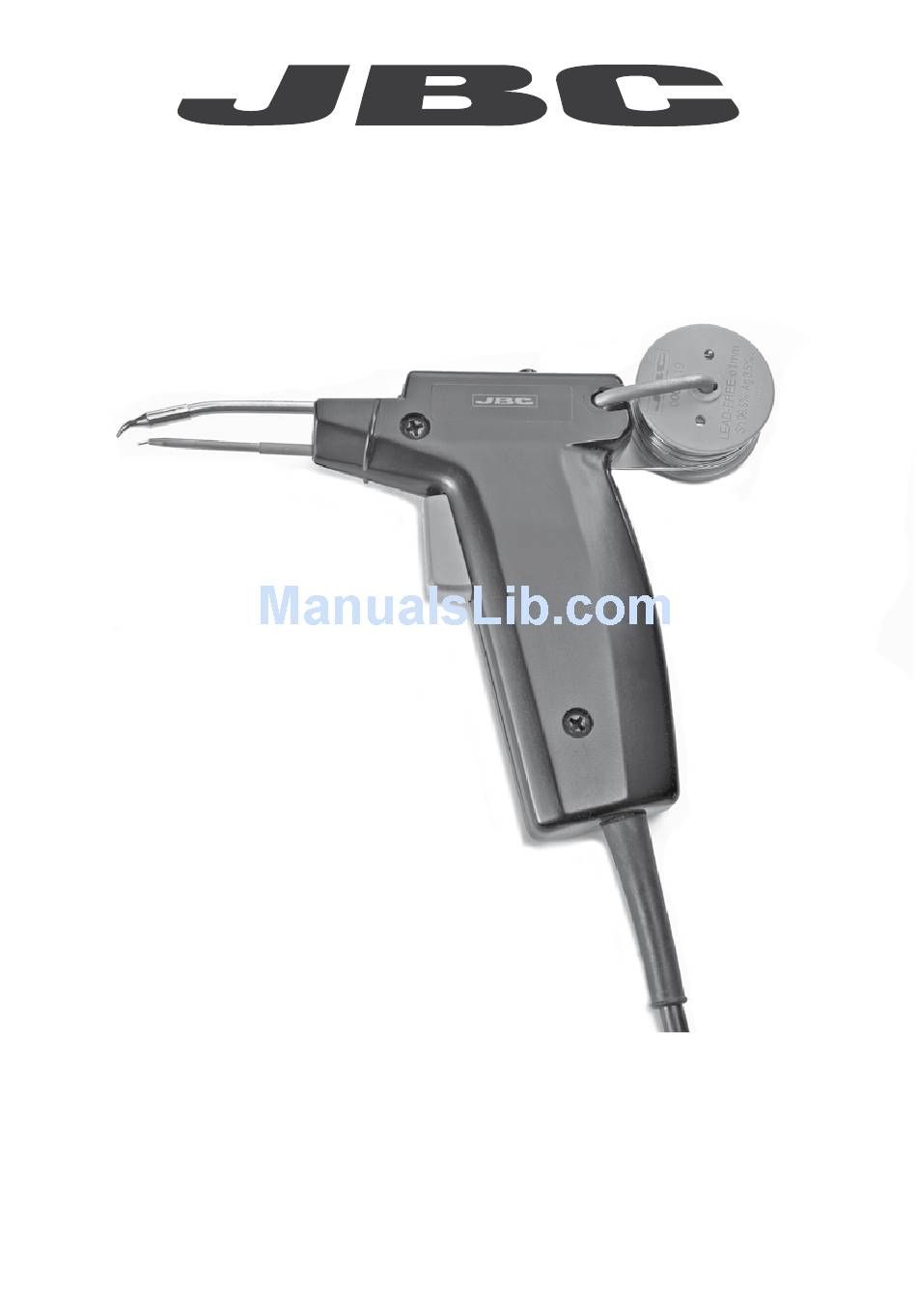

  • Page 1 English Solder Feed Iron Ref. ap130-a...

  • Page 2: Packing List

    The following items should be included: Solder Feed Iron ........1 unit Feeding Tube ..........1 unit Reel ..............1 unit Solder Feed Iron Reel Ref. ap130-a Ref. 0002801 Feeding Tube Manual Ref. 0006559 w w w.jbctools.com Solder Feed Iron...
  • Page 3 Features The ap130-a Solder Feed Iron is fully compatible with any JBC station within the Modular Line and with the CF Solder Feed station within the Compact Line. Solder Feed Iron Ref. ap130-a Equipotential connection Power cord...
  • Page 4 Changing cartridge For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Removing 2. Inserting Mark Important: Insert the cartridge as far as Loosen the screw and remove the cartridge. the mark for a correct connection. Use a plier to remove it if still hot.
  • Page 5 w w w.jbctools.com Replacing solder wire 1. Remove the remaining solder wire Pull out the solder remaining inside the feeding tube. Use a plier if necessary. 2. Replace the solder reel Push the empty reel to remove it and fit the new one.

  • Page 6: Compatible Cartridges

    Compatible Cartridges The ap130-a Solder Feed Iron works with C130 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø 0,6 ø 1 C130-401 C130-402 C130-403 C130-409 ø 3 ø 2,2 ø 4...
  • Page 7 Solder Reel Stand Ref. BE-Sa Solder Feed Iron Ref. ap130-a Fume Extractor The fume extractor is an easy & safe solution to suck the fume generated at the solder joint. Suction pump and filter Fume Extractor Ref.
  • Page 8 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
