Rev. 1.0 — 22 June 2018
User guide
1
FRDM33772BTPLEVB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRDM33772BTPLEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors FRDM33772BTPLEVB

  • Page 1: Frdm33772Btplevb

    FRDM33772BTPLEVB Featuring the MC33772B battery cell controller IC Rev. 1.0 — 22 June 2018 User guide FRDM33772BTPLEVB...
  • Page 2: Important Notice

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Important notice NXP provides the enclosed product(s) under the following conditions: This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and supply terminals.
  • Page 3: Getting Started

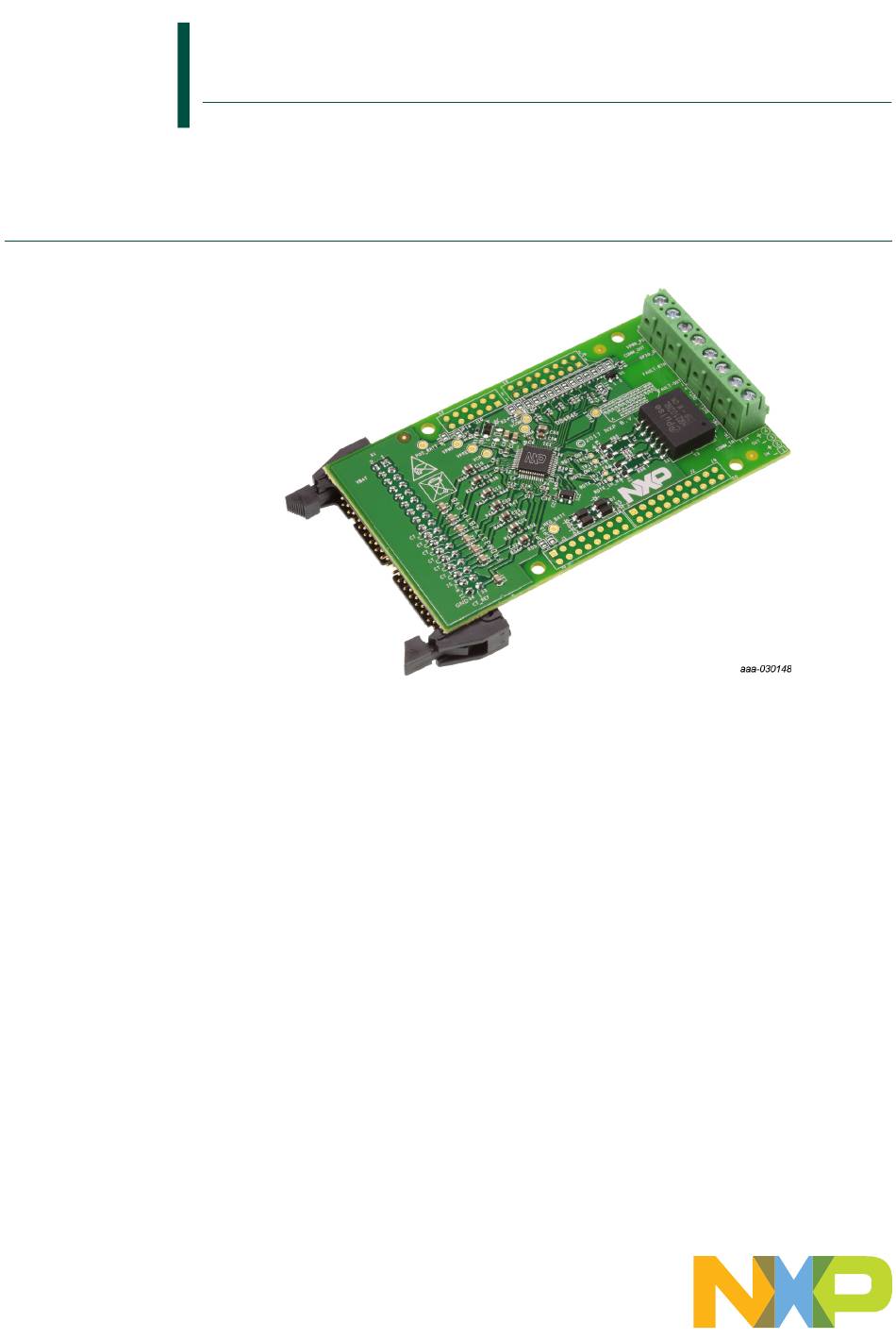

    Getting to know the hardware 4.1 Board overview The FRDM33772BTPLEVB serves as a hardware evaluation tool in support of NXP's MC33772B device. The MC33772B is a battery cell controller that monitors up to 6 lithium-ion battery cells. It is designed for use in both automotive and industrial FRDM33772BTPLEVBUG All information provided in this document is subject to legal disclaimers.
  • Page 4: Board Features

    The device performs ADC conversion on the differential cell voltages and currents. It is also capable of battery charge coulomb counting and battery temperature measurements. The FRDM33772BTPLEVB is an ideal platform for rapid prototyping of MC33772B-based applications that involve current, voltage, and temperature sensing.
  • Page 5: Device Features

    • Fully compatible with the MC33772 for a maximum of 14 cells • Qualified in compliance with AEC-Q100 4.5 Board description The FRDM33772BTPLEVB allows the user to exercise all the functions of the MC33772B battery controller cell. Figure 2. Board description FRDM33772BTPLEVBUG All information provided in this document is subject to legal disclaimers.
  • Page 6: Vcom Led

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Table 2. Board description Name Description MC33772B Battery-cell controller IC 4.6 VCOM LED The VCOM LED is located on the board as shown in Figure Figure 3. VCOM LED The VCOM LED indicates when the device is in normal mode. Upon reset, the MC33772B enters into normal mode (VCOM turns on).
  • Page 7: Connectors

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Figure 4. Test points The following test points provide access to various signals to and from the board. Table 3. Test points Test-point name Signal name Description RTDX_IN_N SI/RDTX_IN– Measures the isolated pulse communication...
  • Page 8: External Eeprom

    Cell balance driver. Terminate to cell 1 cell balance load resistor. X1-34 Negative_Battery 4.9 External EEPROM The FRDM33772BTPLEVB has an integrated gateway communication link to an external local EEPROM. The MC33772B's I C Communication Interface manages communication with the EEPROM.
  • Page 9: Gpio Configuration

    4.12 Fault detection The FRDM33772BTPLEVB uses an optocoupler to detect a fault that is dependent on user defined internal or external faults. The fault signal can be chained between EVBs and can be made available on the controller inputs.
  • Page 10: Configuring The Hardware

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Figure 6. FRDM33664BEVB Configuring the hardware 6.1 Battery stack connection A minimum of 3 cells and a maximum of 6 cells can be monitored. NXP provides a 6- cell battery emulator board, BATT-6EMULATOR. This board provides an intuitive way to change the voltage across any of the 6 cells of an emulated battery pack as well as the voltage across an emulated current sense shunt resistor.
  • Page 11: Jumper Connection

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Figure 7. Battery stack connection 6.2 Jumper connection One hand-soldered jumper (JP11) on the EVB is used to set the GPIO0 pin input. In position 1-2 (default), the NTC (NTC0) is connected to GPIO0 pin of the MC33772B.
  • Page 12: Tpl Communication Connection

    Featuring the MC33772B battery cell controller IC 6.3 TPL communication connection In a high-voltage Isolated application with a daisy chain configuration, up to 15 FRDM33772BTPLEVB boards may be connected. The TPL connections use the COMM (J4) connector. Figure 8. FRDM33772BTPLEVB board setup 6.4 Fault chain connection...
  • Page 13: Off-Board Ntc Configuration

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Figure 9. Fault chain connection 6.5 Off-board NTC configuration FRDM33772BTPLEVB supports off-board NTC, please follow the instruction in Table Table 5. Off-board NTC configuration Remove Short Short Connect off-board NTC between NTC0...
  • Page 14: References

    FRDM33772BTPLEVB NXP Semiconductors Featuring the MC33772B battery cell controller IC Table 6. Bill of materials Part number Description M50-9101742 34-pin ribbon cable BATT-6EMULATOR 6-cell slider battery pack emulator kit with shunt for current sense FRDM33664BEVB EVB for MC33664ATL Isolated Network High-Speed Transceiver References Board summary page —...
  • Page 15: Legal Information

    10 Legal information responsible for doing all necessary testing for the customer’s applications and products using NXP Semiconductors products in order to avoid a 10.1 Definitions default of the applications and the products or of the application or use by customer’s third party customer(s).
  • Page 16 Board description ..........5 Fig. 7. Battery stack connection ......... 11 Fig. 3. VCOM LED ............6 Fig. 8. FRDM33772BTPLEVB board setup ....12 Fig. 4. Test points ............7 Fig. 9. Fault chain connection ........13 Fig. 5. Connectors ............8 FRDM33772BTPLEVBUG All information provided in this document is subject to legal disclaimers.
  • Page 17: Table Of Contents
