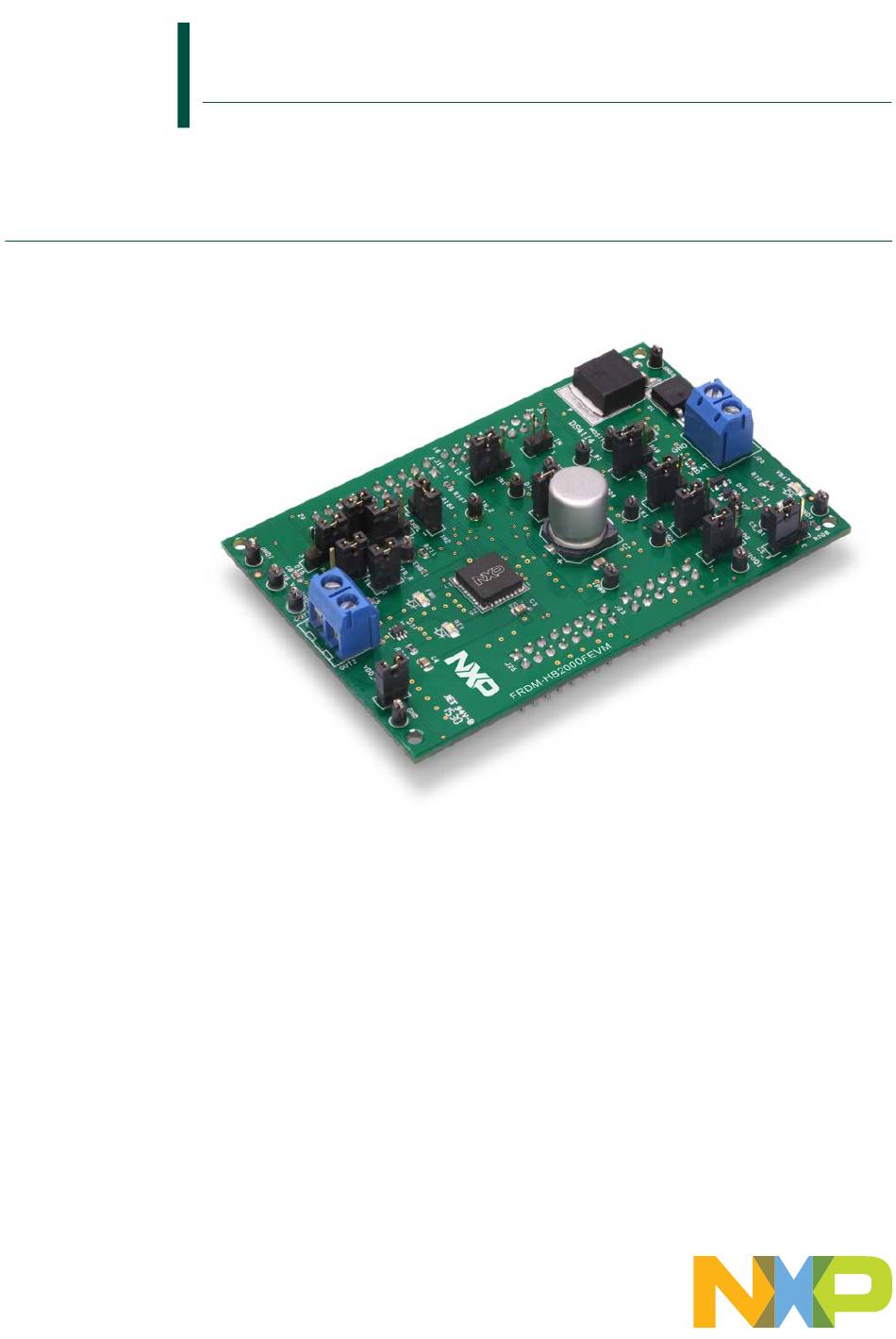

KTFRDMHB2000FEVMUG FRDM-HB2000FEVM evaluation board Rev. 1.0 — 5 July 2016 User guide FRDM-HB2000FEVM... -
Page 2: Important Notice
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Important notice NXP provides the enclosed product(s) under the following conditions: This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and supply terminals. -
Page 3: Getting Started
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Getting started 3.1 Kit contents/packing list The FRDM-HB2000FEVM contents include: • Assembled and tested evaluation board/module in anti-static bag • FRDM-KL25Z • Quick start guide 3.2 Jump start NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP products. -
Page 4: Getting To Know The Hardware
FRDM-HB2000FEVM evaluation board Getting to know the hardware 4.1 Board overview The FRDM-HB2000FEVM evaluation kit exercises all the functions of the MC33HB2000 H-Bridge device. The parallel input can be easily controlled by lab equipment or any MCU with GPIOs. The board can be used in conjunction with a FRDM-KL25Z board connected to a PC’s USB port. -
Page 5: Block Diagram
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 4.3 Block diagram 5V Voltage Reverse Regulator Battery and Power Supply Transient Protection VPWR Optional 5.0 V Supply to FRDM VDD LED Charge Pump Capacitor Optional 3.3 V Supply from FRDM VPWR FS_B LED... -
Page 6: Modes Of Operation
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Table 1. Device features Device Description Features MC33HB2000 The 33HB2000 is a monolithic H-Bridge • Advanced diagnostic reporting via a serial peripheral Power IC, enhanced with SPI configurability interface (SPI): charge pump undervoltage on VPWR, and diagnostic capabilities. -
Page 7: Architecture
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 4.3.3 Architecture Figure 3. Architecture KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 5 July 2016 7 / 36... -
Page 8: Thermal Management
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 4.3.4 Thermal management Figure 4. Thermal management KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 5 July 2016... -
Page 9: Board Description
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 4.4 Board description Figure 5 describes the main elements on the FRDM-HB2000FEVM. Figure 5. Board description Table 2. Board description Number Name Description MC33HB2000 Monolithic H-Bridge Power IC in a robust thermally enhanced 32 lead PQFN package... -
Page 10: Led Display
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 4.5 LED display The following LEDs serve as visual output devices for the evaluation board: VBAT FS_B Figure 6. LED locations Table 3. LED locations LED ID Description VBAT Green LED, indicates when main/battery supply is connected Green LED, indicates when +5.0 V supply is connected... -
Page 11: Jumper Definitions
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 4.6 Jumper definitions Figure 7 illustrates the evaluation board jumper locations. Table 4 explains the function of each position. Bold fonts in the jumper position column indicate the default settings for use with the FRDM-KL25Z. -
Page 12: Input Signal Definitions
Clock for the SPI 4.8 Output signal definitions The FRDM-HB2000FEVM uses the following output signals to drive a load such as a brushed DC motor. The board provides an analog output for real time load current monitoring. This signal allows closed-loop control of the load. -
Page 13: Test Point Definitions
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Table 6. Output signal definitions Output name Description OUT1 Output 1 of H-Bridge OUT2 Output 2 of H-Bridge FS_B Open drain Active Low status flag output to indicate fault Current mirror output for real time load current monitoring... -
Page 14: Screw Terminal Connections
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Test point name Signal name Description VPWR VPWR System voltage VDDQ1 VDDQ VDDQ digital output supply voltage FSB1 Fault status monitoring pin VDD1 supply for the part CS_B1 CS_B Chip select bar SCLK1 SCLK... -
Page 15: Frdm-Kl25Z Freedom Spi Dongle
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board FRDM-KL25Z Freedom SPI dongle The NXP Freedom development platform is a set of software and hardware tools supporting evaluation and development. It is ideal for rapid prototyping of microcontroller- based applications. The NXP Freedom KL25Z hardware, FRDM-KL25Z, is a simple, yet sophisticated design featuring a Kinetis L series microcontroller, the industry's first ®... - Page 16 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board The FRDM-HB2000FEVM connects to the FRDM-KL25Z using the four dual row ™ Arduino R3 connectors on the bottom of the board (see Table Figure 11 Figure 12). Figure 11. Connecting the FRDM-HB2000FEVM to the FRDM-KL25Z KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers.
- Page 17 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Figure 12. FRDM-KL25Z to FRDM-HB2000FEVM connections Table 9. FRDM-HB2000FEVM to FRDM-KL25Z connections FRDM-HB2000FEVM FRDM-KL25Z Pin hardware name Description Header Header FRDM-HB2000FEVM FRDM-KL25Z PTC7 No Connection PTA1 No Connection PTC0 No Connection PTA2 No Connection...
- Page 18 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board FRDM-HB2000FEVM FRDM-KL25Z Pin hardware name Description Header Header FRDM-HB2000FEVM FRDM-KL25Z PTA13 No Connection DATA1/IN2 PTC13 IN2 signal for the H- Bridge PTD5 No Connection FS_B PTC16 Fault status pin to report fault CS_B PTD0...
- Page 19 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board FRDM-HB2000FEVM FRDM-KL25Z Pin hardware name Description Header Header FRDM-HB2000FEVM FRDM-KL25Z PTE2 No Connection P5V_USB No Connection PTE3 No Connection Ground PTE4 No Connection No Connection PTE5 No Connection VDD_REG P5-9V_VIN 5.0 V logic input...
-
Page 20: Installing The Software And Setting Up The Hardware
FRDM-KL25Z board or a function generator. Caution When using the FRDM-HB2000FEVM, make sure that the maximum motor supply voltage (VPWR) stays within the 5.0 V to 40 V range. Operating outside this range may cause damage to the board. -
Page 21: Step-By-Step Instructions For Setting Up The Hardware For Use With A Function Generator
6.1.2 Step-by-step instructions for setting up the hardware for use with a function generator This section describes how to configure the FRDM-HB2000FEVM for use with a function generator. The same connections apply if the board is connected to a microcontroller instead of a function generator. See the board description Section 4.4... - Page 22 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board and click Download. 1. Go to www.nxp.com/SPIGen 2. When the SPIGEN: SPI Generator (SPIGen) Software page appears, go to the Device Drivers section and click Download associated with the description of the selected environment. A wizard guides the user through the process.
- Page 23 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board If the pre-programmed code on FRDM-KL25Z is accidentally erased, download "UsbSpiDongleKL25Z_SPIDrive_v512.srec" from the following link: www.nxp.com/ Usb-Spi-Dongle-firmware-KL25Z-HB2000-1. 6. Reading all the SPI Registers displays the following default status. KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers.
-
Page 24: Spi Control
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 6.2.1 SPI control Figure 15. SPI control description Table 10. SPI control description Name Description Click the read button on top of each register to read the Read content of each register. Click individual bits of any register and then press the Write corresponding write button to write into the register. -
Page 25: Parallel Control
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 6.2.2 Parallel control Figure 16. Parallel control description Direction: • Forward: Current flowing through OUT1 to OUT2 • Reverse: Current flowing through OUT2 to OUT1 Recirculation: • High-side: Freewheel-High (both high-side FETs turned on) during PWMing •... - Page 26 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Stop: • Press Stop to deactivate the outputs Current Feedback: • Shows current through the high-side FET using the current recopy feature Status Fault: • Shows any fault condition in Sleep mode Table 11. Logic behind direction control with High-side versus Low-side recirculation...
-
Page 27: Schematic
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Schematic Figure 17. FRDM-HB2000FEVM schematic KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 5 July 2016 27 / 36... -
Page 28: Board Layout
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Board layout Figure 18. Silkscreen KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 5 July 2016 28 / 36... -
Page 29: Bill Of Materials
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Bill of materials Table 12. Bill of materials Item Schematic Value Description Part number Assy opt label Active components IC DRV H-BRIDGE MOTOR 3.0 A 5.0 to 28 V MC33HB2000FK SOIC32 – NXP IC VREG 5.0 V 1.0 A 5.0 to 18 V D2PAK – ON... -
Page 30: Accessory Item Bill Of Materials
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Item Schematic Value Description Part number Assy opt label IN1, TEST POINT BLACK 40 MIL DRILL 180 MIL 5001 GND1,IN2, TH 109L GND2, GND3, VPWR, VDDQ, VDD, SCLK, MOSI, MISO, GND, FS_B, ENBL, DIS, CS_B... -
Page 31: References
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 11 References Following are URLs where you can obtain information on related NXP products and application solutions: NXP.com support pages Description FRDM-HB2000FEVM Tool summary page http://www.nxp.com/FRDM- HB2000FEVM MC33HB2000 Product summary page http://www.nxp.com/MC33HB2000 FRDM-KL25Z Tool summary page http://www.nxp.com/FRDM-KL25Z... -
Page 32: Revision History
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board 12 Revision history Revision Date Description of changes 7/2016 Initial release 13 Contact information Visit http://www.nxp.com/support for a list of phone numbers within your region. Visit http://www.nxp.com/warranty to submit a request for tool warranty. -
Page 33: Legal Information
NXP does not modifications or additions. NXP Semiconductors does not give any convey any license under its patent rights nor the rights of others. NXP sells... - Page 34 KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Tables Tab. 1. Device features ..........6 Tab. 9. FRDM-HB2000FEVM FRDM-KL25Z Tab. 2. Board description ..........9 connections ............. 17 Tab. 3. LED locations ..........10 Tab. 10. SPI control description ........24 Tab. 4.
- Page 35 Fig. 10. FRDM-KL25Z ..........15 Fig. 18. Silkscreen ............28 Fig. 11. Connecting the FRDM-HB2000FEVM to the FRDM-KL25Z ..........16 KTFRDMHB2000FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev.
-
Page 36: Table Of Contents
KTFRDMHB2000FEVMUG NXP Semiconductors FRDM-HB2000FEVM evaluation board Contents FRDM-HB2000FEVM ..........1 Important notice ..........2 Getting started ............ 3 Kit contents/packing list ........3 Jump start ............3 Required equipment .......... 3 System requirements .........3 Getting to know the hardware ......4 Board overview ..........4 Board features ........... - Page 37 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: FRDM-HB2000FEVM...
