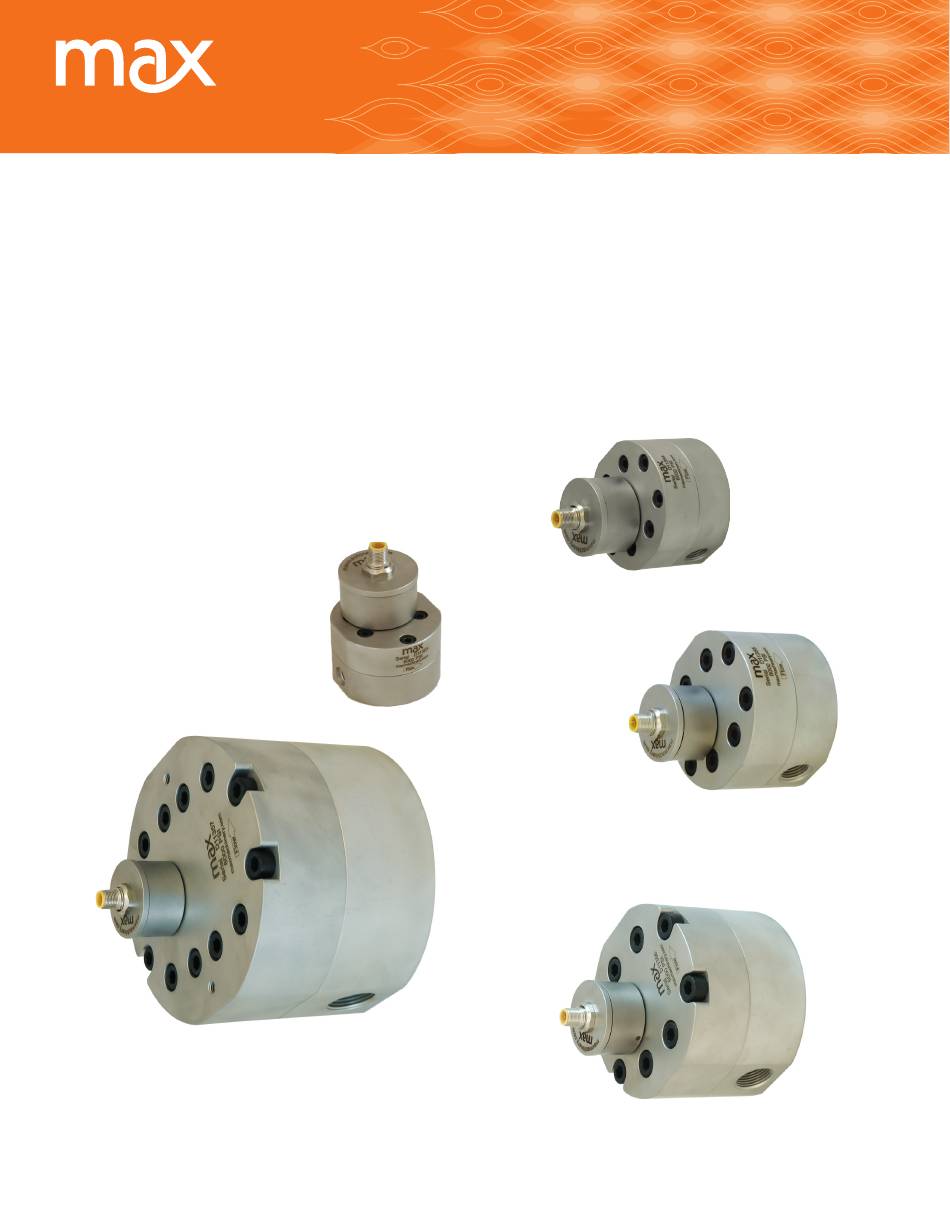

- Page 1 G-Series Positive Displacement - Gear Flow Meters Manual G004, G015, G045, G105, G240 G004HZ, G015HZ, G045HZ, G105HZ, G240HZ Model G015 Model G004 Model G045 Model G240 Model G105...
-
Page 2: Table Of Contents
DO NOT ATTEMPT TO INSTALL OR START FLOW METER WITHOUT READING ENTIRE MANUAL Max Machinery, Inc. (MMI) reserves the right to make changes to the product in this Instruction Manual to improve performance, reliability, or manufacturability. Consequently, contact MMI for the latest available specifications and performance data. Although every effort has been made to ensure accuracy of the information contained in this Instruction Manual, MMI assumes no responsibility for inadvertent errors. -
Page 3: Before You Install
Before You Install Thank you for choosing to install a Max Machinery precision flow meter. To ensure the best experience please take a moment to read through this manual prior to installation. When you purchased this meter a flow engineer helped determine the best meter for you based on many of the factors that will be reviewed on the following pages. -
Page 4: Meter General Description
Solid state sensors are used to detect the position of a driven magnet inside the Max Flow Meter. Changes in position are tracked by a microprocessor, which generates an output frequency proportional to the flow rate. Advanced signal processing provides both fine angular resolution (0.36 degrees rotation per pulse) and rapid response (output updated... -
Page 5: Meter Specifications
(1) Continuous Short Circuit is not recommended. The output current should not exceed 10 mA (2) Events are seen as output transitions 1 ms after they occur (3) Temperature of metered fluid will affect transmitter temperature, see graph Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A... -
Page 6: Transmitter Specifications Temp
Transmitter Temperature graph Model 29X Transmitter Series Standard High Ultra High temperature temperature 2 part pickup 2 part pickup Process Temperature °C Available Designs G004 Standard G004 2-Part Pickup G004 Ex-Proof Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A... -
Page 7: Installation
Filtration: Clearances between the gears and internal wall are typically 0.001” to 0.002”. Any dirt present in the system can jam or damage the unit. A 10 micron filter (such as a Max 381 Series stainless steel unit) is generally recommended, although materials with very high viscosities may require a coarser filter. -
Page 8: Do's & Don'ts
VALVE 2 FILTER VALVE 3 BYPASS FLOW METER Horizontal Two-Way Flow VALVE 3 BYPASS FLOW FLOW METER VALVE 1 VALVE 2 FILTER FILTER FILTER VALVE 3 VALVE 1 FLOW BYPASS Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A... -
Page 9: Electrical Installation - Wiring
Turck connector model: The connector is sealed to the lid at the factory and is ready for use. NPT Model: To ensure a moisture-tight seal, apply appropriate sealant to the threads at installation. Max Machinery, Inc. G-Series User Manual © Copyright 2018... -
Page 10: Electrical Installation - Wiring
To prevent this from occuring please consider installing a 10k pull down resistor between Common and Signal Output (-). Max Machinery, Inc. G-Series User Manual © Copyright 2018... -
Page 11: Pressure Drop Charts
Pressure Drop Charts Model G004 Flow Meter Model G015 Flow Meter Model G045 Flow Meter Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A... - Page 12 Pressure Drop Charts - continued Model G105 Flow Meter Model G240 Flow Meter Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A...
-
Page 13: Optional Heater Block Details
The G-Series is not designed for user repair and all such work should be done at the factory or under the direct supervision of the Max Technical Service Department. Unauthorized repair work may damage the meter and will void the product warranty. -
Page 14: Part Number Matrix
** Receiver portion of 2 part transmitters are not rated Ex-Proof, consult factory *** Teflon not used above 90°C for this high pressure rated product. † Not available for hazardous location use. (Exceeds 130°C temp. limit.) Model G045 Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A... - Page 15 * See temp chart ** Receiver portion of 2 part transmitters are not rated Ex-Proof, consult factory *** Teflon not used above 90°C for this high pressure rated product. Model G045HZ Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A...
-
Page 16: Limited Warranty
Limited Warranty Max Machinery, Inc. (“Seller”) warrants to the original purchaser (“Purchaser”) only, that all equipment or products purchased from Seller by Purchaser shall be free from defects in materials and workmanship in normal service for a period of twelve (12) months from the date of shipment. Seller’s obligation under this limited warranty shall be limited to replacing or repairing the part or parts, or, at Seller’s sole discretion, the products, which prove defective in material or... - Page 17 ECONOMIC EFFECT THAT IS AS NEAR AS POSSIBLE TO THAT PROVIDED BY THE ORIGINAL PROVISION, AND (B) THE LEGALITY, VALIDITY AND ENFORCEABILITY OF THE REMAINING PROVISIONS HEREIN SHALL NOT BE AFFECTED THEREBY. Max Machinery, Inc. G-Series User Manual © Copyright 2018 Rev2018A...
