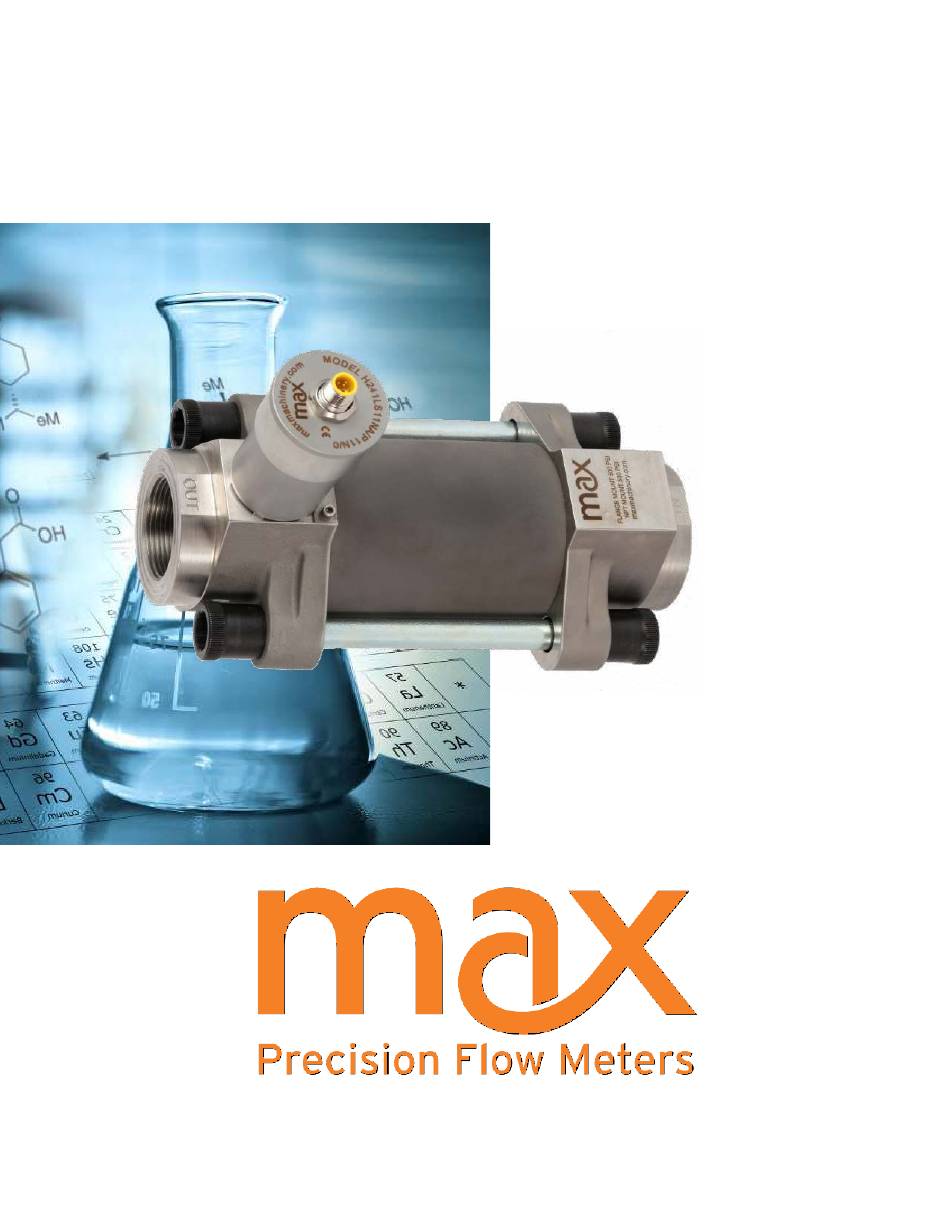

- Page 1 H-Series User Manual Positive Displacement Helical Flow Meters H241 H242...
- Page 2 Never steam clean the meter. Damage will occur. (Bypass or remove the meter if necessary). Do not run water or aqueous solutions not approved by Max through your flow meter. Damage will occur. Do not disassemble the meter. Damage may occur. No serviceable parts inside.
-
Page 3: Table Of Contents
Troubleshooting and Service Request ...........24 Additional Information Available .............24 Max Machinery, Inc. (MMI) reserves the right to change product specifications without notice to improve performance, reliability, or manufacturability. MMI shall not be held liable for operational, technical, or editorial errors/omissions. Visit our web site for the latest version of this user manual. -
Page 4: How It Works

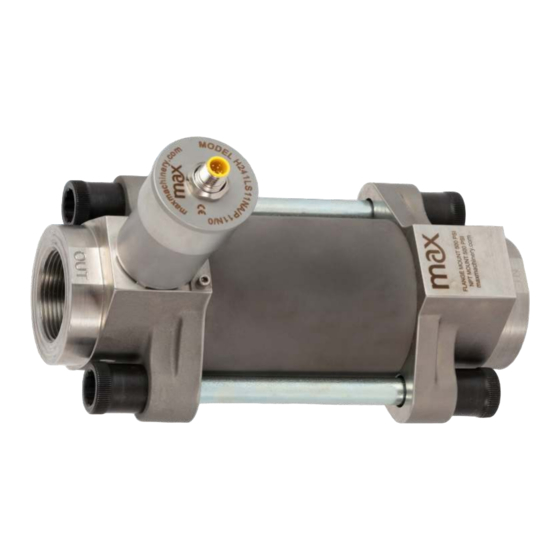

How It Works Max H-Series Precision Flow Meters are positive displacement helical meters that are able to operate over a wide range of flow rates and fluid viscosities. High accuracy measurement is achieved through precision machined helical rotors that move proportional to the flow. High resolution outputs are produced by measuring the direction and speed of the helical rotors and converting the signals to analog or frequency outputs. -
Page 5: Installation Mechanical
Installation - Mechanical Your Max Flow Meter has been configured at the factory to be used out of the box based on your submitted application data. Plumb it, wire it, and use it. The following section will provide instructions on how to properly plumb your Max Flow Meter in the liquid lines of your application. - Page 6 ANSI Flanges: Using H-Series meters at pressures greater than 500 psi (35 bar) requires flanges. See the specifications and bolt torque table below. Max bolt kits are available for flange installations. Always use process fluid compatible lubricant on the o-ring to attach the fitting to the meter.
- Page 7 Purging lines with compressed air or steam are typical cleaning methods. Valve #1 Do not use compressed air or steam on the Max flow meter, damage will occur. RADIATE HEAT HERE High Temperatures: Orient your meter so the transmitter is to the side or below to minimize heat transfer by convection from the flow meter to the transmitter.
-
Page 8: Mechanical Operation
Mechanical - Operation Determine that the following parameters of your flow metering system are within the specifications for the specific meter being used: Maximum System Pressure (Specifications) Differential Pressure across meter (Pressure Drop Curves) Maximum Flow Rate (Pressure Drop Curves) Metered Fluid Temperature (Sales specification, transmitter specifications page 9) If the metered fluid is greater than 28°C (80°F) over ambient, see the “High Temperature Start Up”... -
Page 9: Installation Electrical
Plumb it, wire it, and use it. The following section describes how to properly wire your Max Flow Meter into your application electronics. There are various combinations of transmitter components and outputs. These options include:... -
Page 10: Electrical Quick Start
Start-up Instructions - Adjustments to Factory Settings Required If you need to make adjustments to your Max Flow Meter prior to use, you will need to purchase and use the Max Machinery Interface Software Kit (SFT-KIT-001). This will allow you to change the flow meter output signal frequency or analog range to meet your application equipment needs. - Page 11 Electrical Installation Instructions - 5-pin Turck Connectors Applies only to transmitters with 5-pin, M12 style connectors. For hazardous location transmitters with 1/2 inch conduit connections, please refer to the EXInstall sheet. Frequency Output Transmitters (PN ending N/-) Turck® Connector Mating Cable Pin # Wire Color Label...
- Page 12 Electrical - Operating Information Max Flow Meters require a fully isolated power supply to operate. Refer to the Max Machinery Interface Software Kit Manual for instructions on how to change the flow meter output signal frequency or analog range to meet your application’s equipment needs.
- Page 13 LED Rotation/Output Indicators All Max transmitters incorporate an alternating red/green or blue/green LED to indicate magnet rotation in the meter. The color changes each 1/2 revolution of the meter. Additionally, when no flow signal is present, a rapidly flashing red...
-
Page 14: Field Compensation Of Transmitter
An alternating blue/green LED indicates that the circuit is detecting a magnet and provides an output signal. A steady or flashing red LED indicates a problem with the transmitter PCA. Contact Max Machinery to have your flow meter refurbished. - Page 15 The flow meter being compensated must not be used for system flow rate feedback control during this process. The transmitter output is disabled during the compensation routine. If you are unable to run a stable flow in the field, send your meter in to Max Machinery for calibration. The compensation routine is as follows: 1.
-
Page 16: Led Functions
5 revolutions at the stated flow rates. If compensation fails, restart the compensation process. When using the Interface Software Kit, follow instructions provided to correct errors prior to attempting compensation again. If problems persist, contact Max Machinery at 707-433-2662 or at www.maxmachinery.com. -
Page 17: Specifications
Optional: Teflon®, Perfluoroelastmer FREQUENCY TRANSMITTER Output Signal Standard: 5 Vdc, single phase Optional: Quadrature 5 Vdc, two phase Current sinking, 20 mA max., single phase K-Factor Single Phase: 15,000 pulses/liter Two Phase: 30,000 pulses/liter, 4x decoded (7,500 pulses/liter/phase, 1x decoded) - Page 18 Optional: Teflon®, Perfluoroelastmer FREQUENCY TRANSMITTER Output Signal Standard: 5 Vdc, single phase Optional: Quadrature 5 Vdc, two phase Current sinking, 20 mA max., single phase K-Factor Single Phase: 5,000 pulses/liter Two Phase: 10,000 pulses/liter, 4x decoded (2,500 pulses/liter/phase, 1x decoded)
-
Page 19: Dimensions
Dimensions H241LS SPECIFICATIONS INDUSTRIAL HOUSING EX-PROOF HOUSING SIDE VIEW SIDE VIEW INDUSTRIAL HOUSING EX-PROOF HOUSING END VIEW END VIEW H-Series User Manual Rev2021A 16... - Page 20 Dimensions H241MS SPECIFICATIONS INDUSTRIAL HOUSING EX-PROOF HOUSING SIDE VIEW SIDE VIEW INDUSTRIAL HOUSING EX-PROOF HOUSING END VIEW END VIEW H-Series User Manual Rev2021A 17...
- Page 21 Dimensions H242LS SPECIFICATIONS INDUSTRIAL HOUSING EX-PROOF HOUSING SIDE VIEW SIDE VIEW EX-PROOF HOUSING TOP VIEW INDUSTRIAL HOUSING EX-PROOF HOUSING END VIEW END VIEW BOTTOM VIEW H-Series User Manual Rev2021A 18...
- Page 22 Dimensions H242MS SPECIFICATIONS INDUSTRIAL HOUSING EX-PROOF HOUSING SIDE VIEW SIDE VIEW EX-PROOF HOUSING TOP VIEW INDUSTRIAL HOUSING EX-PROOF HOUSING END VIEW END VIEW H-Series User Manual Rev2021A 19...
- Page 23 Dimensions REMOTE PCA ENCLOSURE SPECIFICATIONS REMOTE PCA ENCLOSURE FOR HIGH TEMPERATURE TRANSMITTERS (Not Shown: Industrial 2 meter interconnect cable included, Ex-Proof user supplied interconnect cable required) H-Series User Manual Rev2021A 20...
-
Page 24: Charts
Charts H241 Pressure Drop Graph H242 Pressure Drop Graph H-Series User Manual Rev2021A 21... -
Page 25: Part Matrix
Helical Rotor Type, H-Series Transmitter Selections Flow Meter Selections Model # Non-Standard Options Bi-Directional Cal: BID 0 Transmitter Type Max Flow Range Output Type 189 Liters/Min 4-20mA Output - Powered by 24 Vdc H241 189 Liters/Min 4-20mA Output - Powered by 12 Vdc... -
Page 26: Available Accessories
Available Accessories Accessories to support your system and simplify your installation and maintenance are available direct from Max. Request yours when you order your flow meter. See the website for information and options. Interface Software Kit Part # Description SFT-KIT-001 USB drive transmitter programming software and serial cable. -
Page 27: Troubleshooting And Service Request
Additional information about our products, including STEP files and Sample Calibration sheets, may be found on our website at https://www.maxmachinery.com/downloads/. MMI products are covered under our standard manufacturer’s warranty. Details may be found at https://www.maxmachinery.com/warranty/. Max Machinery, Inc., 33A Healdsburg Avenue, Healdsburg, CA 95448 USA 707.433.2662 | www.maxmachinery.com H-Series User Manual Rev2021A 24...
