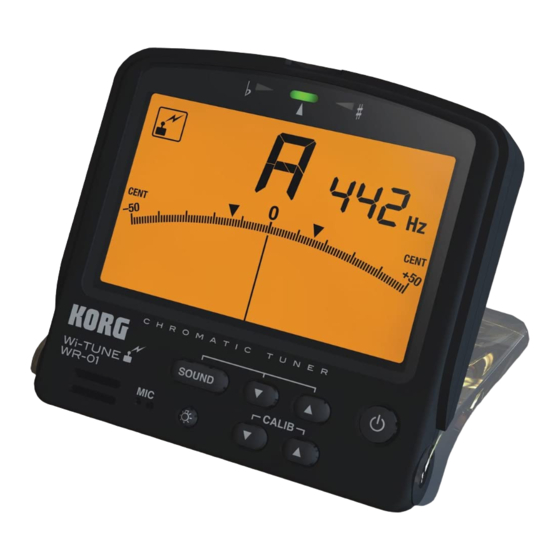

Korg Wi-Tune WR-01 Owner's Manual

Korg Wi-Tune WR-01 Owner's Manual

Wireless tuner

Advertisement

Quick Links

Precautions
Location
Using the unit in the following locations can result in a malfunction.
• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields
Power supply
Be sure to turn the power switch to OFF when the unit is not in use.
Remove the battery in order to prevent it from leaking when the unit
is not in use for extended periods.
Interference with other electrical devices
Radios and televisions placed nearby may experience reception
interference. Operate this unit at a suitable distance from radios and
televisions.
Handling
To avoid breakage, do not apply excessive force to the switches or
controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not
use liquid cleaners such as benzene or thinner, or cleaning
compounds or flammable polishes.
Keep this manual
After reading this manual, please keep it for later reference.
Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equipment. If liquid
gets into the equipment, it could cause a breakdown, fire, or
electrical shock. Be careful not to let metal objects get into the
equipment.
2
CAUTION
Risk of Explosion if Battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions.
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Unauthorized changes or modification to this system can void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Complies with Canadian ICES-003 Class B.
Conforme au Reglement Canadian NMB-003 classe B.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wi-Tune WR-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Korg Wi-Tune WR-01

  • Page 1 Precautions CAUTION Risk of Explosion if Battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Location Using the unit in the following locations can result in a malfunction. THE FCC REGULATION WARNING (for USA) •...
  • Page 2 If you have purchased this product via the internet, Conformance Statement through mail order, and/or via a telephone sale, you must verify Korg Inc. hereby declares that the product meets that this product is intended to be used in the country in which the requirements of Directive 1999/5/EC.
  • Page 3: Part Names

    Thank you for purchasing the Korg Wi-Tune WR-01 Wireless Tuner. To help you get the most out of your new tuner, please read this manual carefully. Part names Tuning guide indicator ID indicator Wireless indicator Microphone indicator WR-01 low battery indicator...
  • Page 4: Installing Batteries

    Installing batteries in the WR-01 Power LED 1. Gently press down and slide the battery case cover on the rear panel of the WR-01 [POWER] button to remove it. 2. Properly orient the batteries and insert them into the unit. WR-TX (Transmitter) Installing batteries Please don’t charge an alkaline battery.
  • Page 5 1. Remove the clip that’s attached to the WR- When you attach the clip do not touch the TX, then gently press down and slide the connectors on the WR-TX. battery case cover on the near panel of the Do not pull the clip by grasping the WR-TX to remove it.
  • Page 6 Attaching the WR-TX to your The attachment figure of Strap musical instrument The Wi-Tune measures the pitch of a musical instrument by sensing vibrations from the instrument. These vibrations are picked up by the WR-TX, and wirelessly transmitted to the WR-01.
  • Page 7 Applying excessive force to the WR-TX or The figure of the example of the clip may cause damage. attachment position of Clip A WR-TX attachment position examples The figure of the example of the Using the WR-01 stand attachment position of Clip A The figure of the example of the attachment position of Clip B...
  • Page 8 Setting the ID after replacing 3. Turn on the power to the WR-TX and WR-01. the WR-TX The ID setting data is shared by the WR-01 and WR-TX. This is done to prevent signal scramble during wireless communication. An ID was programmed into the WR-01 and WR-TX supplied in this Wi-Tune package before they shipped from the factory.
  • Page 9: Turning The Power On And Off

    same location, the tuning meter may not Backlight respond to the proper instrument, or an incorrect note name may be displayed. In 1. Press the [BACK LIGHT] button. The LCD such cases, resetting the ID will restore backlight will turn on. communication between the WR-TX and Pressing the [BACK LIGHT] button will turn the WR-01.
  • Page 10: Meter Mode

    power to the WR-TX is turned off, the 3. Play a single note again and tune your batteries on the WR-TX are exhausted, or instrument so that the tuning guide the WR-TX is moved outside the range of indicator (the center of the meter) will turn communication.
  • Page 11 the note name C#, then fine-tune the 3. Tune your instrument while referring to the instrument so that the meter needle will oscillator sound at the reference pitch point the down arrow ▼ (–13.7 cents) on the output from the receiver. left side of the meter.
  • Page 12: Specifications

    Specifications Temperament: Equal temperament Measurement range: A0 (27.50Hz) – C8 (4186.01Hz) Reference pitch: C4 (261.63Hz) – C5 (523.25Hz); One octave Tuning mode: Meter mode (AUTO); Sound-out mode (MANUAL) Calibration range: A4=410 – 480Hz (1Hz steps) Measurement precision: Within ±1 cent Sound precision: Within ±1.5 cents Wireless:...
