KORG products are manufactured under strict specifications and voltages required by each
country. These products are warranted by the KORG distributor only in each country. Any
KORG product not sold with a warranty card or carrying a serial number disqualifies the
product sold from the manufacturer's/distributor's warranty and liability. This requirement is
for your own protection and safety.
KORG
KORG INC.
15 – 12, Shimotakaido 1-chome, Suginami-ku Tokyo, Japan.
© KORG INC.

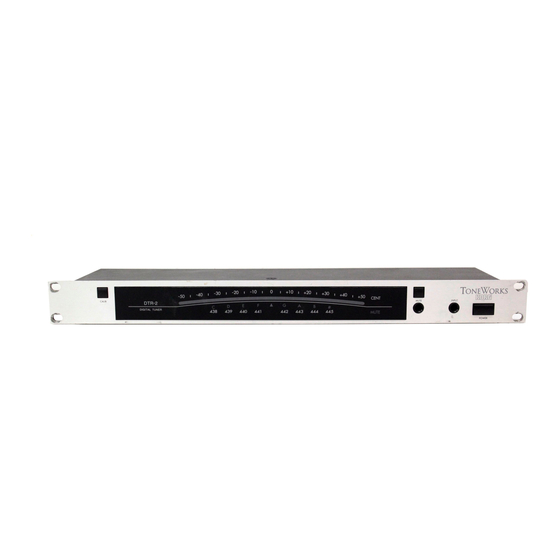

DIGITAL TUNER
DTR-2
Owner's Manual
T
ONE
HYPERFORMANCE RRODUCTS
NOTICE
W
ORKS
KORG
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Korg TONEWORKS DTR-2
Summary of Contents for Korg TONEWORKS DTR-2
- Page 1 These products are warranted by the KORG distributor only in each country. Any KORG product not sold with a warranty card or carrying a serial number disqualifies the product sold from the manufacturer’s/distributor’s warranty and liability. This requirement is for your own protection and safety.
-
Page 2: Specifications / Options
SPECIFICATIONS / OPTIONS Scale: 12-tone temperament Meter: CENT indication Measuring range: A0 – C8 (27.5 Hz – 4186.0 Hz) Measuring system: ± 1 CENT Range of calibration: ◦ Manual calibration: 438 Hz – 445 Hz (1 Hz steps) ◦... -
Page 3: Front Panel And Rear Panel
FRONT PANEL AND REAR PANEL 1) POWER switch 7) NOTE LED Indicates the pitch name closest to the input 2) INPUT jack sound by lighting the LED and # during tuning. Jack for connecting the instrument to be tuned. Indicates the set reference pitch with a blinking However when a plug is connected to this jack, LED during calibrating (6 CALIBRATION the rear panel INPUT jack (10) cannot be used. -
Page 4: Tuning Procedure
TUNING PROCEDURE Connect an instrument to the INPUT jack (2 or 10). However when the plug is connected to the front panel, the rear panel INPUT jack cannot be used. When tuning by listening to the sound, connect an amplifier to the OUTPUT jack (11) of the DTR-2 Turn the POWER switch (1) on and set the reference pitch according to the “CALIBRATION PROCEDURE”. - Page 5 → 438 → 439 → 440 → 441 → 442 → 443 → 444 → 445 → ↑ ↓ ←--- ←--- ←--- ←--- ←--- ←--- ←--- ←--- ←--- ←--- ←--- ←--- Note: If the CALIB key is pressed for more than one second, the automatic reference calibration starts functioning.
