4120(W) / 4130(W)

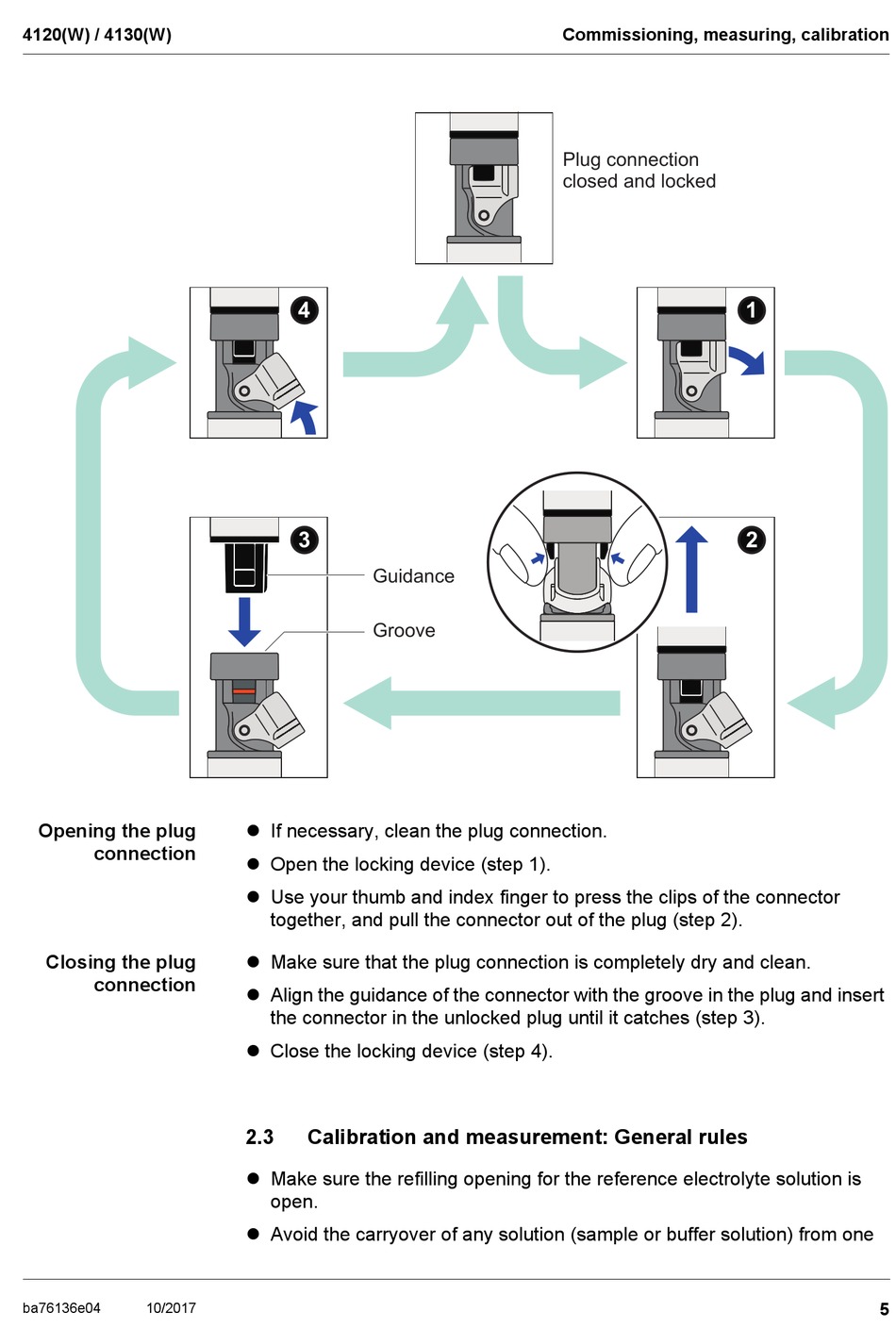

Opening the plug
connection
Closing the plug
connection
ba76136e04 10/2017
4
3
Guidance
Groove
 If necessary, clean the plug connection.
 Open the locking device (step 1).
 Use your thumb and index finger to press the clips of the connector
together, and pull the connector out of the plug (step 2).
 Make sure that the plug connection is completely dry and clean.
 Align the guidance of the connector with the groove in the plug and insert
the connector in the unlocked plug until it catches (step 3).
 Close the locking device (step 4).
2.3 Calibration and measurement: General rules
 Make sure the refilling opening for the reference electrolyte solution is
open.
 Avoid the carryover of any solution (sample or buffer solution) from one
Commissioning, measuring, calibration
Plug connection
closed and locked
1
2
5
