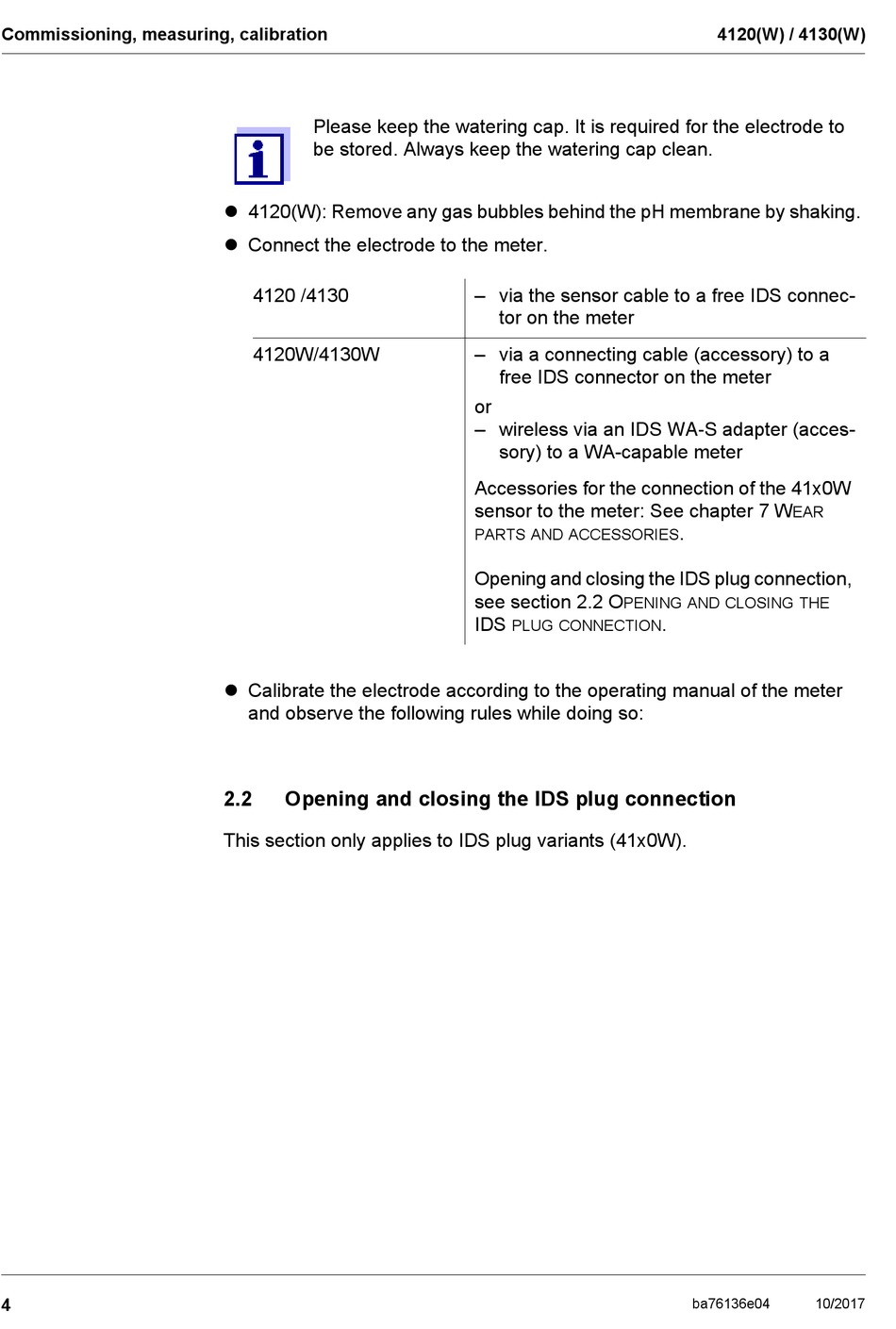

YSI MultiLab IDS 4120 Operation Manual page 4

Commissioning, measuring, calibration
4
Please keep the watering cap. It is required for the electrode to
be stored. Always keep the watering cap clean.
 4120(W): Remove any gas bubbles behind the pH membrane by shaking.
 Connect the electrode to the meter.
4120 /4130
4120W/4130W
 Calibrate the electrode according to the operating manual of the meter
and observe the following rules while doing so:
2.2 Opening and closing the IDS plug connection
This section only applies to IDS plug variants (41x0W).
– via the sensor cable to a free IDS connec-
tor on the meter
– via a connecting cable (accessory) to a
free IDS connector on the meter
or
– wireless via an IDS WA-S adapter (acces-
sory) to a WA-capable meter
Accessories for the connection of the 41x0W
sensor to the meter: See chapter 7 W
PARTS AND ACCESSORIES
Opening and closing the IDS plug connection,
see section 2.2 O
PENING AND CLOSING THE
IDS
PLUG CONNECTION
4120(W) / 4130(W)
