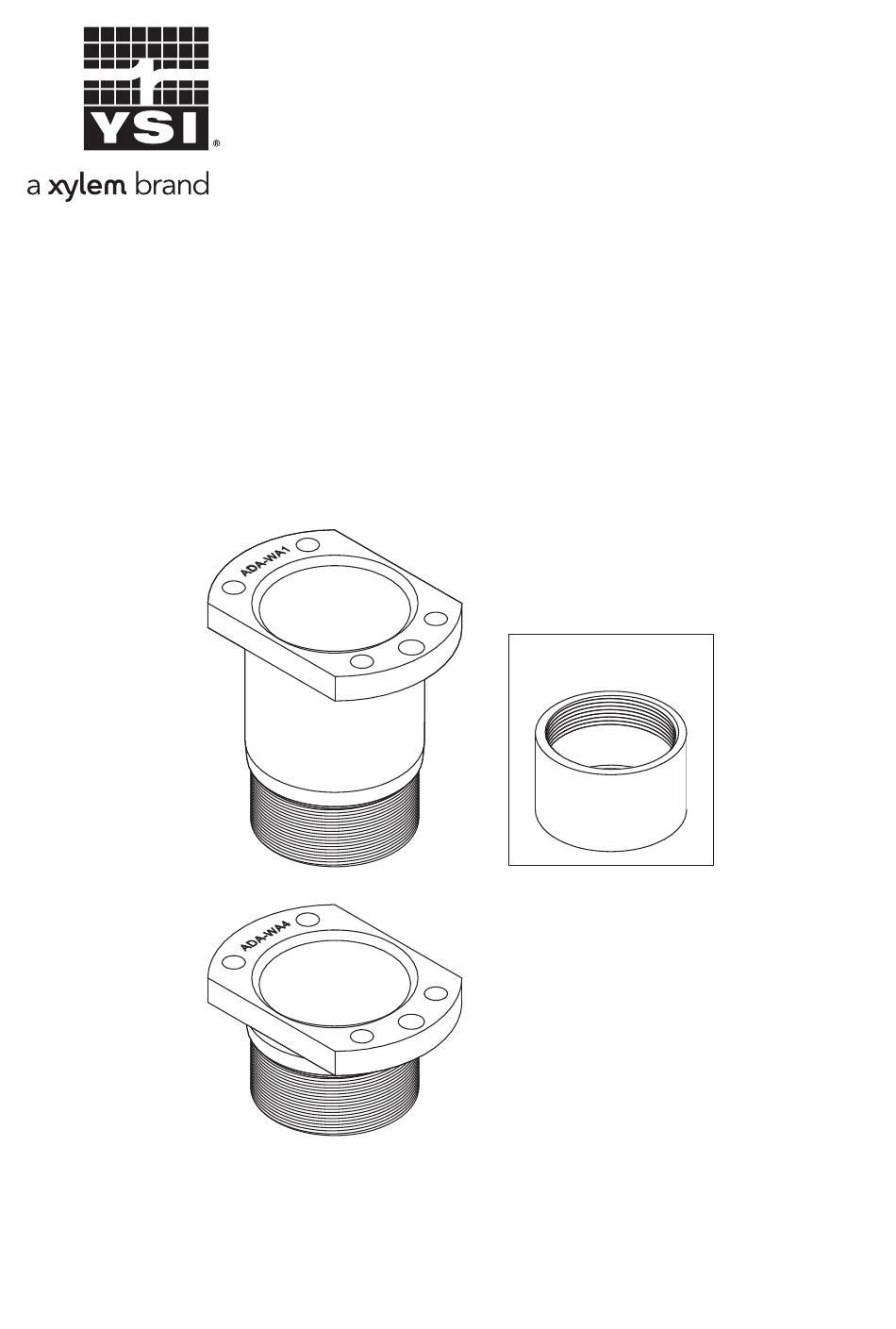

- Page 1 Installation instructions ADA-WA 1 ADA-WA 4 Fixing ring for SensoLyt Sensor adapter for installation in the retractable armatures WA700/2 and WA 700/10 ba76071e01 02/2012...
- Page 2 (for example pH combination electrode SensoLyt SEA-HP, order no. 109 118). For more information, refer to the YSI catalog or the Internet. YSI assumes no liability for damages caused by using different electrodes. ba76071e01...
-
Page 3: General Installation Recommendations
ADA-WA 1; ADA-WA 4 Installation recommendations Installation recommendations General installation recommendations Basic types of installation 45 ° 45 ° Flow Minimum distance: 80 mm direction The optimum installation location must be individually deter- mined for the type of sensor and the application. - Page 4 Overview of the recommended installation locations Note Always follow the I chapter of the respective sensor operating manual. NSTALLATION Sensor type Installation Advantages (+) / Conclusion / Comments location Disadvantages (-) (see diagram on page 3) TriOxmatic 700 IQ, + Good flow TriOxmatic 701 IQ, + Low susceptibility to contamina- TriOxmatic 702 IQ...
- Page 5 Overview of the recommended installation locations (continued) Sensor type Installation Advantages (+) / Conclusion / Comments location Disadvantages (-) (see diagram on page 3) VisoTurb 700 IQ, + Optimum flow of the sapphire disc Optimum installation location ViSolid 700 IQ so there is no capture of air bub- for measuring media without bles or large particles in front of...
- Page 6 Installation recommendations ADA-WA 1; ADA-WA 4 Special installation recommendations: VisoTurb 700 IQ and ViSolid 700 IQ Note Please also observe the general basic information in the chapter of the sensor operating manual. There NSTALLATION you will find important notes on optimizing the installation.
- Page 7 ADA-WA 1; ADA-WA 4 Installation recommendations The marking on the sensor shaft points towards the pipeline. On page 9 you will find a description of how to correctly align the sensor with the aid of a marking aid on the sensor plug head connector.
- Page 8 Installation recommendations ADA-WA 1; ADA-WA 4 Other containers WA 700/... ADA-WA1 Large ballcock turned ESS/WA... 10 cm No interfering surfaces in this area! Installation angle 90 ° The distance between the mounting opening and the wall opposite should be as great as possible.
-
Page 9: Installation
ADA-WA 1; ADA-WA 4 Installation Installation Note Please also observe the I chapter of the sensor NSTALLATION operating manual as well as the operating manual of the retractable armature. VisoTurb 700 IQ, Connect the SACIQ ViSolid 700 IQ: sensor connection cable... - Page 10 * The receiving tube for installation with the ADA-WA 1 is included in the scope of delivery of the retractable armature. For installation with the ADA-WA 4, use the special (longer) receiving tube provided with the adapter in order to ensure the correct length compensation.
-
Page 11: Technical Data
ADA-WA 1; ADA-WA 4 Technical data Technical data Operating pressure Pressure difference Max. +10 (10 bar overpressure) inner outer Operating 0 ... +60 °C (32 ... 140 °F), frost-free temperature Total length ADA-WA 1 69 mm ADA-WA 4 35 mm...
