B. Blower (Optional)
Tools Required: #2 Phillips head screwdriver
1. Locate bolts supplied with the blower.
2. Align holes in mounting flange of blower with bolt holes
in appliance. Blower should be positioned at bottom of
rear outer skin as shown in Figure 17.1
3. Re-insert and tighten bolts, securing blower onto outer
wall of appliance.
4. Place the bracket containing the snap disc and magnet
under the bottom left rear corner.
See Owner's Manual for detailed operating instructions for
the blower and snap disc.
CAUTION
Shock Risk.
•
Do NOT remove grounding prong from plug.
•
Route cord away from appliance.
•
Do NOT route cord under or in front of
appliance.
•
Plug directly into properly grounded 3 prong
receptacle.

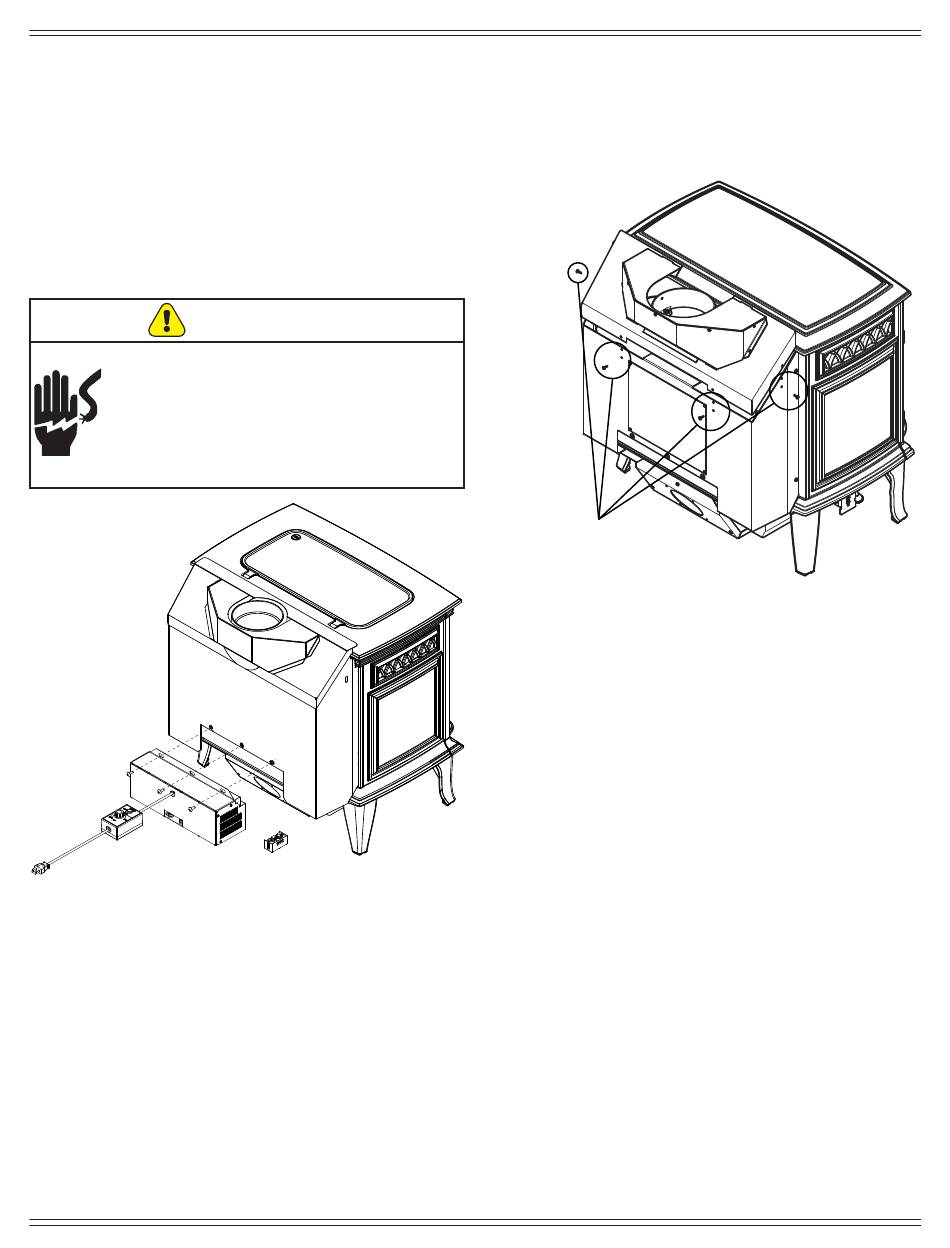

Figure 17.1
August 13, 2018
The convection air top assembly can be raised to redirect
air over the top of the appliance by removing 4 screws
and lifting assembly to align with upper mount holes and
reassemble (Figure 17.2).
NOTE: This option is not available for horizontal installs.
Mounting Holes
and Screws
Figure 17.2
7062-197G
Explorer I
17
