Explorer I
C. Optional Fire Screen
An optional fire screen is available for the Explorer III.
Optional Fire Screen Part SCR-7061 may be used ONLY in
U.S. residential installations. Follow all safety warnings to
prevent any hazards.
WARNING
Fire Risk.
•
Do not leave the fire unattended when the
door is unlatched or when using the fire
screen.
•
Unstable firewood could fall out of the
firebox creating a fire hazard to your home.
D. Reversible Collar & Horizontal Flue Shield
Tools Required: #2 & #3 Phillips head screwdriver; 1/2"
wrench
The flue collar is reversible for either a top or rear venting
installation. The appliance is shipped with the flue collar in
the top vent position (Figure 18.1).
Converting Collar For Rear Vent Installation
and Installing Required Horizontal Flue Shield
1. Remove flue cover from convection shroud (5 Phillips
screws) as shown in Figure 18.1.
2. Remove convection shroud from appliance (4 Phillips
screws) as shown in Figure 18.1.
3. Remove, rotate 180 degrees and install cast flue
transition in the horizontal position as shown in Figures
18.1 and 18.2.
4. Install convection shroud on to the appliance (Figure
18.2).
5. Rotate 180 degrees and install the flue cover (Use
second set of provided holes) as shown in Figure 18.2.
18

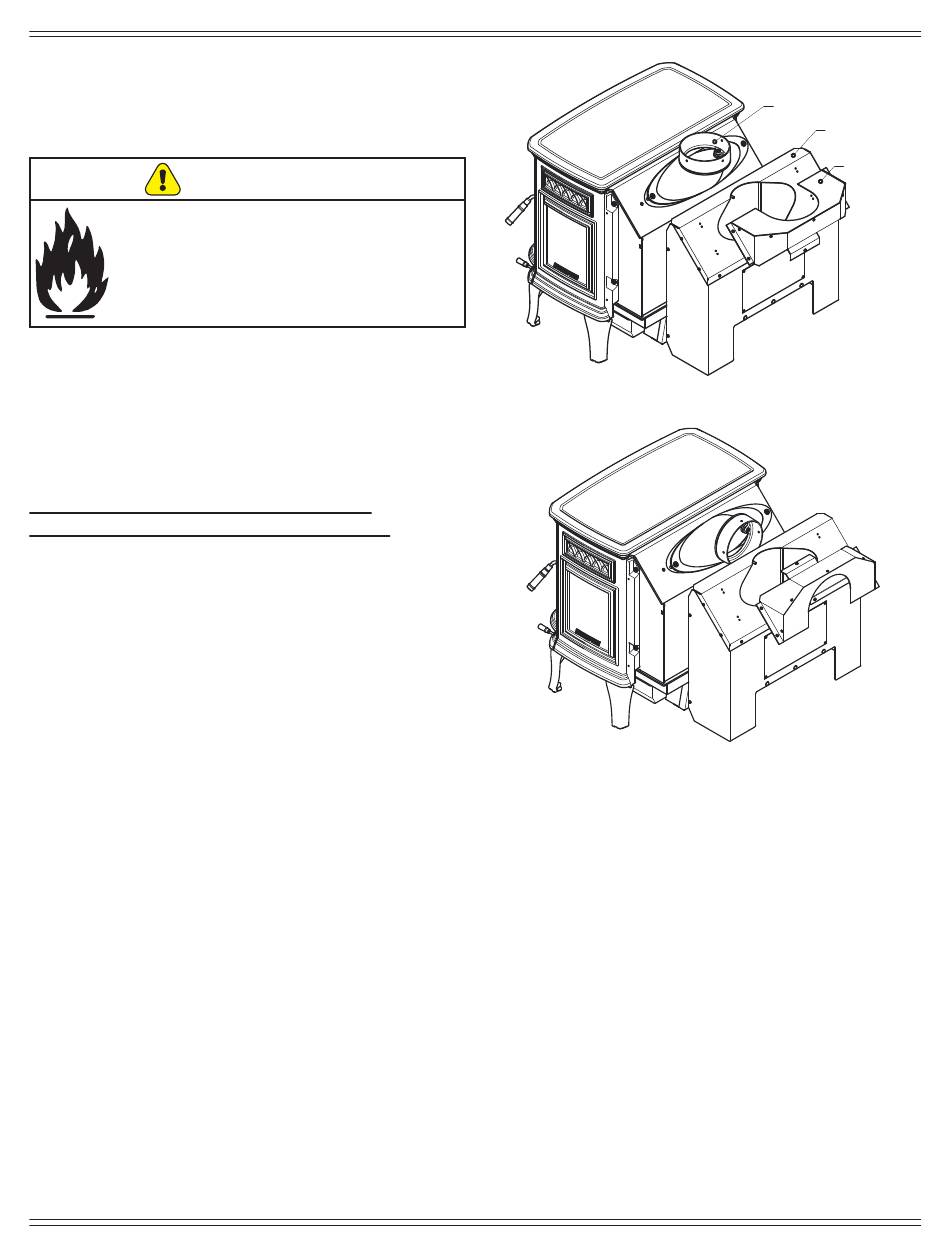

Figure 18.1
Figure 18.2
7062-197G
Flue Transition
Convection Shroud
Flue Cover
