Explorer I
3

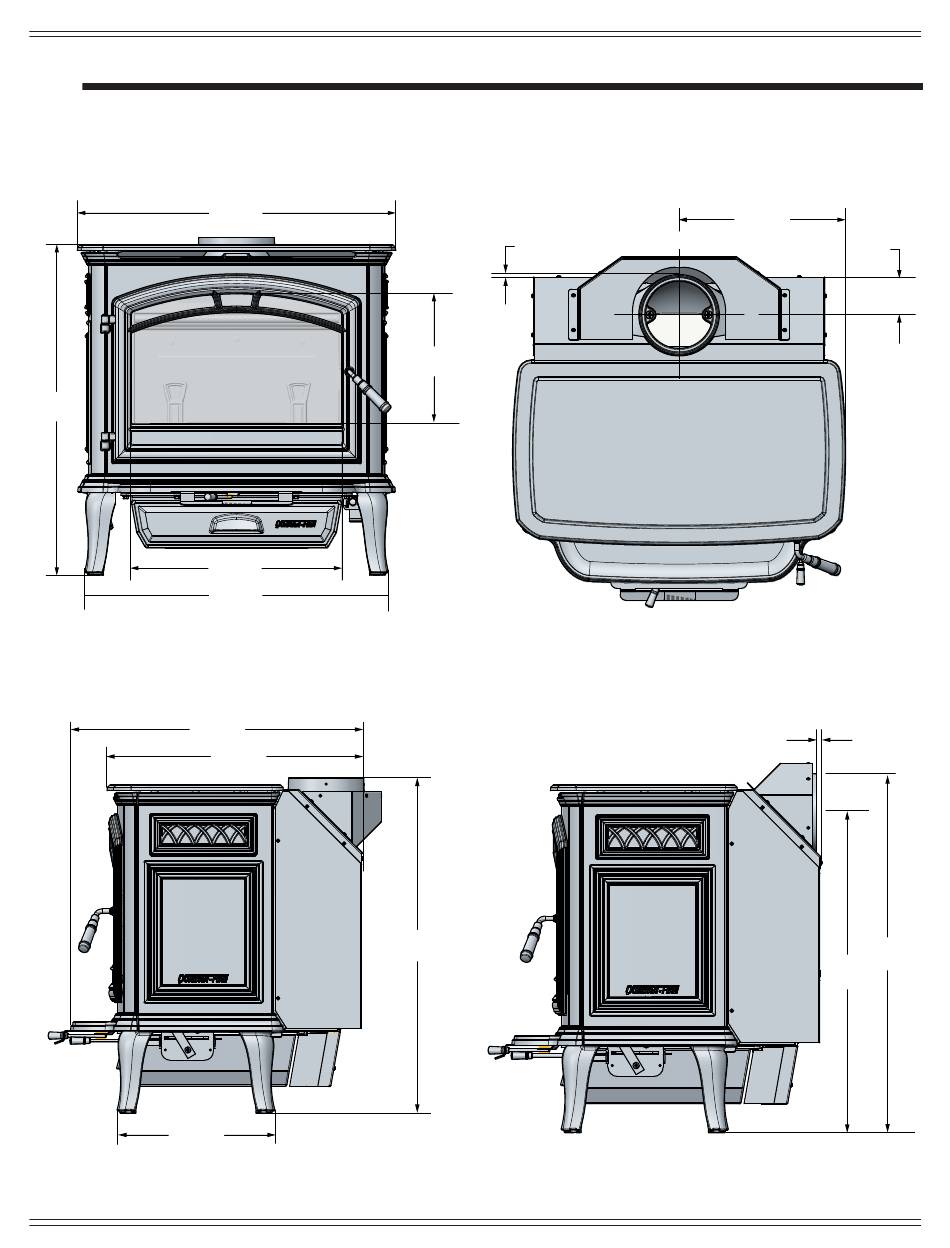

Dimensions and Clearances
A. Appliance Dimensions
27-3/4"
705mm
Figure 8.1 Front View
24-7/8"
632mm
13-3/8"
340mm
Figure 8.2 Side View with vertical flue
8
26-7/8"
683mm
17-3/4"
451mm
25-1/2"
650mm
21-1/2"
547mm
NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
1/4"
7mm
10-3/4"
274mm
Figure 8.3 Top View
28-1/2"
726mm
Figure 8.4 Side View with horizontal flue
7062-197G
13-3/8"
342mm
3"
77mm
3/8"
12mm
28-5/8"
728mm
25-1/2"
648mm
August 13, 2018
