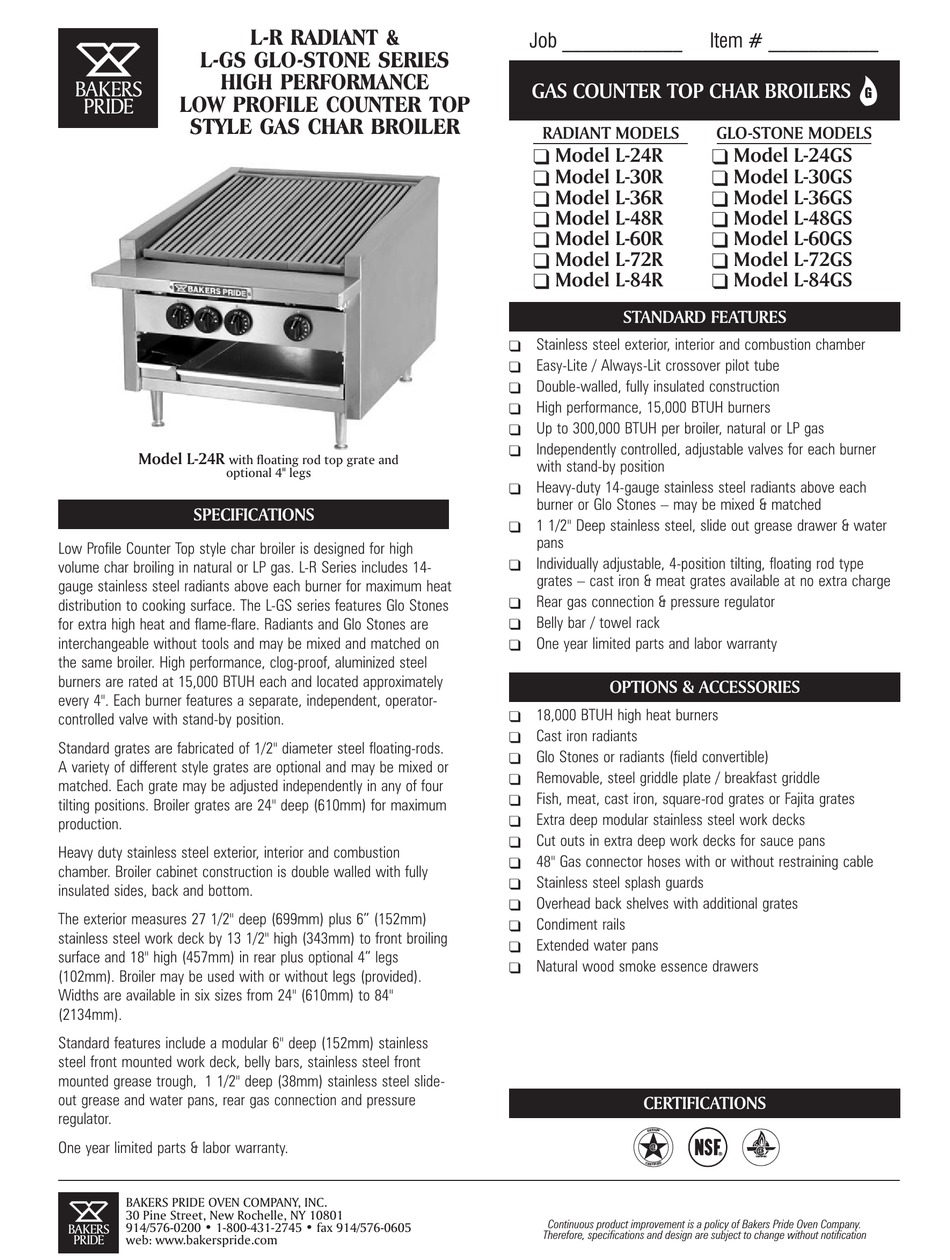

Bakers Pride L-24GS Specifications

L-GS GLO-STONE SERIES
HIGH PERFORMANCE
BAKERS
LOW PROFILE COUNTER TOP
PRIDE
STYLE GAS CHAR BROILER
Model L-24R
with floating rod top grate and
optional 4" legs
SPECIFICATIONS
Low Profile Counter Top style char broiler is designed for high
volume char broiling in natural or LP gas. L-R Series includes 14-
gauge stainless steel radiants above each burner for maximum heat
distribution to cooking surface. The L-GS series features Glo Stones
for extra high heat and flame-flare. Radiants and Glo Stones are
interchangeable without tools and may be mixed and matched on
the same broiler. High performance, clog-proof, aluminized steel
burners are rated at 15,000 BTUH each and located approximately
every 4". Each burner features a separate, independent, operator-
controlled valve with stand-by position.
Standard grates are fabricated of 1/2" diameter steel floating-rods.
A variety of different style grates are optional and may be mixed or
matched. Each grate may be adjusted independently in any of four
tilting positions. Broiler grates are 24" deep (610mm) for maximum
production.
Heavy duty stainless steel exterior, interior and combustion
chamber. Broiler cabinet construction is double walled with fully
insulated sides, back and bottom.
The exterior measures 27 1/2" deep (699mm) plus 6" (152mm)
stainless steel work deck by 13 1/2" high (343mm) to front broiling
surface and 18" high (457mm) in rear
(102mm) . Broiler may be used with or without legs (provided).
Widths are available in six sizes from 24" (610mm) to 84"
(2134mm).
Standard features include a modular 6" deep (152mm) stainless
steel front mounted work deck, belly bars, stainless steel front
mounted grease trough, 1 1/2" deep (38mm) stainless steel slide-
out grease and water pans, rear gas connection and pressure
regulator.
One year limited parts & labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE web: www.bakerspride.com
L-R RADIANT &
plus optional 4" legs
Job ____________
GAS COUNTER TOP CHAR BROILERS
RADIANT MODELS
q
Model L-24R
q
Model L-30R
q
Model L-36R
q
Model L-48R
q
Model L-60R
q
Model L-72R
q
Model L-84R
STANDARD FEATURES
q Stainless steel exterior, interior and combustion chamber
q Easy-Lite / Always-Lit crossover pilot tube
Double-walled, fully insulated construction
q
q High performance, 15,000 BTUH burners
q Up to 300,000 BTUH per broiler, natural or LP gas
q Independently controlled, adjustable valves for each burner
with stand-by position
q Heavy-duty 14-gauge stainless steel radiants above each
burner or Glo Stones – may be mixed & matched
q 1 1/2" Deep stainless steel, slide out grease drawer & water
pans
Individually adjustable, 4-position tilting, floating rod type
q
grates – cast iron & meat grates available at no extra charge
q Rear gas connection & pressure regulator
q Belly bar / towel rack
One year limited parts and labor warranty
q
OPTIONS & ACCESSORIES
18,000 BTUH high heat burners
q
q Cast iron radiants
q Glo Stones or radiants (field convertible)
Removable, steel griddle plate / breakfast griddle
q
q Fish, meat, cast iron, square-rod grates or Fajita grates
q Extra deep modular stainless steel work decks
Cut outs in extra deep work decks for sauce pans
q
q 48" Gas connector hoses with or without restraining cable
q Stainless steel splash guards
Overhead back shelves with additional grates
q
q Condiment rails
q Extended water pans
Natural wood smoke essence drawers
q
CERTIFICATIONS
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
GLO-STONE MODELS
q
Model L-24GS
q
Model L-30GS
q
Model L-36GS
q
Model L-48GS
q
Model L-60GS
q
Model L-72GS
q
Model L-84GS
®
CERTIFIED
