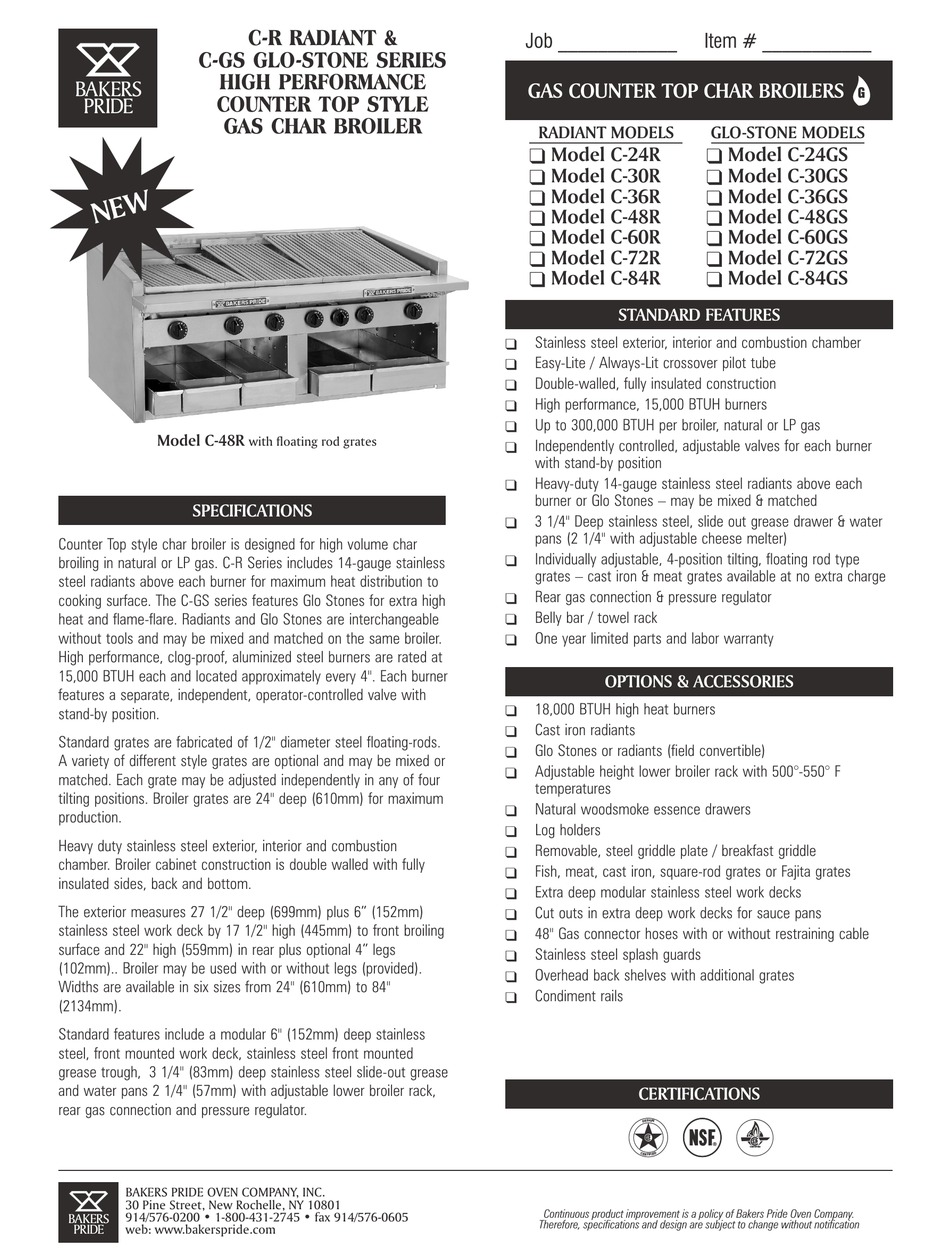

Bakers Pride C-48R Specifications

C-GS GLO-STONE SERIES
HIGH PERFORMANCE
BAKERS
COUNTER TOP STYLE
PRIDE
GAS CHAR BROILER

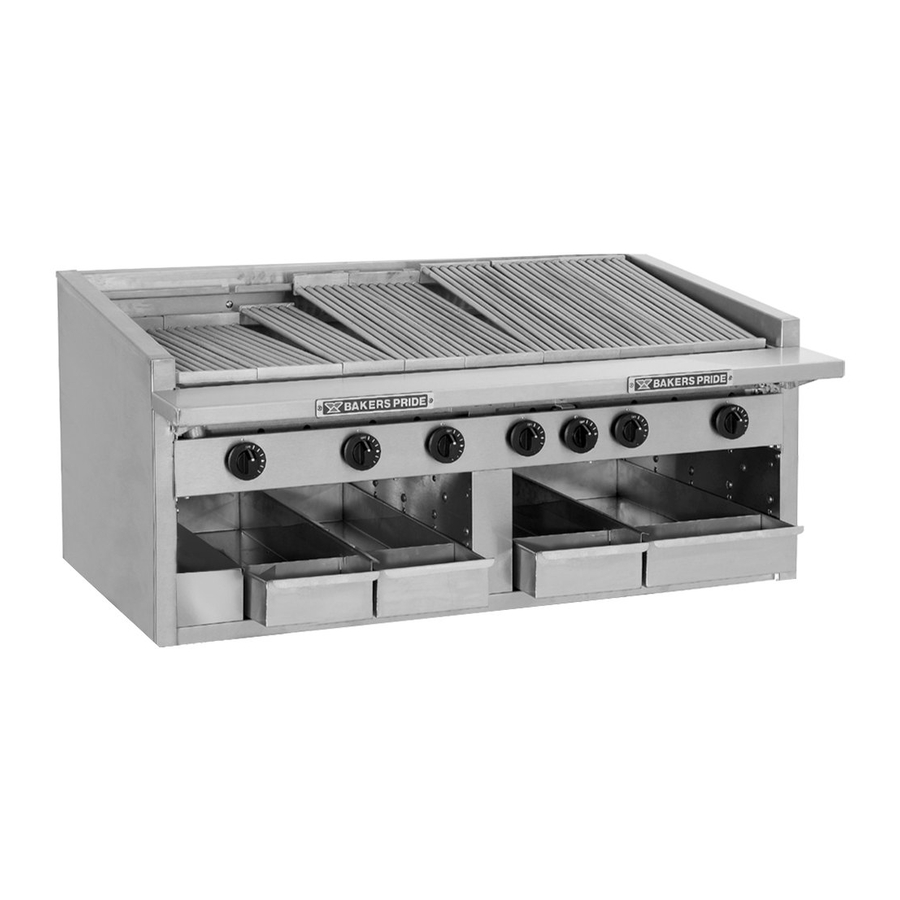

Model C-48R
SPECIFICATIONS
Counter Top style char broiler is designed for high volume char
broiling in natural or LP gas. C-R Series includes 14-gauge stainless
steel radiants above each burner for maximum heat distribution to
cooking surface. The C-GS series features Glo Stones for extra high
heat and flame-flare. Radiants and Glo Stones are interchangeable
without tools and may be mixed and matched on the same broiler.
High performance, clog-proof, aluminized steel burners are rated at
15,000 BTUH each and located approximately every 4". Each burner
features a separate, independent, operator-controlled valve with
stand-by position.
Standard grates are fabricated of 1/2" diameter steel floating-rods.
A variety of different style grates are optional and may be mixed or
matched. Each grate may be adjusted independently in any of four
tilting positions. Broiler grates are 24" deep (610mm) for maximum
production.
Heavy duty stainless steel exterior, interior and combustion
chamber. Broiler cabinet construction is double walled with fully
insulated sides, back and bottom.
The exterior measures 27 1/2" deep (699mm) plus 6" (152mm)
stainless steel work deck by 17 1/2" high (445mm) to front broiling
surface and 22" high (559mm) in rear
(102mm). . Broiler may be used with or without legs (provided).
Widths are available in six sizes from 24" (610mm) to 84"
(2134mm).
Standard features include a modular 6" (152mm) deep stainless
steel, front mounted work deck, stainless steel front mounted
grease trough, 3 1/4" (83mm) deep stainless steel slide-out grease
and water pans 2 1/4" (57mm) with adjustable lower broiler rack,
rear gas connection and pressure regulator.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE web: www.bakerspride.com
C-R RADIANT &
with floating rod grates
plus optional 4" legs
Job ____________
GAS COUNTER TOP CHAR BROILERS
RADIANT MODELS
Model C-24R
q
Model C-30R
q
Model C-36R
q
Model C-48R
q
Model C-60R
q
Model C-72R
q
Model C-84R
q
STANDARD FEATURES
Stainless steel exterior, interior and combustion chamber
q
Easy-Lite / Always-Lit crossover pilot tube
q
Double-walled, fully insulated construction
q
High performance, 15,000 BTUH burners
q
Up to 300,000 BTUH per broiler, natural or LP gas
q
Independently controlled, adjustable valves for each burner
q
with stand-by position
Heavy-duty 14-gauge stainless steel radiants above each
q
burner or Glo Stones – may be mixed & matched
3 1/4" Deep stainless steel, slide out grease drawer & water
q
pans (2 1/4" with adjustable cheese melter)
Individually adjustable, 4-position tilting, floating rod type
q
grates – cast iron & meat grates available at no extra charge
Rear gas connection & pressure regulator
q
Belly bar / towel rack
q
One year limited parts and labor warranty
q
OPTIONS & ACCESSORIES
18,000 BTUH high heat burners
q
Cast iron radiants
q
Glo Stones or radiants (field convertible)
q
Adjustable height lower broiler rack with 500°-550° F
q
temperatures
Natural woodsmoke essence drawers
q
Log holders
q
Removable, steel griddle plate / breakfast griddle
q
Fish, meat, cast iron, square-rod grates or Fajita grates
q
Extra deep modular stainless steel work decks
q
Cut outs in extra deep work decks for sauce pans
q
48" Gas connector hoses with or without restraining cable
q
Stainless steel splash guards
q
Overhead back shelves with additional grates
q
Condiment rails
q
CERTIFICATIONS
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
GLO-STONE MODELS
Model C-24GS
q
Model C-30GS
q
Model C-36GS
q
Model C-48GS
q
Model C-60GS
q
Model C-72GS
q
Model C-84GS
q
®
CERTIFIED
