Bakers Pride SGBR-2 Specifications

HIGH PERFORMANCE
HEAVY DUTY
FLOOR MODEL
BAKERS
GLO-STONE
PRIDE
CHAR BROILERS

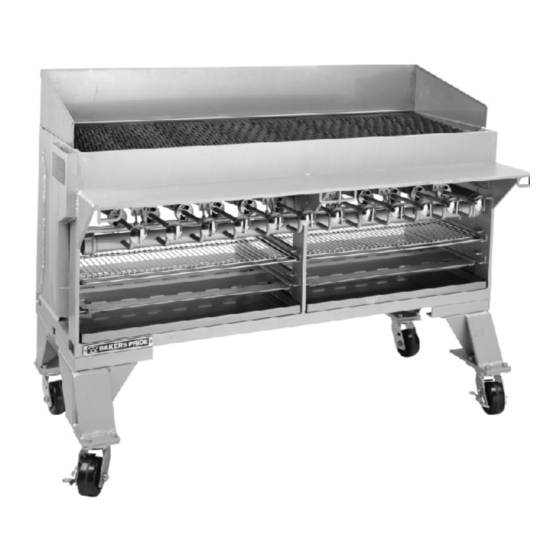

Model SGBR-4
with optional legs & casters
and stainless steel splash guard
SPECIFICATIONS
Extra heavy duty Glo-stone char broilers are designed for high
volume charcoal style broiling.
The SGBR Series features unitized construction. The entire chassis
frame including the base is hand-crafted of 1/2" (13mm) to 1/4"
(6mm) thick HRS and welded to form a single unit without
fasteners. The sides and rear of the outer shell are made of heavy
gauge CRS and are welded to the chassis frame to complete the
unitized construction and finished with durable Baker Tone paint.
SGBR Series features 13" long (381mm) cast iron burners rated at
14,000 BTUH each (4.1kw) located every 4 7/8" (124mm). Each
burner features a separate, independent operator-controlled valve.
Glo-stones add flame flare for a richer flavor profile and are ideal
for exhibition kitchens.
Standard top grates are wavy type, heavy-duty cast iron. A variety
of different style grates are available and may be mixed and
matched. Each grate may be adjusted independently in any of three
tilting positions. Broiler grates are 17 1/4" deep (438mm) for
maximum production.
Exterior measures 20" deep (508mm) plus 8" lintel plate (203mm)
or 9 1/8" (232mm) work deck with plate shelf. Working height
measures 36" (915mm) with legs, or 24" (610mm) without legs,
plus 6 1/2" (165mm) back splash. Standard widths range from 28
7/8" (721mm) up to 97 7/8" (2486mm).
Standard features include 3 1/4" deep (83mm) stainless steel slide-
out water pans and grease drawer, rear gas connections and
pressure regulator. SGBR Series may be built in for display cooking
and exhibition kitchens.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE www.bakerspride.com
GAS CHAR BROILERS
Model SGBR-2
q
Model SGBR-3
q
Model SGBR-4
q
Model SGBR-5
q
Model SGBR-6
q
Model SGBR-7
q
STANDARD FEATURES
Heavy plate steel, welded unitized construction
q
High performance 14,000 BTUH per burner
q
Up to 336,000 total BUTH per broiler
q
Natural or LP gas
q
Individual, operator-controlled, adjustable burner valves
q
Salamander type warming rack increases broiling capacity
q
3 1/4" deep (83mm) stainless steel water pans
q
3 1/4" deep (83mm) stainless steel grease drawer
q
Pressure regulator
q
One year limited parts and labor warranty
q
OPTIONS & ACCESSORIES
Charcoal Fired
q
Gas assisted charcoal fired
q
Leg set
q
Leg & caster set
q
Stainless steel or Richlite work deck with plate shelf
q
Custom cut-outs in work deck for sauce pans
q
Tiered back for tilting grates
q
Stainless steel splash guard — sides and back or sides only
q
for tiltback models
Variety of top grates including meat grates, fish grates,
q
floating rod grates and more — grates may be mixed or
matched
Stainless steel heat shields
q
Side gas connections
q
Removable griddle plates
q
Log holders for wood-assisted char broiling
q
Gas connector hoses
q
CERTIFICATIONS
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
G
CERTIFIED
