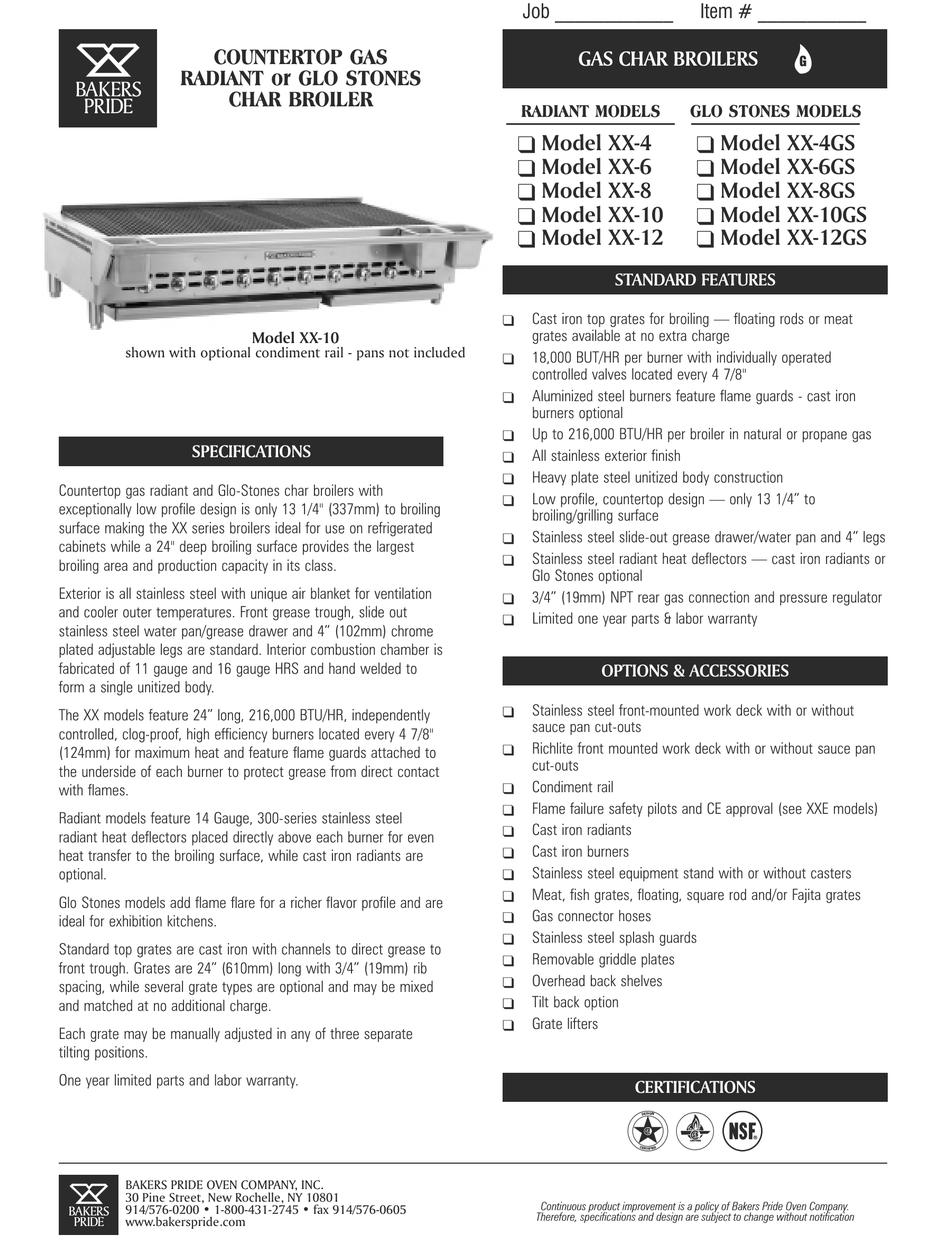

Bakers Pride COUNTERTOP GAS RADIANT XX-10 Specifications

COUNTERTOP GAS
RADIANT or GLO STONES
BAKERS
CHAR BROILER
PRIDE

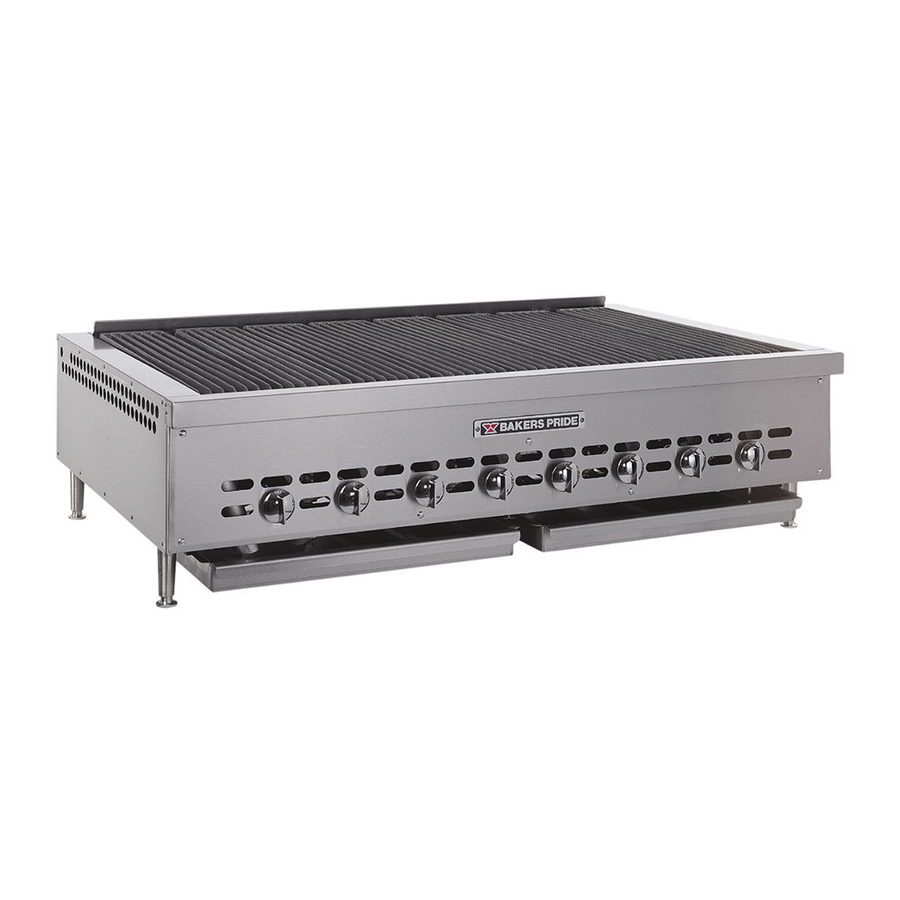

shown with optional condiment rail - pans not included
SPECIFICATIONS
Countertop gas radiant and Glo-Stones char broilers with
exceptionally low profile design is only 13 1/4" (337mm) to broiling
surface making the XX series broilers ideal for use on refrigerated
cabinets while a 24" deep broiling surface provides the largest
broiling area and production capacity in its class.
Exterior is all stainless steel with unique air blanket for ventilation
and cooler outer temperatures. Front grease trough, slide out
stainless steel water pan/grease drawer and 4" (102mm) chrome
plated adjustable legs are standard. Interior combustion chamber is
fabricated of 11 gauge and 16 gauge HRS and hand welded to
form a single unitized body.
The XX models feature 24" long, 216,000 BTU/HR, independently
controlled, clog-proof, high efficiency burners located every 4 7/8"
(124mm) for maximum heat and feature flame guards attached to
the underside of each burner to protect grease from direct contact
with flames.
Radiant models feature 14 Gauge, 300-series stainless steel
radiant heat deflectors placed directly above each burner for even
heat transfer to the broiling surface, while cast iron radiants are
optional.
Glo Stones models add flame flare for a richer flavor profile and are
ideal for exhibition kitchens.
Standard top grates are cast iron with channels to direct grease to
front trough. Grates are 24" (610mm) long with 3/4" (19mm) rib
spacing, while several grate types are optional and may be mixed
and matched at no additional charge.
Each grate may be manually adjusted in any of three separate
tilting positions.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE www.bakerspride.com
Model XX-10
Job ____________
GAS CHAR BROILERS
RADIANT MODELS
Model XX-4
q
Model XX-6
q
Model XX-8
q
Model XX-10
q
Model XX-12
q
STANDARD FEATURES
Cast iron top grates for broiling — floating rods or meat
q
grates available at no extra charge
18,000 BUT/HR per burner with individually operated
q
controlled valves located every 4 7/8"
Aluminized steel burners feature flame guards - cast iron
q
burners optional
Up to 216,000 BTU/HR per broiler in natural or propane gas
q
All stainless exterior finish
q
Heavy plate steel unitized body construction
q
Low profile, countertop design — only 13 1/4" to
q
broiling/grilling surface
Stainless steel slide-out grease drawer/water pan and 4" legs
q
Stainless steel radiant heat deflectors — cast iron radiants or
q
Glo Stones optional
3/4" (19mm) NPT rear gas connection and pressure regulator
q
Limited one year parts & labor warranty
q
OPTIONS & ACCESSORIES
Stainless steel front-mounted work deck with or without
q
sauce pan cut-outs
Richlite front mounted work deck with or without sauce pan
q
cut-outs
Condiment rail
q
Flame failure safety pilots and CE approval (see XXE models)
q
Cast iron radiants
q
Cast iron burners
q
Stainless steel equipment stand with or without casters
q
Meat, fish grates, floating, square rod and/or Fajita grates
q
Gas connector hoses
q
Stainless steel splash guards
q
Removable griddle plates
q
Overhead back shelves
q
Tilt back option
q
Grate lifters
q
CERTIFICATIONS
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
GLO STONES MODELS
Model XX-4GS
q
Model XX-6GS
q
Model XX-8GS
q
Model XX-10GS
q
Model XX-12GS
q
®
CERTIFIED
