Summary of Contents for Bakers Pride CH-4 XX-4

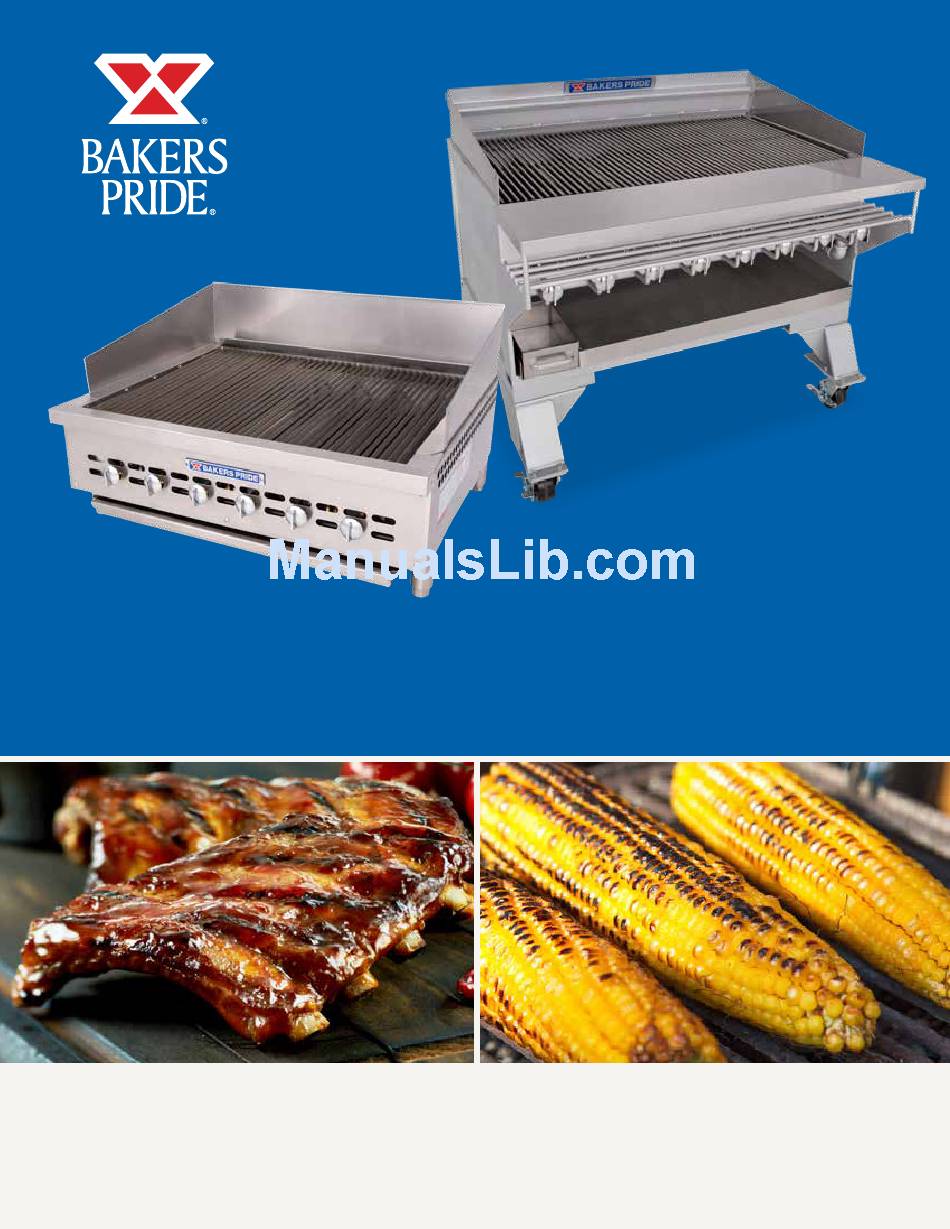

- Page 1 OPERATION MANUAL DANTE SERIES GAS CHARBROILERS SERIES: XX & CH B U I LT BY C R A F T S M E N . T E S T E D BY T I M E ®...
- Page 2 Models: WARNING Dante XX & CH Improper installation, adjustment, alteration, Bakers Pride Oven Company, LLC is a wholly owned service or maintenance can cause property subsidiary of Standex International Corporation. damage, injury or death. Read the installation, operating and maintenance instructions...
-
Page 3: Table Of Contents
XX & CH CHARBROILER OPERATION MANUAL TABLE OF CONTENTS GENERAL DESCRIPTION OPERATIONAL GUIDELINES FOR CHARBROILER NATURAL SMOKE ESSENCE INSTALLATION HELPFUL HINTS CLEARANCES MAINTENANCE GAS CONNECTION SERVICE BURNERS CARE AND CLEANING OF TOP GRATES RADIANTS GREASE COLLECTION TOP GRATES CLEANING TOOLS LIGHTING AVERAGE PRODUCTION GUIDE GRIDDLE PLATES... -
Page 4: General Description
XX & CH CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS For units using propane gas, supply lines less than General: 1/2” inside diameter should not be used, even for a small unit. The instructions in this manual apply to all XX series and CH series Broilers. -
Page 5: Radiants
XX & CH CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Radiants: Lighting: Mount the “V” shaped radiants over the burners with Each burner on the base charbroiler has a standing pilot each end mounted on special supports on the front and burner that must be lit before the burners can be lit. To rear of the chamber. -
Page 6: Additional Installation Requirements
XX & CH CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Additional Installation Instructions Optional Smoker Base (a) Keep the area around the broiler free and clear of Installation combustible materials. (a) Remove the grease pans from their rails completely (b) The provision of an adequate air supply to your and set aside. -
Page 7: Operating Instructions
Allow the unit to pre-heat for 45 minutes to 1 hour before broiling. (e) Cooking Tools: Bakers Pride has designed a number of tools to help you operate more efficiently (a) Seasoning: Marinades with oil and vinegar or... -
Page 8: Helpful Hints
(d) Cleaning Tools: Several models of specially that will cause a dry product. designed top grate brushes and grease drain scrapers are available from Bakers Pride. (b) Allow the meat to sit covered on a heated platter Contact Bakers Pride for more information. -
Page 9: Average Production Guide
XX & CH CHARBROILER OPERATION MANUAL OPERATING INSTRUCTIONS Average Production Guide: Estimated Hourly Production MODEL NUMBER BROILING AREA 3 OZ. BURGERS 12 OZ. STEAKS CH-4 XX-4 21” x 24” CH-6 XX-6 31 1/2” x 24” CH-8 XX-8 42” x 24” 1200 CH-10 XX-10 52 1/2”... -
Page 10: One Burner Fails To Light
With a thin wire or pin, local service company. check that the hole is clear at the top of the pilot For additional information contact: Bakers Pride Oven tube. Attempt to relight using a taper. Co., Inc. (914) 576-0200. -
Page 11: Valve Assembly Views
XX & CH CHARBROILER OPERATION MANUAL VALVE ASSEMBLY VIEWS Valve Assembly Views: (A=Cap Hold-Down Screw) Figure 2: Air Mixer Cap And Pilot Burners Figure 3: Side View - CH Series Figure 3: Side View - XX Series... -
Page 12: Parts Lists & Exploded Views
XX & CH CHARBROILER OPERATION MANUAL PARTS LISTS AND EXPLODED VIEWS EXPLODED VIEW – XX-4, 6, 8, 10, 12 Burner / Accessories Item Part No. Description Item Part No. Description R1017X Manifold Assy (XX-4) L5027V Burner Assy Complete, C.I. 24" (XX) O/S R1018X Manifold Assy (XX-6) L5014V... - Page 13 XX & CH CHARBROILER OPERATION MANUAL PARTS LISTS AND EXPLODED VIEWS EXPLODED VIEW – XX-4, 6, 8, 10, 12 Exterior / Grates Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase and Gas Type.
-
Page 14: Models: Xx-4, -6, -8, -10
Only) G1127K Outer Side, Right (XX) T1250A Briquettes, Ceramic 9.5 lb Bag (Glo-Stone Option U1044X Name Plate, 8”, Bakers Pride Only) NOTE: XX-4: (1) T1242U, (2) T1250A XX-6: (1) T1243U, (3) T1250A XX-8: (2) T1242U, (4) T1250A XX-10: (1) T1242U, (1) T1243U, (5) T1250A... -
Page 15: Parts List & Exploded View
XX & CH CHARBROILER OPERATION MANUAL PARTS LISTS AND EXPLODED VIEWS EXPLODED VIEW – CH-6, 8, 10, 12, 14 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase and Gas Type. -
Page 16: Models: Ch-6, -8, -10, -12
XX & CH CHARBROILER OPERATION MANUAL PARTS LISTS AND EXPLODED VIEWS Item Part No. Description Item Part No. Description T1006A Top Grate 5 1/4' Wide 2 T3120X Grease Pan, set/2 (CH-10) T1217U Grate, Meat (4 1/2") T3121X Grease Pan, set/2 (CH-12) T1210U Grate, Meat (6") T3122X... -
Page 17: Warranty
Bakers Pride Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. Bakers Pride shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. - Page 18 Food Service Equipment Group The Standex Food Service Equipment Group (FSEG) is a manufacturer of innovative commercial food service equipment offering a wealth of refrigeration and cooking expertise. Products include walk-in coolers and freezers; hot and cold display cabinets, cases, and storage systems; commercial ovens, rotisseries, and cooking equipment;...
