Digital Check TellerScan TS500 Easy Installation Manual

What's Included

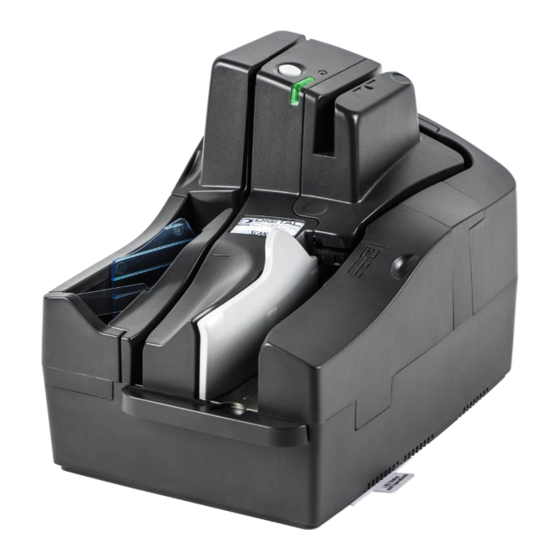

▪ TellerScan TS500 scanner
▪ Power supply with electrical supply cord
▪ USB 2.0 cable
▪ Ink cartridge
● Note: Only 'Inkjet' model scanners are
supplied with an ink cartridge.
▪ Cleaning card
● Note: See the LED Status Card for cleaning
instructions and operation.
TellerScan TS500 Easy Installation Guide
®
Installing the Ink Cartridge
● Open the center cover by lifting it up vertically
and rotating it into the open position as shown.
● Open the ink cartridge package and remove
the protective seal.
● Insert the front nozzle end of the cartridge
into the platform while keeping the rear (tab
end) side of the cartridge tilted slightly upward.
Push down on the rear of the cartridge until it
"clicks" twice and snaps into a seated position.
● The cartridge should appear parallel with the
top of the ink cartridge platform when seated.
Close the cover and secure into place by
pressing down on the indent marks.
www.digitalcheck.com
Getting Started
● Note: Digital Check does not provide the
required device drivers or scanning software.
Please contact your bank, IT department or
other solution provider for further assistance
with installing the driver or getting the scanning
software set up or installed.
● Install the device driver / software before
connecting the USB cable to the scanner.
● When connecting the scanner, plug the power
supply into the scanner first, then into an outlet.
● Connect the USB cable by inserting the
square USB-B plug into the scanner and the flat
USB-A plug into a rear USB port on the PC.
● Place the scanner and the included Digital
Check branded power supply 6-12 inches away
from other electronic devices. (small desk fans,
other device power supplies, pneumatic tubes
at the teller window etc.)
● Pull out the entry and exit trays on the
scanner before inserting any checks or other
items.
Rev 072015
