IC Cylinders

IC Cylinders

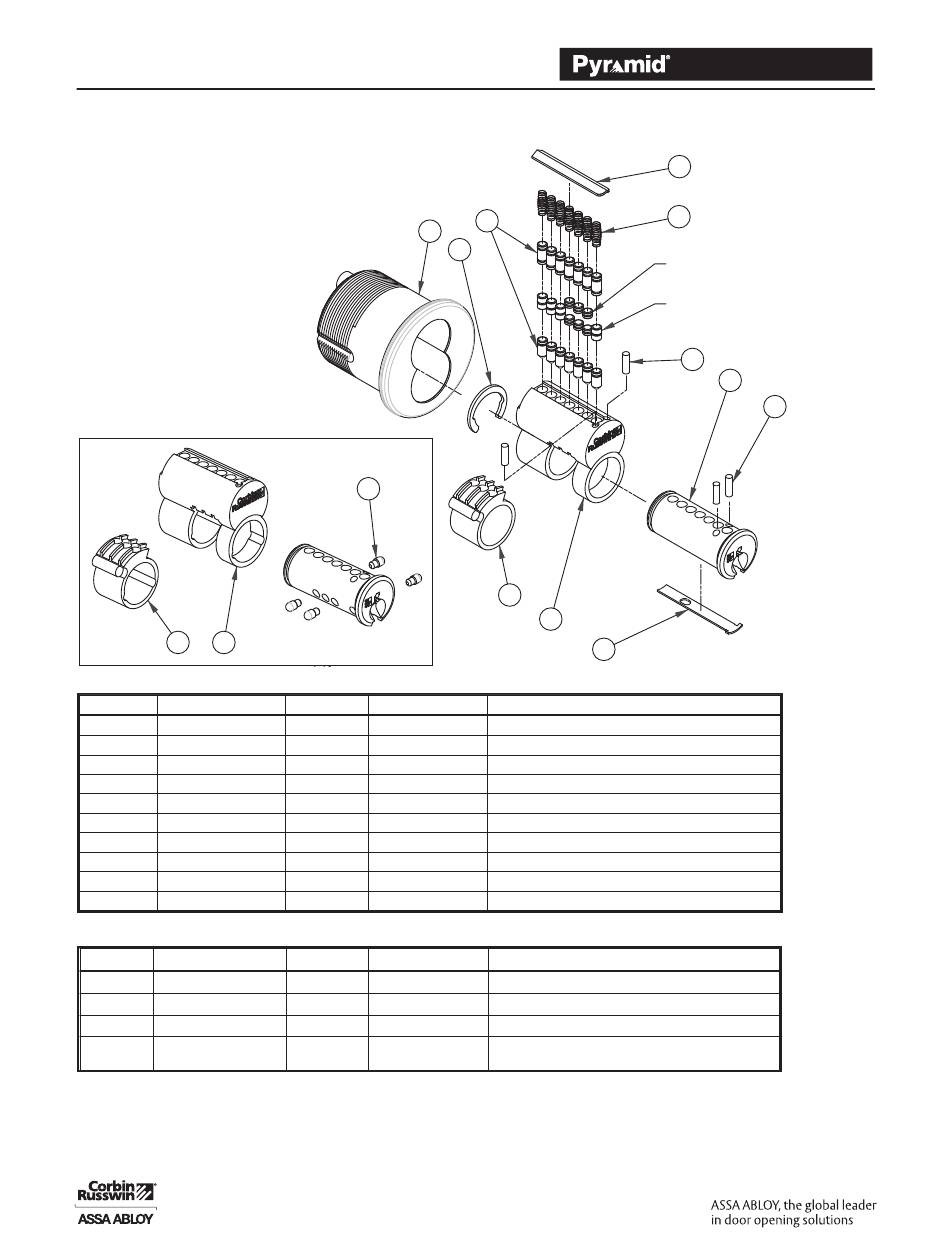

Cylinder with Side Pins
4 3
STANDARD CYLINDER
ITEM DESCRIPTION
1 Plug (8020 & 8027)
2 Housing
3 IC Core
4 Control sleeve
5 Plug retainer
6 Blocking plate
7 Slide
8 Springs
9 Top & bottom pins
10 Hard metal inserts
CYLINDER WITH SIDE PINS
ITEM DESCRIPTION
1 Plug (8020 & 8027)
3 IC Core
4 Control sleeve
11 Side pins
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a
Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2006-2018, Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin is
prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
9
2
5
11
QTY. PART NO. REMARKS
1 696K522 Finish & Keyway Required
1 * Mortise housing 1070 shown
1 695F502 Finish Required
1 696F51
1 333F997
1 696F427
1 217F442
7 697F507
* * Refer to page 14 for options
4 Not sold separately
QTY. PART NO.
1 629K032
1 628F922
1 628F932
4 630F494
13
13
Owner's Manual
Owner's Manual
BUILD-UP PINS
(CONTROL CHAMBERS ONLY)
MASTER PINS (AS REQUIRED)
4
3
6
REMARKS
Finish & Keyway Required
Finish Required
Finish Required
The side pins are available in a vial that contains 20 side
pins. Only 4 side pins a required for the cylinder.
7
8
10
1
10
