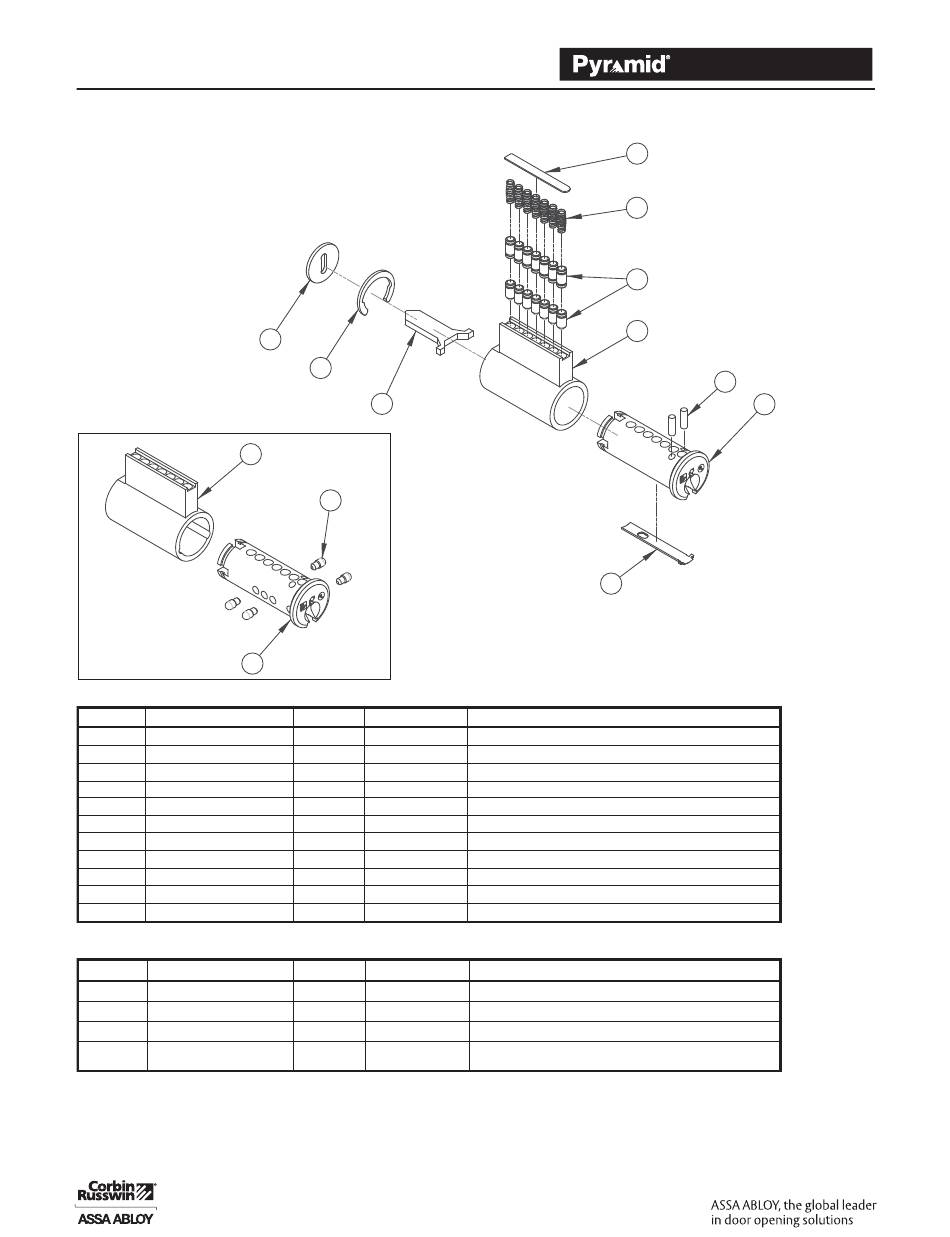

Competitor Key-in-Knob/Lever Cylinders

Competitor Key-in-Knob/Lever Cylinders
Cylinder with Side Pins
2
1
STANDARD CYLINDER
ITEM DESCRIPTION
1 Plug (2220)
1 Plug (2227)
2 Shell
3 Tailpiece
4 Plug retainer
5 Spacer
6 Blocking plate
7 Slide
8 Springs
9 Top & bottom pins
10 Hard metal inserts
CYLINDER WITH SIDE PINS
ITEM DESCRIPTION
1 Plug (2220)
1 Plug (2227)
2 Shell
11 Side pins
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a
Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2006-2018, Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin is
prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
5
4
3
11
QTY. PART NUMBER
1 715K142
1 715K162
1 715F152
1 715F108
1 333F997
1 715F139
1 696F427
1 411F092
7 697F507
* *
2
QTY. PART NUMBER
1 628K952
1 629K042
1 628F962
4 630F494
12
Owner's Manual
7
8
9
2
6
REMARKS
Finish & Keyway Required
Finish & Keyway Required
-P21 Cylinder, refer to Key Systems Catalog (45078) for options.
KIK cylinder only
Refer to page 14 for options
Not sold separately
REMARKS
Finish & Keyway Required
Finish & Keyway Required
The side pins are available in a vial that contains 20 side pins.
Only 4 side pins are required for the cylinder.
12
