YEARS: 2015-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
3/4"
21 mm
RATCHET
SOCKET
TORQUE
DIE GRINDER
WRENCH
UNIVERSAL
OFFSET
JOINT SOCKET
SCREWDRIVER
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
SCAN FOR
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
MORE INFO
For more information log onto www.curtmfg.com , & for helpful towing tips log onto www.hitchinfo.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
12142
INSTALLATION INSTRUCTIONS
JEEP
TRAILER WEIGHT:
LBS.
3500
TONGUE WEIGHT:
350
LBS.
30
MIN.
INSTALLATION TIPS:
60 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
8"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
UTILITY
KNIFE
PART REMOVAL
MODEL: RENEGADE
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
(2) HOLE
ENLARGEMENT
REQUIRED
FISHWIRE (4)
FASTENERS
NO DRILL
REMOVE (4)
RUBBER PLUGS
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

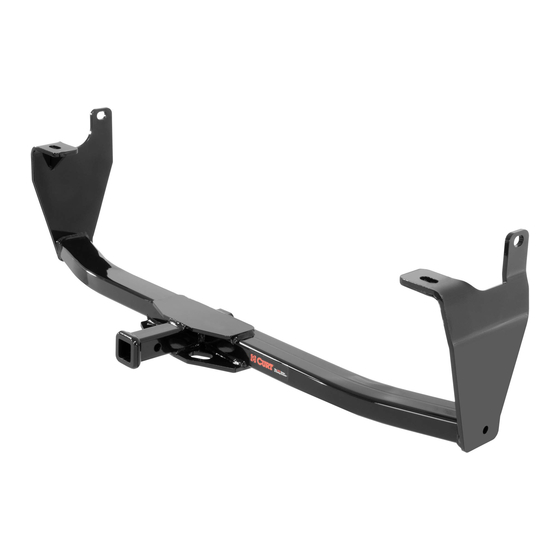

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SUV
3/31/2016
Advertisement
Related Manuals for curt 12142
Summary of Contents for curt 12142
-
Page 1: Installation Instructions
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC. -
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. Remove the rearmost rubber plugs on the bottom of each Parts List frame rail. Remove the forward most rubber plugs ITEM PART NUMBER DESCRIPTION on the outside of each frame rail. 1/2-13 x 1 1/2 CARRIAGE BOLT NOTE: For applications with a factory tow hook, remove the HFN 1213 HEX FLANGE NUT... - Page 3 INSTALLATION WALKTHROUGH: 3. Clear away caulk as necessary near mounting holes on 5. Raise hitch into position, threading the fishwires into the both sides using a knife. mounting holes. Remove fishwire and loosely install 1/2" Hex Flange Nuts. NOTE: For applications with a factory tow hook, loosely install factory M14 hardware.
-
Page 5: Installation Steps
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
