curt 18109 Installation Instructions

INstAllAtIoN INstRuctIoNs
Warning: never exceed your vehicle manufacturer's recommended toWing capacity

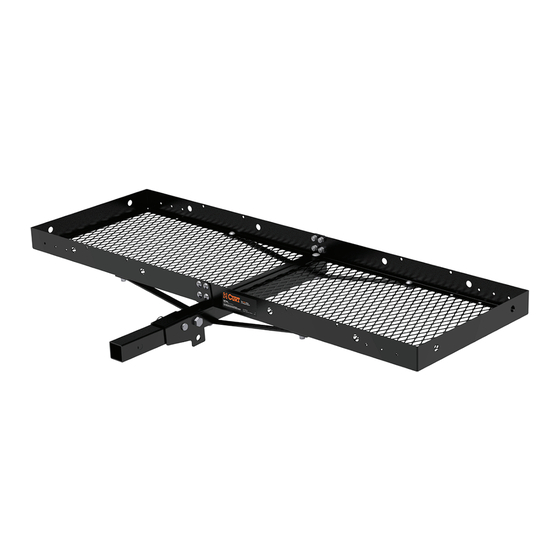

FoldING, hItch-mouNted cARGo cARRIeR
PARts lIst
Item# Qty Description
1 2 Platform half
2 4 Carriage bolt, M10*20
3 1 Flat brace
4 2 Carriage bolt, M10*80
5 14 Locknut, M10
6 1 Shank, 2"
7 2 Support bridge
8 1 Hex head bolt, M16*80
9 1 Foldable connection bar
10 1 Clip
11 1 Pin, 5/8"
12 1 Locknut, M16
13 2 Connecting plate
suGGested tools
Open wrench, 17mm and 24mm
Adjustable wrench, 0 to 30mm
13
1

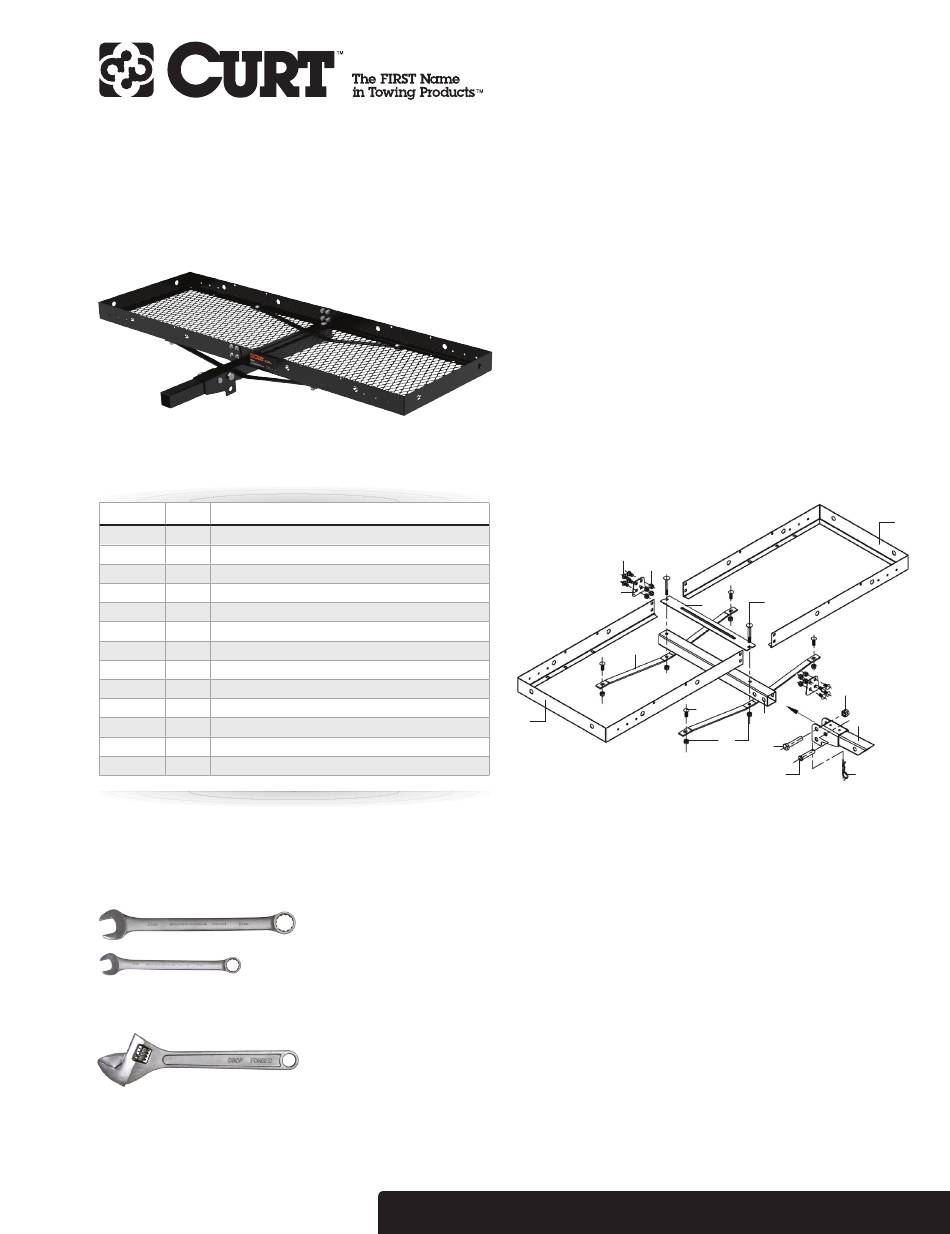

Figure 1
WARNINGs
Do not exceed maximum weight capacity of 500 lbs.
when using 2" receiver tube. Distribute the weight
evenly on platform when hauling a load. NOTE: This
carrier is not intended for transporting people.
Do not carry loads wider or deeper than carrier. Do not
carry flammable items on carrier. Do not allow exhaust
fumes to blow directly on items. This is a fire hazard.
CURT Manufacturing, LLC is not responsible
for any damage if warnings are not heeded.
PAGE 1 • 18109-INS-RA • 1.800.798.0813 • NEED ASSISTANCE?
2
5
4
3
7
2
6
5
8
11
• cuRtmFG.com
1
12
9
10
