Icron RG2304-LAN Quick Start Manual

USB 2.0 RG2304-LAN
4-Port USB 2.0 Ethernet LAN
Extender System
Quick
Start
Guide
90-01048-A04
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

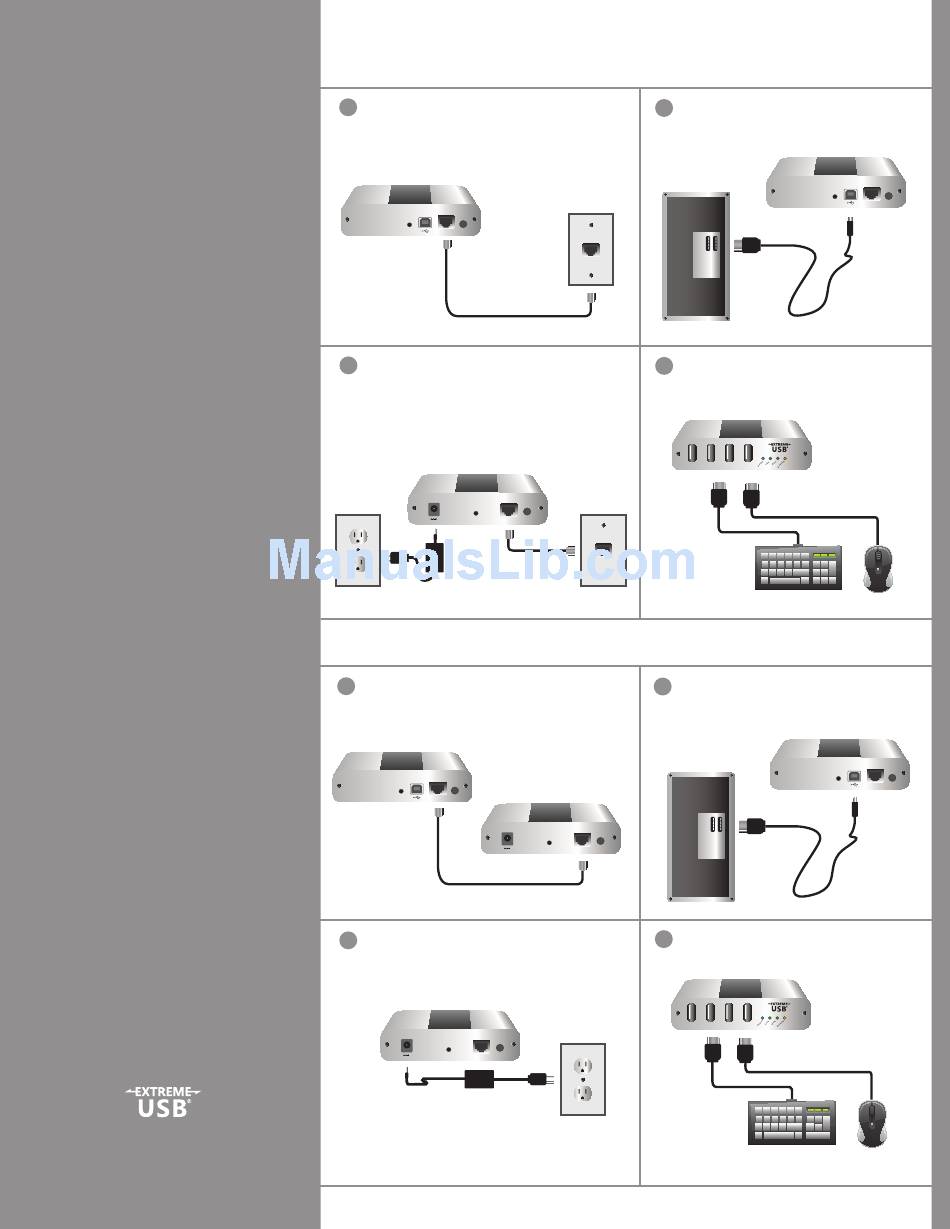

Place the Local Extender where desired
1
1
and connect the Cat 5e patch cable from
the Link port (RJ45) to a network switch or
wall network port connected to a switch.
Local Extender (back view)
Pair
Link Config
Max 100m between network devices
Place the Remote Extender where desired.
3
Connect the Cat 5e patch cable from the
Link port (RJ45) to a network switch or wall
network port connected to a switch and
connect the Remote Extender to a power
source.
Remote Extender (back view)
Pair
Link
DC IN 24V@1A
Max 100m between network devices
Place extenders where desired and connect
1
1
the Cat 5e extension link cabling to the
Link ports (RJ45) on the Local and Remote
Extender.
Pair
Link Config
DC IN 24V@1A
Max 100m (Cat 5e cable not included)
Connect the Remote Extender to
3
the AC adapter and a power source.
Pair
Link
Config
DC IN 24V@1A
Network Connect
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Attach USB device(s) to the Remote
4
Extender.
Remote Extender (front view)
Config

Direct Connect

Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Pair
Link
Config
4 Attach USB device(s) to the Remote
Extender.
Pair
Config
Link
Pair
Link Config
