Icron USB 3-2-1 Raven 3124 Quick Start Manual

USB 3-2-1 Raven
4-Port USB 3.1, 200m Multimode Fiber
Point-to-Point Extender System
Quick
Start
Guide
Package Contents:
• 1x USB 3-2-1 Raven 3124 Local Extender
• 1x USB 3-2-1 Raven 3124 Remote Extender
• 1x USB 3.1 Gen 1 Cable
• 1x 24V 1A AC Power Adapter
• 1x 24V 2.71A AC Power Adapter
• 2x Country Specific Power Cords
• 1x Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.
Before you get started, ensure that all the drivers required for your USB device(s) are installed.
1 Place extenders where desired and connect the fiber cable to the Link ports (LC) on the
1 1
Local and Remote Extenders.

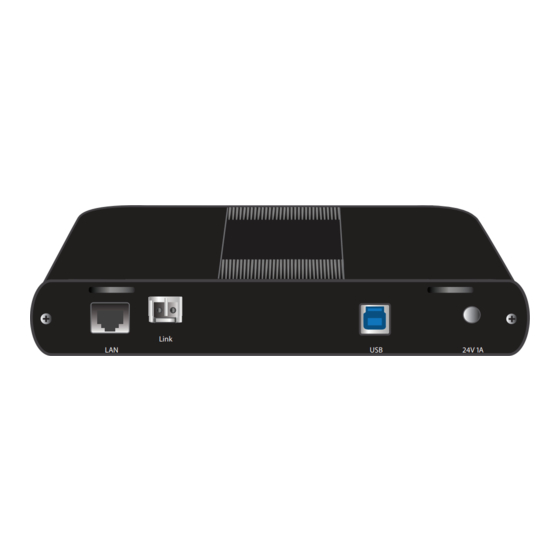

Local Extender (back view)
™ 3124
Link
LAN
Connect the Local Extender to the computer's USB 3 port using the included USB cable.
2
3 3
Power the Local Extender with the
included 24V 1A AC adapter and
tighten the locking ring.
Attach USB device(s) to the Remote
5
Extender.
Remote Extender (back view)
Link
LAN
Includes the ExtremeUSB-C™ suite of features:
USB 24V 1A
(LC-LC crossover duplex cable not included)
Max 200m OM3 multimode ber
Computer
Local Extender (back view)
Link
LAN USB 24V 1A
24V 1A AC adapter
USB USB USB USB 24V 2.71A
▪ Transparent USB extension supporting USB 3, 2 and 1
▪ True plug and play; no software drivers required
▪ Works with all major operating systems: Windows®,
macOS™, Linux® and Chrome OS™
Remote Extender (back view)
Link
LAN USB USB USB USB
Local Extender (back view)
Link
LAN USB 24V 1A
3 4 4
Power the Remote Extender with
the included 24V 2.71A AC adapter
and tighten the locking ring.
Remote Extender (back view)
Link
LAN USB USB
24V 2.71A AC adapter
Optional: Connect Local and Remote
6
Extender LAN ports to a network or
device as necessary.
Local/Remote Extender LAN Port
LAN
24V 2.71A
USB USB USB USB 24V 2.71A 24V 2.71A
DC 24V / 2.71A
