Icron RG2301 Quick Start Manual

USB 2.0 RG2301
1-Port USB 100m CAT 5e/6/7
Extender System
Quick
Start
Guide
Package Contents:
• USB 2.0 RG2301 Local Extender
• USB 2.0 RG2301 Remote Extender
• USB 2.0 Cable
• AC Power Adapter
• Country Specific Power Cord
• Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

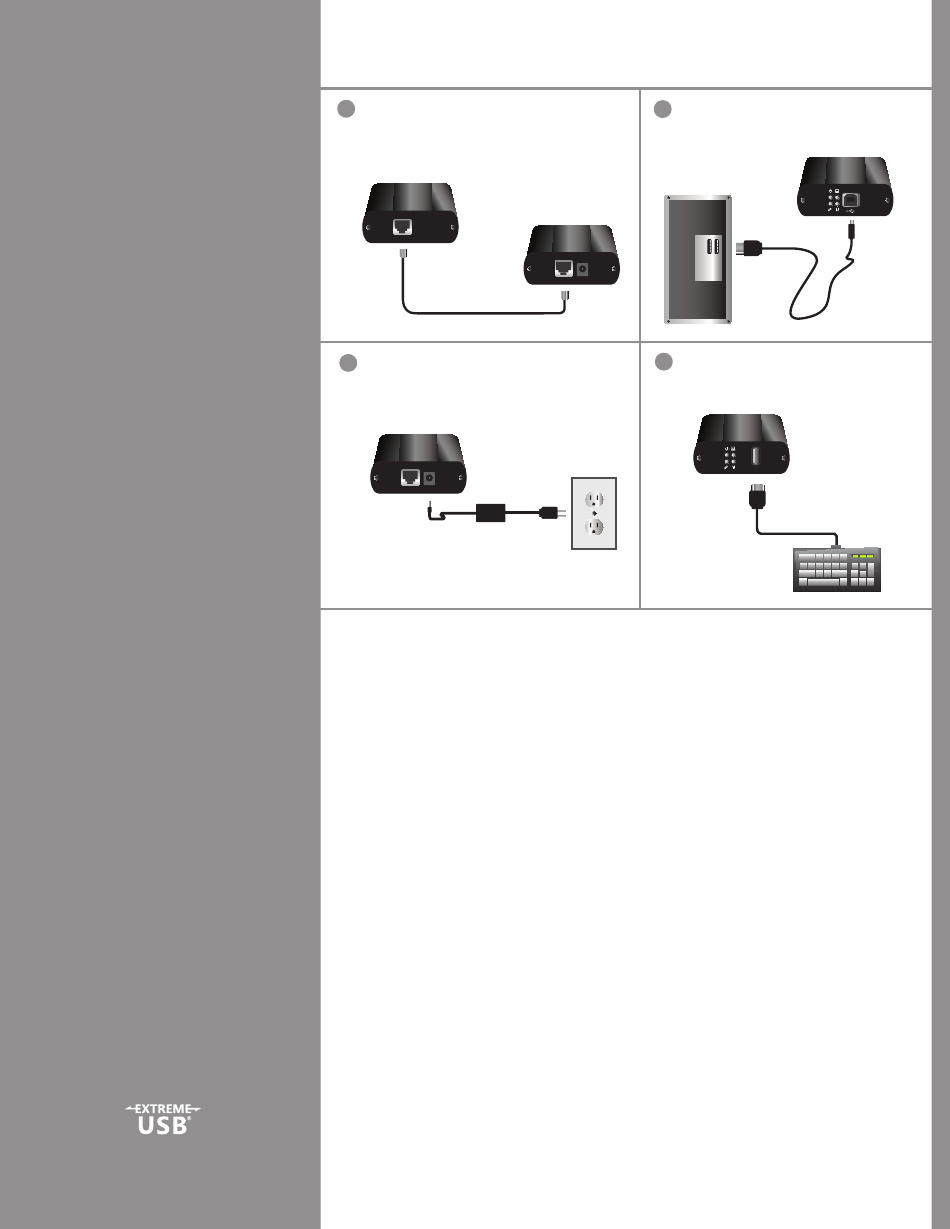

Place extenders where desired and connect
1 1
the CAT 5e/6/7 extension link cabling to the
Link ports (RJ45) on the Local and Remote
Extenders.
Local Extender (back view)
Remote Extender (back view)
Link
Max 100m
(CAT 5e/6/7 cable not included)
Connect the Remote Extender to the
3
AC adapter and plug it into a power
source.
Remote Extender (back view)
Link 5V DC
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Link 5V DC
Attach USB device to the Remote
4
Extender.
Remote Extender (front view)
Local Extender (front view)
