Icron RG2224 Quick Start Manual

USB 2.0 Ranger® 2224/
USB 2.0 Ranger® 2244
USB 2.0 Fiber Extender
Quick
Start
Guide
For additional details on con guration
and operation of your USB 2.0 Ranger
2224/2244, refer to the complete user
manual available online at:
icron.com/2224
icron.com/2244
For technical support with this product,
contact:
icron.com/support
Icron's USB and Video
Extension Solutions
▪ Pro AV
▪ KVM Extension
▪ Digital Signage
▪ Medical Imaging
▪ Industrial Automation
▪ Digital Projection
icron.com
Before you get started, ensure that all the drivers required for your USB device(s) are installed.
LEX = Local Extender, REX = Remote Extender

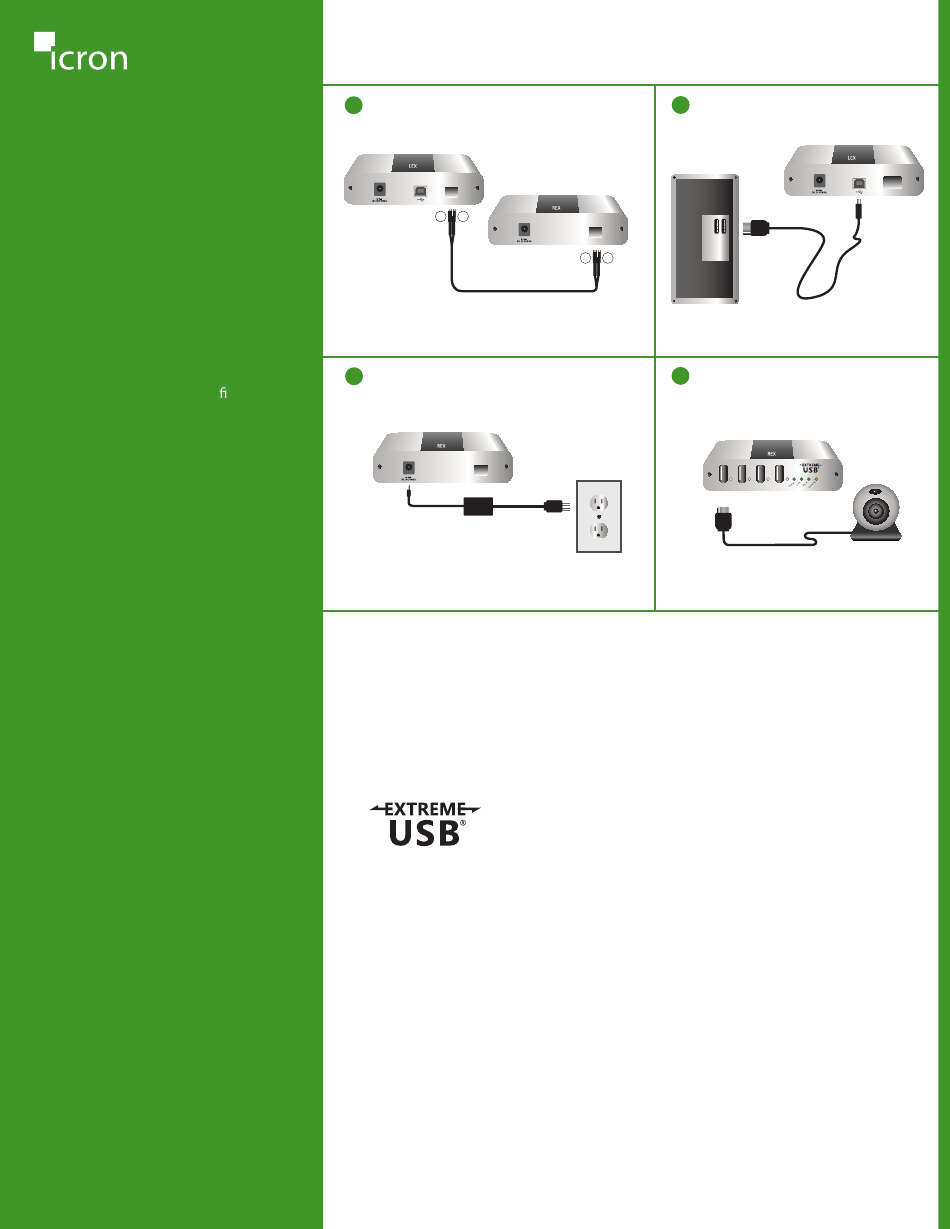

Place extenders where desired and connect
1 1
the fiber cable to the Link ports (SFP) on
the LEX and REX.
Link
A B
(LC-LC crossover duplex cable not included)
Max 500m multimode fiber for RG2224
Max 10km singlemode fiber for RG2244
Connect the REX to the AC adapter and
3
plug into a power source.
Link
Includes the ExtremeUSB® suite of features:
▪ Transparent USB extension
▪ True plug and play; no software drivers required
▪ Works with all major operating systems: Windows®,
Mac OS X®, and Linux®
Connect the LEX to the computer
2
using the included USB cable.
Computer
Link
A B
Note: Power adapter is not required at the
LEX for normal operation.
Attach USB device(s) to the REX.
4
Link
90-00652-A02
