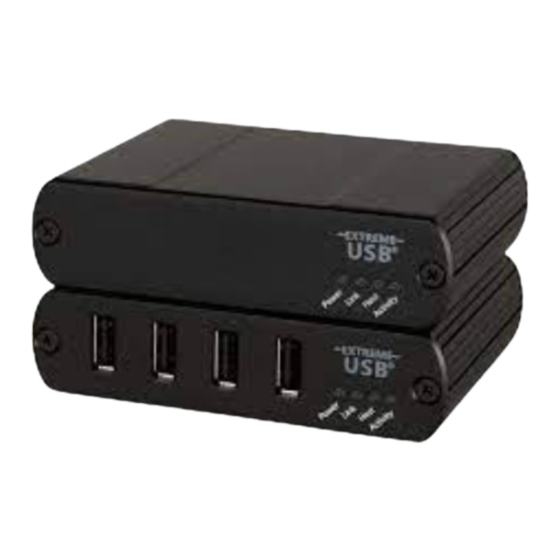

Icron RG2324 Quick Start Manual

USB 2.0 RG2324/
USB 2.0 RG2344
4-Port USB 2.0 Fiber Extender System
Quick
Start
Guide
Package Contents:
• USB 2.0 RG2324/2344 Local Extender
• USB 2.0 RG2324/2344 Remote Extender
• USB 2.0 Cable
• AC Power Adapter
• Country Speci c Power Cord
• Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

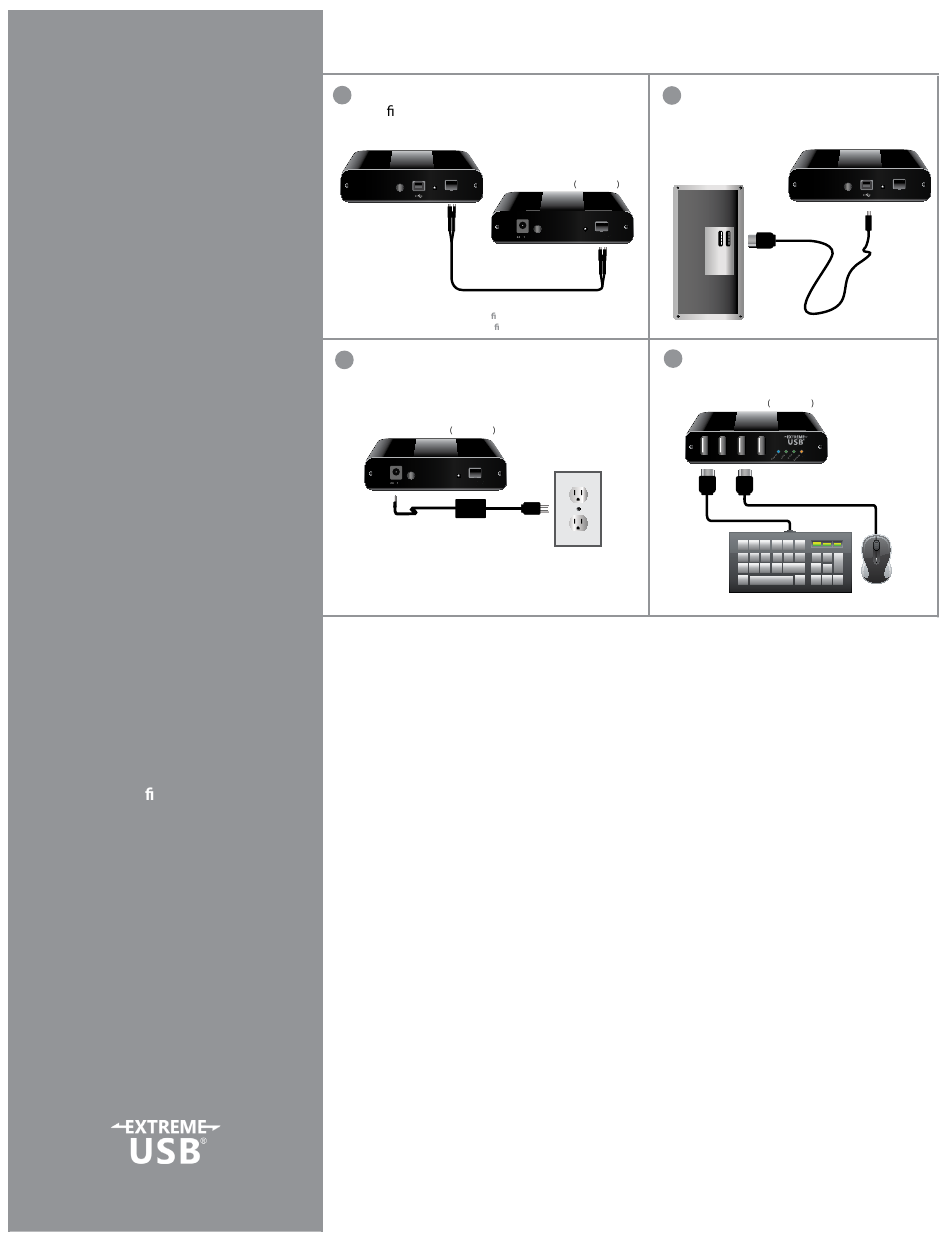

Place extenders where desired and connect
1
1
the ber cable to the Link ports (SFP) on the
Local and Remote Extenders.
Local Extender (back view)
Remote Extender back view
Config Mode Link
(LC-LC crossover duplex cable not included)
Max 500m multimode ber for RG2324
Max 10km singlemode ber for RG2344
Connect the Remote Extender to the
3
AC adapter and plug it into a power
source.
Remote Extender back view
V A Config Mode Link
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
V A Config Mode Link
Attach USB device(s) to the Remote
4
Extender.
Remote Extender front view
Local Extender (front view)
Config Mode Link
