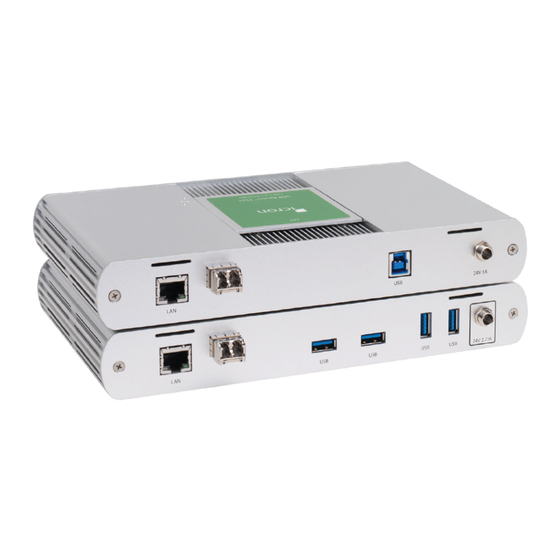

Icron Raven 3124 LEX Quick Start Manual

Icron USB 3-2-1 Raven™ 3124
4-Port USB 3.1, 200m Multimode Fiber
Point-to-Point Extender System
Quick
Start
Guide
Package Contents:
ƒ Icron USB 3-2-1 Raven 3124 LEX
ƒ Icron USB 3-2-1 Raven 3124 REX
ƒ USB 3.1 Gen 1 Cable
ƒ 24V 1A AC Adapter
ƒ 24V 2.71A AC Adapter
ƒ 2x Country Specific Power Cords
ƒ Quick Start Guide
For additional details about
configuring and operating your
Raven 3124, refer to the complete
online user guide at:
www.icron.com/3124
For technical support visit:
www.icron.com/support
Before you get started, ensure that all the drivers required for your USB device s are installed.
LEX = Local Extender, REX = Remote Extender
1

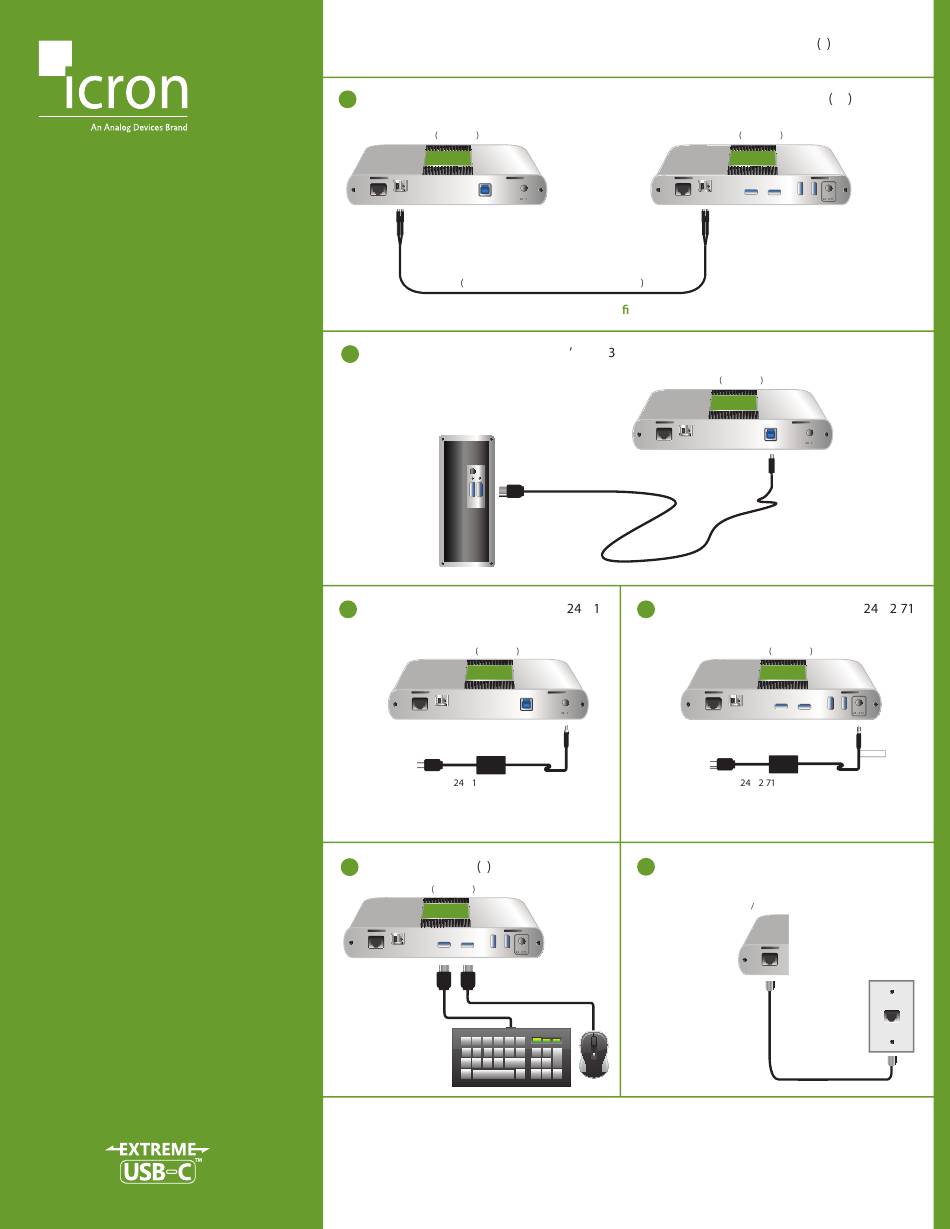

Place extenders where desired and connect the fiber cable to the Link ports LC on the
1 1
LEX and REX.
LEX back view
Link
LAN USB
LC-LC crossover duplex cable not included
Max 200m OM3 multimode ber
Connect the LEX to the computer s USB port using the included USB cable.
2
Computer
3 3
Power the LEX with the included
AC adapter and tighten the locking ring.
LEX back view
Link
LAN
V A AC adapter
Attach USB device s to the REX.
5
REX back view
Link
LAN USB USB USB USB
Includes the ExtremeUSB-C™ suite of features:
▪ Transparent USB extension supporting USB 3, 2 and 1
▪ True plug and play; no software drivers required
▪ Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
V A LAN
Link
LAN
3 4 4
V A Power the REX with the included
AC adapter and tighten the locking ring.
USB V A
Optional: Connect LEX and REX LAN ports
6
to a network or device as necessary.
V . A
REX back view
Link
USB USB USB USB V . A
LEX back view
USB V A
V . A
REX back view
Link
LAN USB USB USB USB V . A
DC 24V / 2.71A
V . A AC adapter
LEX REX LAN Port
LAN
