Icron USB 2.0 RG2304GE-LAN User Manual
Usb 2.0 4-port usb 2.0 gigabit ethernet lan extender system
Hide thumbs
Also See for USB 2.0 RG2304GE-LAN:
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Related Manuals for Icron USB 2.0 RG2304GE-LAN
Summary of Contents for Icron USB 2.0 RG2304GE-LAN
-
Page 1: User Guide

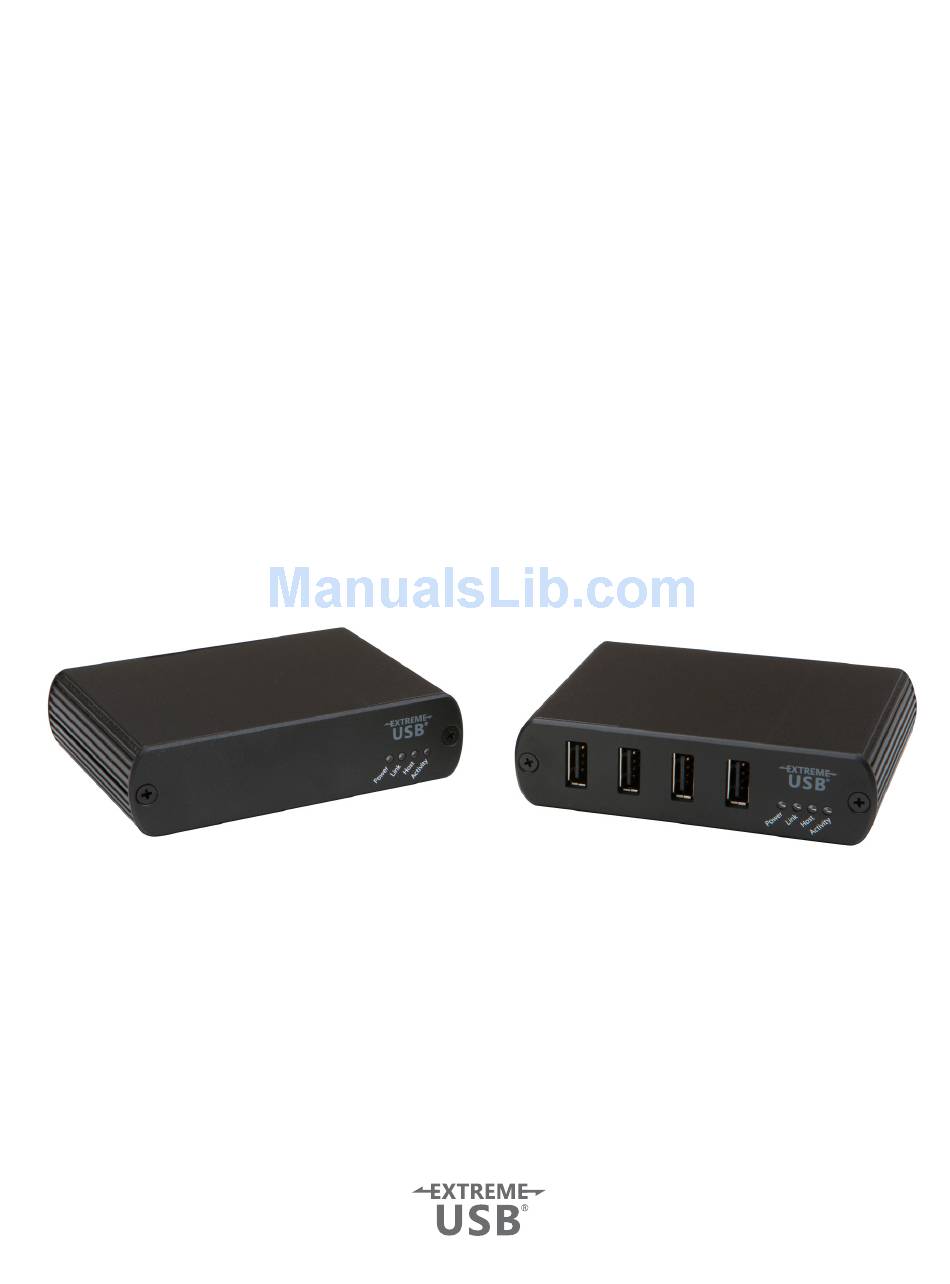

USB 2.0 RG2304GE-LAN 4-Port USB 2.0 Gigabit Ethernet LAN Extender System User Guide... - Page 2 Thank you for purchasing the USB 2.0 RG2304GE-LAN. Please read this guide thoroughly. This document applies to Part Numbers: 01-00453, 01-00454, 01-00455, 01-00456, 02-00030, and 02-00031. FCC Radio Frequency Interference Statement Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Contents Introduction ......................3 RG2304GE-LAN Product Contents ....................3 Features ..............................3 The Local Extender ..........................4 The Remote Extender ........................5 Installation Guide ....................6 Installing the RG2304GE-LAN System on a Local Area Network ........6 Requirements ............................6 Preparing your Network ........................6 Preparing Your Site .......................... -
Page 4: Introduction
Introduction This guide provides product information for the RG2304GE-LAN, installation instructions, troubleshooting guidelines, and instructions for contacting Icron regarding technical support and warranty information. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. note NOTE: Notes provide additional information that could be useful. -
Page 5: The Local Extender
The Local Extender The Local Extender connects to the computer using a standard USB 2.0 cable. Power for this unit is provided by the the host computer. Front View Rear View ITEM TYPE DESCRIPTION Power LED LED turns on when power is supplied, off when no power is supplied by the (Blue) Host computer. -
Page 6: The Remote Extender
The Remote Extender The Remote Extender provides USB Type A ports for standard USB devices. The Remote Extender allows you to connect up to four USB devices directly. Additional devices may be connected by attaching USB hubs to the Remote Extender. The Remote Extender is powered by an external AC adapter and can supply up to 500mA to each USB port. -
Page 7: Installation Guide
Installation Guide Installing the RG2304GE-LAN System on a Local Area Network Requirements To complete the installation, you will also require the following items that are not included with the product: • USB compatible computer (host computer) with a USB compliant operating system •... -
Page 8: Preparing Your Site
Preparing Your Site Before you can install the RG2304GE-LAN, you need to prepare your site: Place the computer where desired and set it up. Ensure that where you want to locate the USB device(s) is within 100m of Cat 5e cabling of the switch. Ensure that where you want to locate the computer is within 100m of Cat 5e cabling of the switch. -
Page 9: Installing The Rg2304Ge-Lan System As Direct Connect
Installing the RG2304GE-LAN System as Direct Connect Requirements To complete the installation, you will also require the following items that are not included with the product: • USB compatible computer (host computer) with a USB compliant operating system • USB compatible device(s) •... -
Page 10: Installing The Local Extender
Installing the Local Extender Place the Local Extender near the computer. Connect the supplied USB cable between the LEX host port and a USB port on the host computer. Connecting the Local Extender to the Remote Extender With Surface Cabling Connect the Cat 5e cable into the Link port of the Local Extender. -
Page 11: Checking The Installation
Checking the Installation On the Local and Remote Extender, check that the Power, Status, Link and Host LEDs are on. • For direct connect, if the Host or Link LEDs are permanently off, then the cabling between the Local and Remote Extender may not be installed properly or is defective. •... -
Page 12: Connecting A Usb Device
Compatibility The USB 2.0 RG2304GE-LAN complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, there is no guarantee that all USB devices or hosts will be compatible with the RG2304GE- LAN, as there are a number of different characteristics that may impact the operation of USB devices over... -
Page 13: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 14 PROBLEM CAUSE SOLUTION Link LED on the • The extenders are paired with 1. Wait for a few minutes for the LEDs to go solid. Local and the each other but have not yet Remote Extenders established a link. 2. If LEDs do not go solid, contact your network are blinking slowly.
-
Page 15: Technical Glossary
Extender unit and Remote Extender unit. You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as the USB 2.0 RG2304GE-LAN requires all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors. Note that any given cable must be terminated using the same T568 scheme on both ends to operate correctly. -
Page 16: Specifications
Specifications RANGE Direct Connect Up to 100m (330 ft) over solid core Cat 5e or better Network Connect Up to 100m (330 ft) between switches over solid core Cat 5e USB DEVICE SUPPORT Maximum Throughput Up to 480Mbps* Traffic Types All Traffic Types Device Types All Device Types...
