DO
DM-XIO-DIR-80/DM-XIO-DIR-160

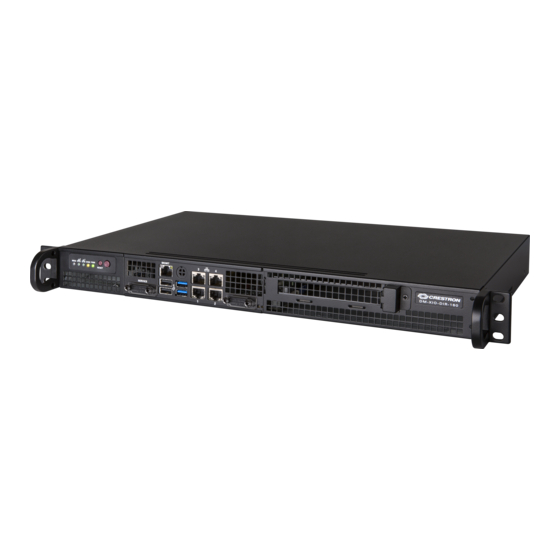

DigitalMedia™ XiO Director Virtual Switching Appliance

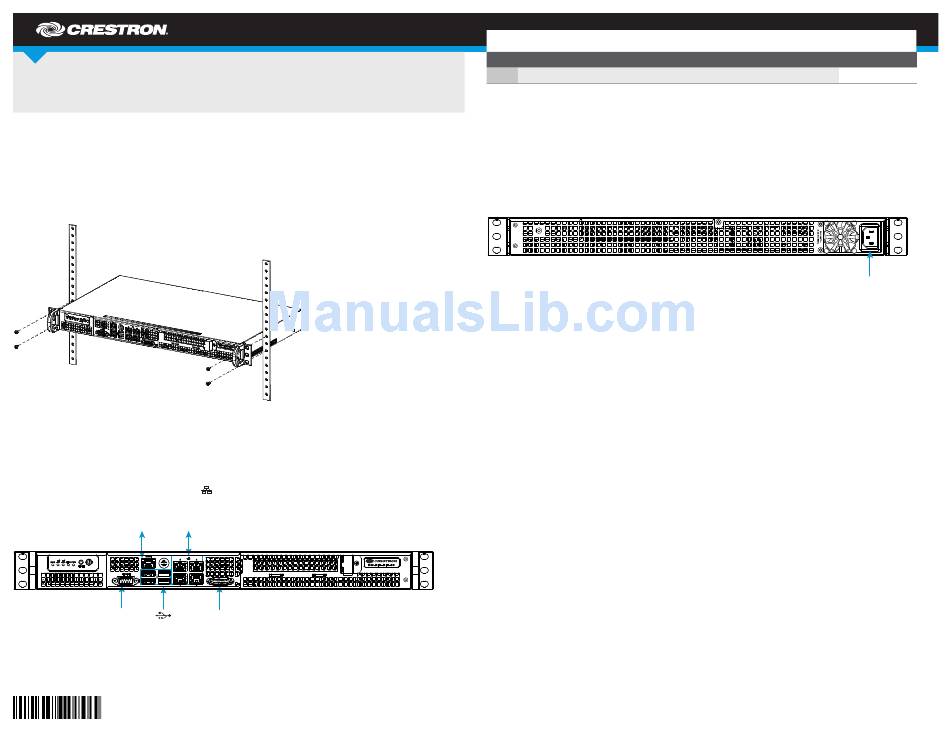

Install the Device
DO
The Crestron DM-XIO-DIR-80 and DM-XIO-DIR-160 can be mounted into a rack. Each device
®
occupies 1U of rack space.
WARNING: Do not lift the device using the front handles. The handles are designed to assist in
pulling the device from a rack.
Mount the device into a rack using four mounting screws (not included).
DO Connect the Device
Connect the device as required for the application.
Front Panel Connections
MGMT:
10BASE-T/100BASE-TX/ 10BASE-T/100BASE-TX/
1000BASE-T Ethernet to
1000BASE-T Ethernet to
management network video or control network
SERVICE:
For factory
For factory
use only
use only
GUIDE
1–4:
For factory
use only
DO Check the Box
QTY PRODUCT
1 Power Cord
NOTE: The MGMT port is used for management and monitoring of the DM-XIO-DIR hardware.
The MGMT port does not provide access to the DM-XIO-DIR software and is independent of
Ethernet ports 1–4.
NOTE: Ethernet ports 1–4 provide access to the DM-XIO-DIR software and allow configuration of
the software. The ports are independent of each other and have different network settings.
Rear Panel Connections
DO Configure the Device
Using the web interface, configure the DM-XIO-DIR software. To access the web interface, open a
web browser and then go to the IP address of any one of the connected Ethernet ports labeled 1–4.
NOTE: By default, DHCP is enabled and each of the Ethernet ports labeled 1–4 is automatically
assigned a different IP address. If a DHCP server does not exist on the network, the IP address of
each of the four Ethernet ports defaults to a link-local address in the 169.254.xxx.xxx range (refer to
RFC 3927 for information about link-local addressing). The link-local address is different for each of
the four Ethernet ports. To find the IP address of any of the connected Ethernet ports (1-4), use the
Device Discovery Tool in the Crestron Toolbox™ software.
NOTE: The Ethernet port that is being used to configure the DM-XIO-DIR software must be
accessible from the networks of the device running the web browser, the associated DM-NVX
devices, and the control system (if present).
To log in to the web interface, enter the user name and password. The default user name is admin,
and the default password is admin.
PART NUM.
2050011
100-240V~
2-4A 50/60Hz:
From ac
power outlet
