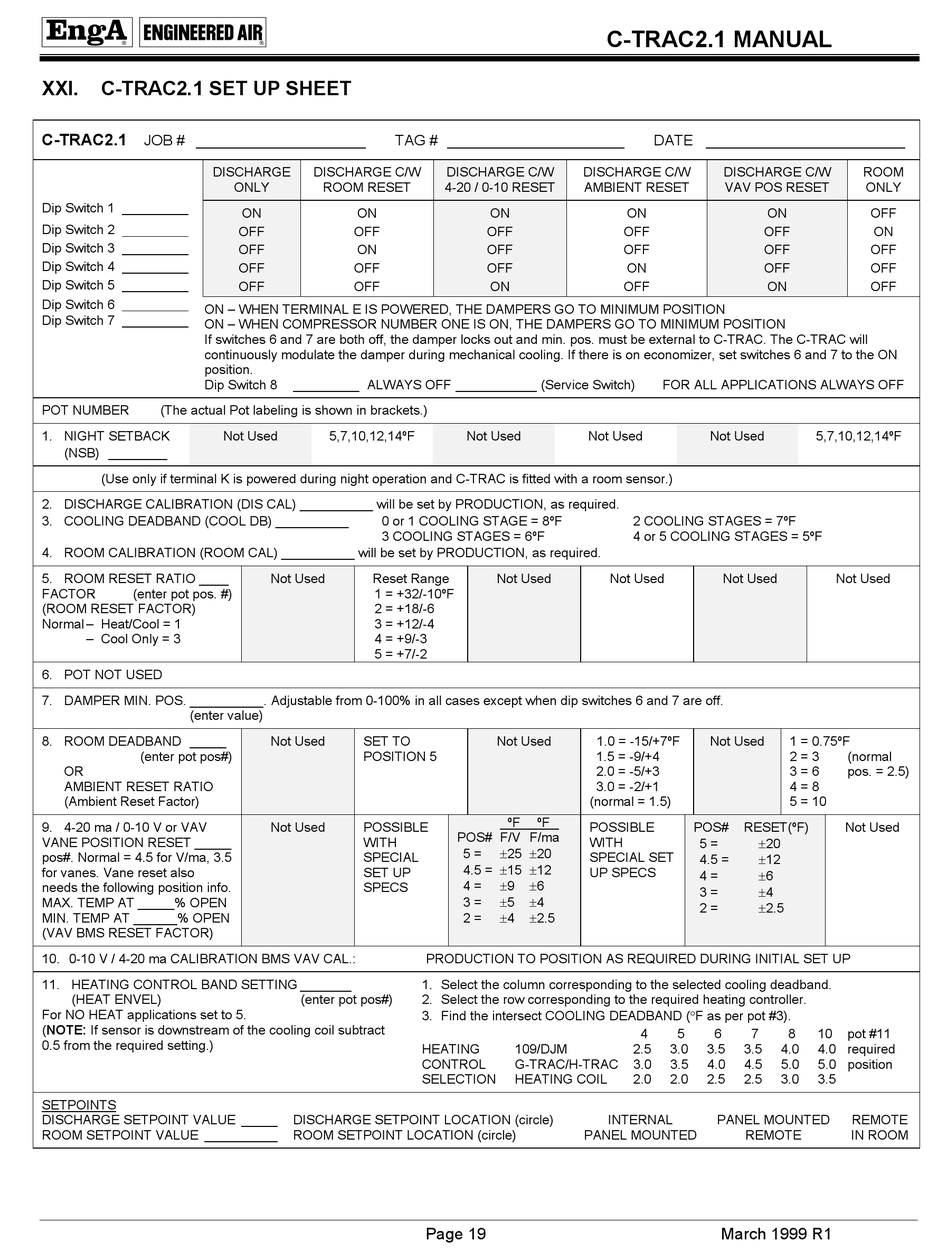

C-TRAC2.1 SET UP SHEET

C-TRAC2.1
JOB #
DISCHARGE
Dip Switch 1
Dip Switch 2
Dip Switch 3
Dip Switch 4
Dip Switch 5
Dip Switch 6
ON – WHEN TERMINAL E IS POWERED, THE DAMPERS GO TO MINIMUM POSITION
Dip Switch 7
ON – WHEN COMPRESSOR NUMBER ONE IS ON, THE DAMPERS GO TO MINIMUM POSITION
If switches 6 and 7 are both off, the damper locks out and min. pos. must be external to C-TRAC. The C-TRAC will
continuously modulate the damper during mechanical cooling. If there is on economizer, set switches 6 and 7 to the ON
position.
Dip Switch 8
POT NUMBER (The actual Pot labeling is shown in brackets.)
1. NIGHT SETBACK
(NSB)
(Use only if terminal K is powered during night operation and C-TRAC is fitted with a room sensor.)
2. DISCHARGE CALIBRATION (DIS CAL) __________ will be set by PRODUCTION, as required.
3. COOLING DEADBAND (COOL DB) __________
4. ROOM CALIBRATION (ROOM CAL) __________ will be set by PRODUCTION, as required.
5. ROOM RESET RATIO ____
FACTOR (enter pot pos. #)
(ROOM RESET FACTOR)
Normal – Heat/Cool = 1
– Cool Only = 3
6. POT NOT USED
7. DAMPER MIN. POS.
(enter value)
8. ROOM DEADBAND
(enter pot pos#)
OR
AMBIENT RESET RATIO
(Ambient Reset Factor)
9. 4-20 ma / 0-10 V or VAV
VANE POSITION RESET _____
pos#. Normal = 4.5 for V/ma, 3.5
for vanes. Vane reset also
needs the following position info.
MAX. TEMP AT _____% OPEN
MIN. TEMP AT ______% OPEN
(VAV BMS RESET FACTOR)
10. 0-10 V / 4-20 ma CALIBRATION BMS VAV CAL.:
11. HEATING CONTROL BAND SETTING _______
(HEAT ENVEL)
For NO HEAT applications set to 5.
(NOTE: If sensor is downstream of the cooling coil subtract
0.5 from the required setting.)
SETPOINTS
DISCHARGE SETPOINT VALUE
ROOM SETPOINT VALUE
TAG #
DISCHARGE C/W
ONLY ROOM RESET
ON ON
OFF OFF
OFF ON
OFF OFF
OFF OFF
ALWAYS OFF
Not Used 5,7,10,12,14ºF
0 or 1 COOLING STAGE = 8ºF
3 COOLING STAGES = 6ºF
Not Used Reset Range
1 = +32/-10ºF
2 = +18/-6
3 = +12/-4
4 = +9/-3
5 = +7/-2
. Adjustable from 0-100% in all cases except when dip switches 6 and 7 are off.
Not Used SET TO
POSITION 5
Not Used POSSIBLE
WITH
SPECIAL
SET UP
SPECS
(enter pot pos#)
DISCHARGE SETPOINT LOCATION (circle)
ROOM SETPOINT LOCATION (circle)
DISCHARGE C/W DISCHARGE C/W
4-20 / 0-10 RESET AMBIENT RESET
ON
OFF
OFF
OFF
ON
(Service Switch)
Not Used Not Used
Not Used
Not Used 1.0 = -15/+7ºF
1.5 = -9/+4
2.0 = -5/+3
3.0 = -2/+1
(normal = 1.5)
ºF ºF
POSSIBLE
POS# F/V F/ma
WITH
25 20
5 =
SPECIAL SET
4.5 = 15 12
UP SPECS
9 6
4 =
5 4
3 =
4 2.5
2 =
PRODUCTION TO POSITION AS REQUIRED DURING INITIAL SET UP
1. Select the column corresponding to the selected cooling deadband.
2. Select the row corresponding to the required heating controller.
3. Find the intersect COOLING DEADBAND (F as per pot #3).
HEATING 109/DJM
CONTROL G-TRAC/H-TRAC
SELECTION HEATING COIL
PANEL MOUNTED
