A
1. Discharge (first).
2. Room, return, or ambient (second).
3. Current, voltage, or vane position (last).

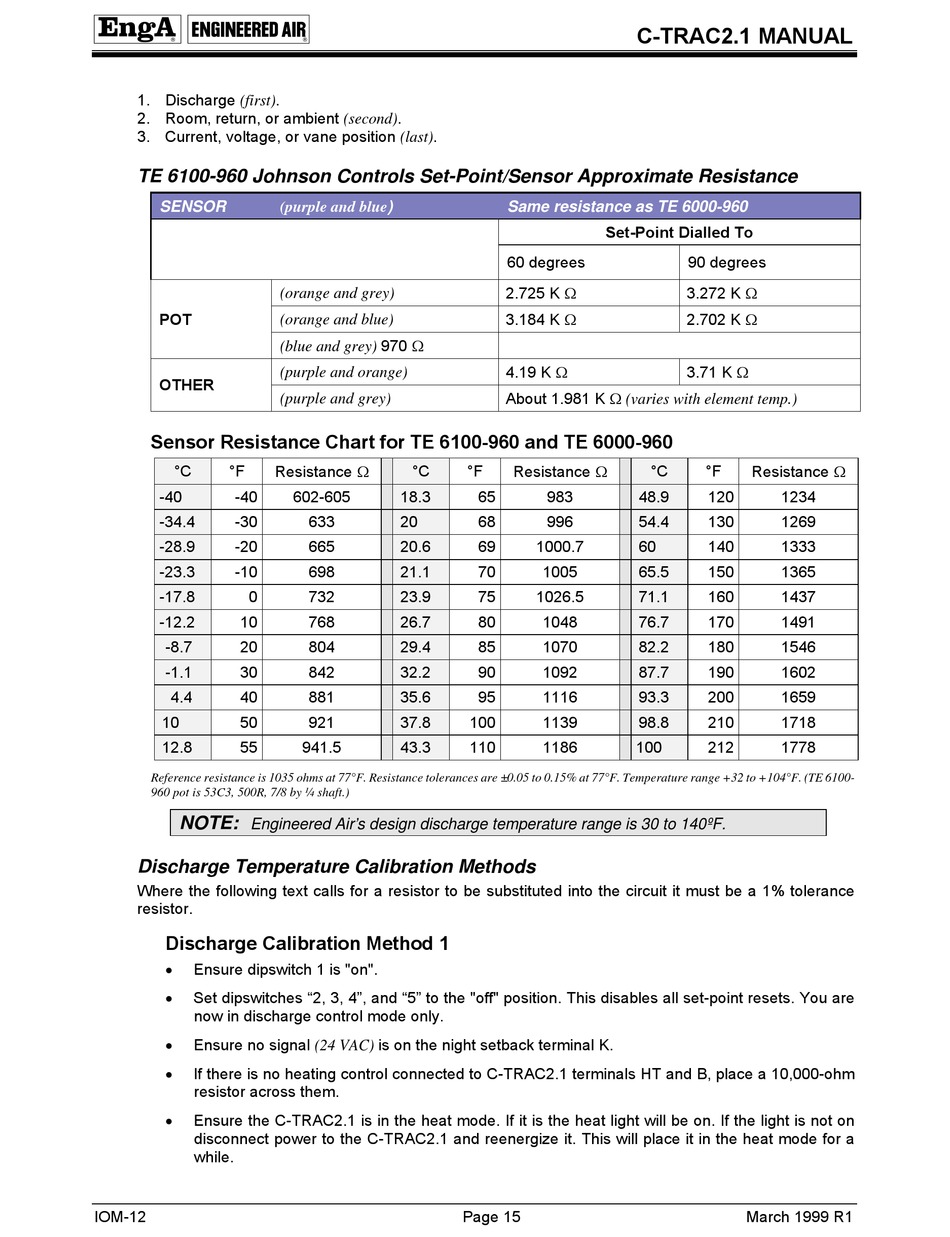

TE 6100-960 Johnson Controls Set-Point/Sensor Approximate Resistance

SENSOR
POT
OTHER

Sensor Resistance Chart for TE 6100-960 and TE 6000-960

°C °F
-40 -40
-34.4 -30
-28.9 -20
-23.3 -10
-17.8 0
-12.2 10
-8.7 20
-1.1 30
4.4 40
10 50
12.8 55
Reference resistance is 1035 ohms at 77°F. Resistance tolerances are ±0.05 to 0.15% at 77°F. Temperature range +32 to +104°F. (TE 6100-
960 pot is 53C3, 500R, 7/8 by ¼ shaft.)
NOTE:
Engineered Air's design discharge temperature range is 30 to 140ºF.

Discharge Temperature Calibration Methods

Where the following text calls for a resistor to be substituted into the circuit it must be a 1% tolerance
resistor.

Discharge Calibration Method 1


Ensure dipswitch 1 is "on".

Set dipswitches "2, 3, 4", and "5" to the "off" position. This disables all set-point resets. You are
now in discharge control mode only.

Ensure no signal (24 VAC) is on the night setback terminal K.

If there is no heating control connected to C-TRAC2.1 terminals HT and B, place a 10,000-ohm
resistor across them.

Ensure the C-TRAC2.1 is in the heat mode. If it is the heat light will be on. If the light is not on
disconnect power to the C-TRAC2.1 and reenergize it. This will place it in the heat mode for a
while.
IOM-12
(purple and blue)
(orange and grey)
(orange and blue)
(blue and grey) 970 
(purple and orange)
(purple and grey)
Resistance 
°C
602-605 18.3
633 20
665 20.6
698 21.1
732 23.9
768 26.7
804 29.4
842 32.2
881 35.6
921 37.8
941.5 43.3
C-TRAC2.1 MANUAL
Same resistance as TE 6000-960
Set-Point Dialled To
60 degrees
2.725 K 
3.184 K 
4.19 K 
About 1.981 K  (varies with element temp.)
Resistance 
°F
65 983 48.9
68 996 54.4
69 1000.7 60
70 1005 65.5
75 1026.5 71.1
80 1048 76.7
85 1070 82.2
90 1092 87.7
95 1116 93.3
100 1139 98.8
110 1186 100
Page 15
90 degrees
3.272 K 
2.702 K 
3.71 K 
Resistance 
°C °F
120 1234
130 1269
140 1333
150 1365
160 1437
170 1491
180 1546
190 1602
200 1659
210 1718
212 1778
March 1999 R1
