EngA G-TRAC 1.1 Installation, Operation And Maintenance Manual

Indirect fired heating controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

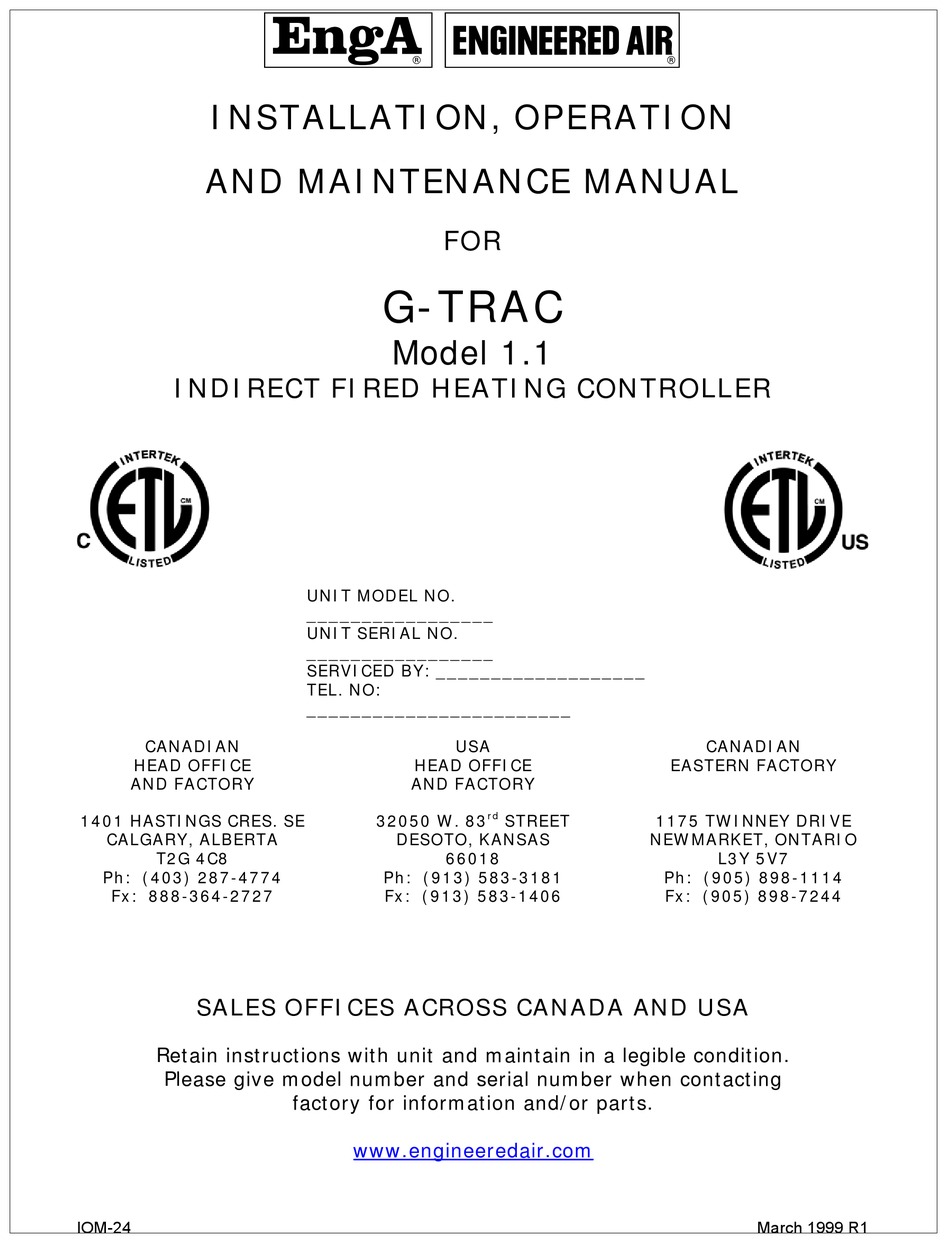

A
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL
FOR
G-TRAC
Model 1.1
INDIRECT FIRED HEATING CONTROLLER
UNIT MODEL NO.
_________________
UNIT SERIAL NO.
_________________
SERVICED BY: ___________________
TEL. NO:
________________________
CANADIAN
USA
CANADIAN
HEAD OFFICE
HEAD OFFICE
EASTERN FACTORY
AND FACTORY
AND FACTORY
rd
1401 HASTINGS CRES. SE
32050 W. 83
STREET
1175 TWINNEY DRIVE
CALGARY, ALBERTA
DESOTO, KANSAS
NEWMARKET, ONTARIO
T2G 4C8
66018
L3Y 5V7
Ph: (403) 287-4774
Ph: (913) 583-3181
Ph: (905) 898-1114
Fx: 888-364-2727
Fx: (913) 583-1406
Fx: (905) 898-7244
SALES OFFICES ACROSS CANADA AND USA
Retain instructions with unit and maintain in a legible condition.
Please give model number and serial number when contacting
factory for information and/or parts.
www.engineeredair.com
IOM-24
March 1999 R1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-TRAC 1.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EngA G-TRAC 1.1

Summary of Contents for EngA G-TRAC 1.1

  • Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL G-TRAC Model 1.1 INDIRECT FIRED HEATING CONTROLLER UNIT MODEL NO. _________________ UNIT SERIAL NO. _________________ SERVICED BY: ___________________ TEL. NO: ________________________ CANADIAN CANADIAN HEAD OFFICE HEAD OFFICE EASTERN FACTORY AND FACTORY AND FACTORY 1401 HASTINGS CRES. SE 32050 W.

  • Page 2: Table Of Contents

    G-TRAC MANUAL TABLE OF CONTENTS PURPOSE ........................ 1 CAUTION ......................... 1 III. SIMPLIFIED OPERATION ..................1 TEMPERATURE CONTROL ..................2 G-TRAC as a Slave to the CTRAC ...................... 2 Suggested Settings Re Hunting Problems ..................2 G-TRAC as a “Stand Alone Device” ....................2 MASTER SET-POINT ....................
  • Page 3 G-TRAC MANUAL Method 3 ............................... 8 Method 4 (May correct minor electrical noise on remote wire) ..............8 BMS RESET OF THE DISCHARGE AIR TEMPERATURE ........8 POTENTIOMETERS ON THE G-TRAC ..............10 XII. DIAGNOSTIC LIGHTS ................... 10 Heat Call Light ............................ 10 Pre-Purge Timer Light ........................
  • Page 4 G-TRAC MANUAL ESTIMATED POT SETTINGS (Use for situations where design values not available) ......16 Combustion Set Up ..........................17 High Fire Combustion Set Up ....................17 Low Fire Combustion Set Up ..................... 17 Mid-Fire Range Combustion Set Up ..................17 CHECK OUT FOR G-TRAC-1 NORMAL OPERATION ............

  • Page 5: Purpose

    G-TRAC MANUAL G-TRAC CONTROL FOR MODULATING DG UNITS If you note any errors, omissions, or items that require further clarification, please contact Wade Pascoe at (403) 287-4775 or Fax (403) 287-4799 or (403) 243-5059. To ensure warranty is honoured, only a qualified HVAC service person or gas fitter that has received training on the G-TRAC, should be employed for service and troubleshooting.

  • Page 6: Temperature Control

    G-TRAC MANUAL  The flame relay (external to the G-TRAC) energizes the ignition transformer and pilot solenoid valve.  When the pilot is established, the flame relay will power the main gas valve and shut off the spark.  The G-TRAC and its associated controls maintain the discharge air temperature. If the rise in discharge air temperature at low fire is greater than that required to satisfy the set-point, it is necessary to cycle the burner on and off.

  • Page 7: Master Set-Point

    G-TRAC MANUAL V. MASTER SET-POINT TE 6100 Wiring Connections and Resistance Values As a SET POINT, the G TRAC is designed to use either:  The set point pot 4 (auxillary setpoint) (range of 12-35°C or 55-95°F). If the G-TRAC pot 4 auxillary set-point is used, terminals “SP and S”...

  • Page 8: Sensor Resistance Chart For Te 6100-960 And Te 6000-960

    G-TRAC MANUAL TE 6000 SENSOR SENSOR Resistance in table below (purple and blue) Sensor Resistance Chart for TE 6100-960 and TE 6000-960 °C °F Resistance  °C °F Resistance  °C °F Resistance  602-605 18.3 48.9 1234 -34.4 54.4 1269 -28.9 20.6...

  • Page 9: Example 1

    G-TRAC MANUAL Example 1 Discharge Room Room Reset High Discharge Low Discharge Set-point Ratio (Pot 2) Room Call Max Room Call Min Set point Pos 3 = 14 70ºF 72°F 84°F 56°F As the room temperature deviates from 72ºF it can modify the discharge temperatures up to as high as 84ºF and as low as 56ºF.

  • Page 10: Multiple Room Sensors

    G-TRAC MANUAL Multiple Room Sensors Four sensors can be wired to give an average reading of room temperatures to the Trac cntrol. They must be wired in a series/parallel arrangement. The drawing shows a circuit making use of the built in sensor in the T#6100 Johnson Sensor/set point assembly and using TE6000 sensors for the other three.

  • Page 11: Method 1

    G-TRAC MANUAL  Jumper the combustion blower.  Jumper the flame relay terminals.  Place a Q209 Honeywell 140 ohm pot on the V9055 valve to modulate it to a fixed position and allow it to run until discharge air temperature is stable in the modulated area of the valve stroke and between 55 to 90ºF.

  • Page 12: Method 3

    G-TRAC MANUAL  Place a 1005-ohm resistor across G-TRAC terminals "X and Z" to simulate 70°F (21°C).  Connect the TE 6100-960 set-point to the G-TRAC terminals as follows: 1. BLUE to G-TRAC terminal Z 2. ORANGE to G-TRAC terminal Y 3.
  • Page 13 G-TRAC MANUAL Approximate relationship between 0-10 VDC and 4-20 ma signal. Note: zero reset less than 2 VDC or less than 1 ma There is a possibility of a grounded BMS signal that is not fully recognized by the G-TRAC. This occurs when the BMS control signal’s negative wire and the G-TRAC’s 24 volt power supply both have a grounded negative or common terminal.

  • Page 14: Potentiometers On The G-Trac

    G-TRAC MANUAL XI. POTENTIOMETERS ON THE G-TRAC P1 DISCHARGE CALIBRATION – Factory set as required. Do not readjust without insuring that no reset signals are affecting discharge temperature (Page 7). P2 ROOM RESET RATIO – This sets the amount of authority the room reset will have on the set-points desired discharge.

  • Page 15: Pre-Purge Timer Light

    G-TRAC MANUAL Pre-Purge Timer Light The pre-purge timer light will activate when there is a call for heat and the burner is in the pre-purge mode. The combustion blower should be running but there should be no flame. When this light goes out, if the heat call is still present, the burner-enabled light will come on.

  • Page 16: No Heat (Burner Not Firing)

    G-TRAC MANUAL No Heat (Burner Not Firing) G-TRAC DIAGNOSTIC LIGHTS PRE- COMBUS- HEAT BURNER OPERATING CONDITIONS OR PROBLEM PURGE TION CALL ENABLED DIAGNOSIS TIMER BLOWER No heat call. Check if “HS” is powered. Check discharge and/or reset sensors and set points. Shorted combustion air switch or faulty combustion fan motor.

  • Page 17: Over Delivering Air

    G-TRAC MANUAL Over Delivering Air At the time of installation and air balancing, the unit is often set-up in warmer weather then the design temperature rise. If the air balancer did not allow for the changes that will occur in air volume in cold weather then the unit will appear to be short of temperature rise.

  • Page 18: Over Heating

    G-TRAC MANUAL heat 100% outside air is operating with very little outside air, therefore operating at a low fire or cycling. This allows the cool flue gases from low fire to cool and condense in the chimney. Over Heating G-TRAC DIAGNOSTIC LIGHTS PRE- HEAT BURNER...

  • Page 19: B" And "C" Burner Electrode Detail

    G-TRAC MANUAL after the main shut off valve still flowing due to its pressure and airflow patterns. Possible solutions to stop flame failures due to residual flame are: A. Slightly increase the quantity of low fire air to the burner to blow out the residual flame. B.

  • Page 20: To Set The Maintain Purge Time Delay

    G-TRAC MANUAL Time (Jumpers) Time (Jumpers) Time (Jumpers) Time (Jumpers) 0:0 (1111) 0:15 (0111) 0:45 (1011) 1:15 (0011) 1:45 (1101) 2:15 (0101) 2:45 (1001) 3:15 (0001) 4:15 (0110) 4:45 (1010) 5:15 (0010) 3:45 (1110) 5:45 (1100) 6:15 (0100) 6:45 (1000) 7:15 (0000) TO SET THE MAINTAIN PURGE TIME DELAY Maintain Purge Time Delay is set by cutting the “maintain purge”...

  • Page 21: Combustion Set Up

    G-TRAC MANUAL Combustion Set Up When measuring combustion, ensure probe of analyzer inserts fully in to the flue connection to the heat exchanger. Measuring at the flue outlet may be a diluted reading due to air mixing into the flue. High Fire Combustion Set Up Turn unit off.

  • Page 22: Check Out For G-Trac-1 Normal Operation

    G-TRAC MANUAL CHECK OUT FOR G-TRAC-1 NORMAL OPERATION **Following flow chart covers many general operating/troubleshooting situations. If a more detailed manual is needed, contact the nearest EngA Factory. 24 VAC power to terminals H and N Is 24 VAC preset on ‘HS” and N? Supply fan should start within 34 sec.
  • Page 23 IOM-24 Page i March 1999 R1...
