Option 3 - Room Sensor Only; Multiple Room Sensors; Te 6100-960 Room Or R/A Set-Point/Sensor C/W Dipswitch 3 "On - EngA C-TRAC2 Installation, Operation And Maintenance Manual

A
Discharge sensor/set-point
Blue
Grey
Orange
:
NOTE
Do not use the sensor (violet wire) on the TE 6100-960 if it is being used only as a
remote discharge set point
Use a separate TE 6000-960 sensor for a discharge sensor
Violet
Violet

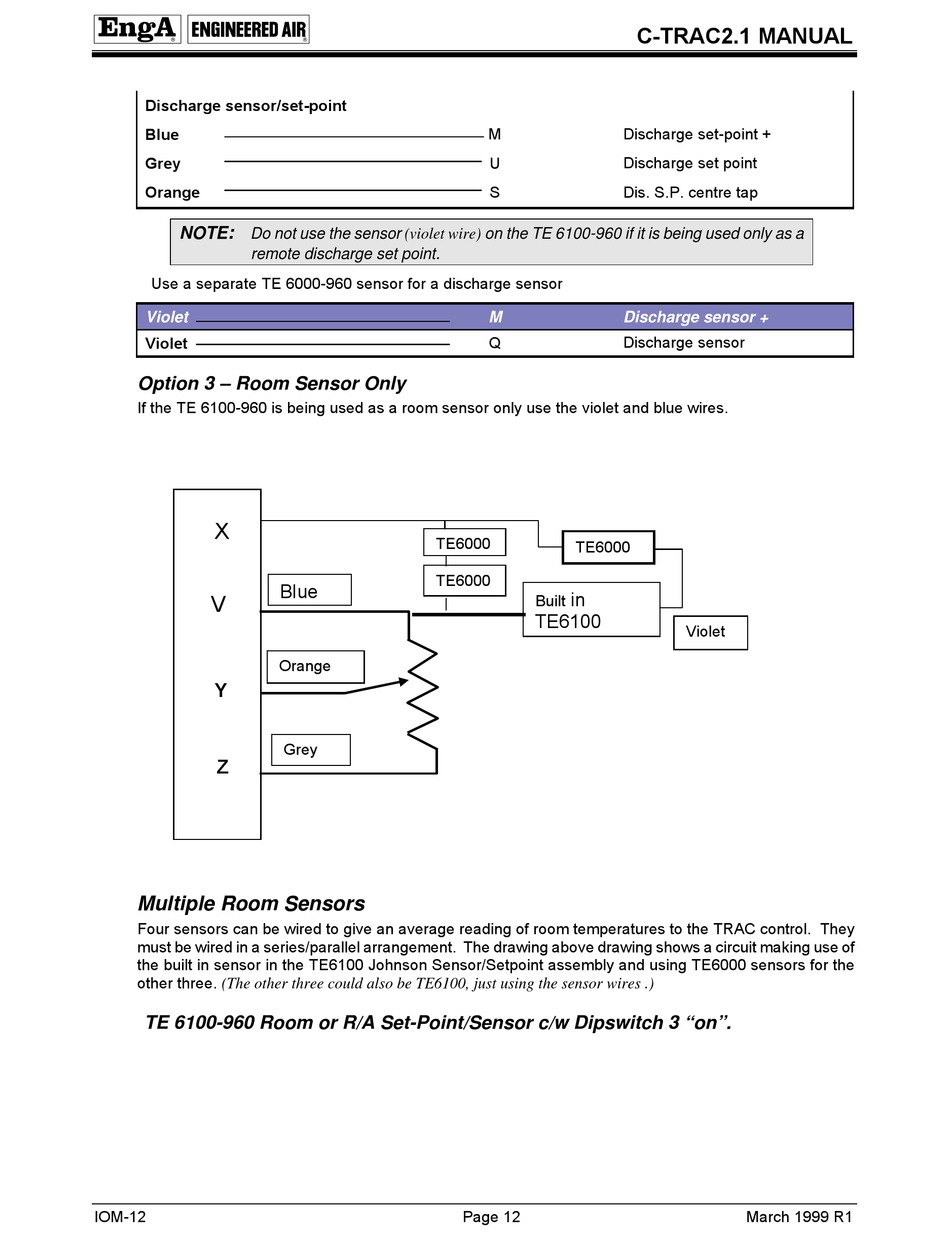

Option 3 – Room Sensor Only
If the TE 6100-960 is being used as a room sensor only use the violet and blue wires.
X
V
Y
Z

Multiple Room Sensors

Four sensors can be wired to give an average reading of room temperatures to the TRAC control. They
must be wired in a series/parallel arrangement. The drawing above drawing shows a circuit making use of
the built in sensor in the TE6100 Johnson Sensor/Setpoint assembly and using TE6000 sensors for the
other three. (The other three could also be TE6100, just using the sensor wires .)

TE 6100-960 Room or R/A Set-Point/Sensor c/w Dipswitch 3 "on".

IOM-12
.
TE6000
TE6000
Blue
Orange
Grey
C-TRAC2.1 MANUAL
M Discharge set-point +
Discharge set point
U
S Dis. S.P. centre tap
M Discharge sensor +
Q Discharge sensor
TE6000
in
Built
TE6100
Page 12
Violet
March 1999 R1
