Connects2 CAM-1 User Manual

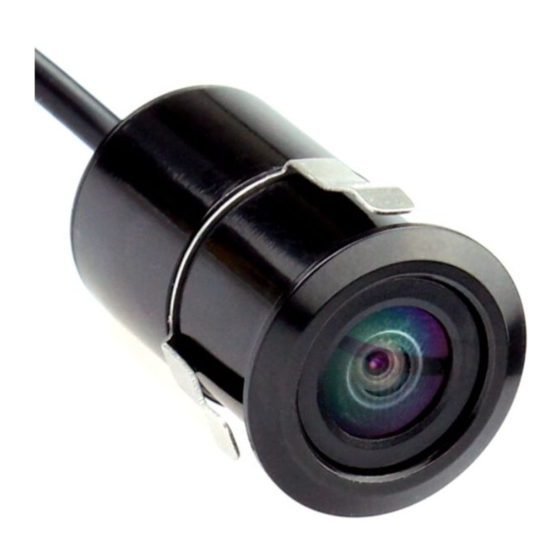

Mini rear view 1/4 cmos camera flush mount, drill to fit

U s e r M a n u a l

CAM-1

PRODUCT FEATURES:

Sensor: 1/3" (8.5mm) CCD

Current Consumption: 41mA @ 13.8V

Resolution: (TV Lines) 580

Minimum Illumination: 0.01 Lux

Angle: 150 Degrees

Effective Pixels: 762 x 504

TV System: NTSC

Video Output: 1.0V p-p 75ohm

Parking Lines: No

Working Voltage: DC 9-16V (Negative Ground)

Operating Temperature: -30 Degrees C to +65 Degrees C

Waterproof Rating: IP67

Infra-Red LED's: No

Image: Mirror

Enhanced Performance In Low Light: Yes

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

Please ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Connects2 want to provide a fast and suitable resolution should you encounter any tech-

nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-

mation as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

Mini Rear View 1/4 CMOS Camera

Flush Mount, Drill to Fit

Table of Contents

Do you have a question about the CAM-1 and is the answer not in the manual?

Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any tech- nical issues. With this in mind, when contacting Connects2, try to provide as much Infor- mation as possible. This will speed up the process and help us to help you.
Page 2 4. Using the supplied video cable, connect the camera to the display screen and ensure that the image is displayed correctly. NB: Rotation of the camera may be required to ensure that the correct orientation of the image is achieved. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
