Summary of Contents for Logik L3DAB12

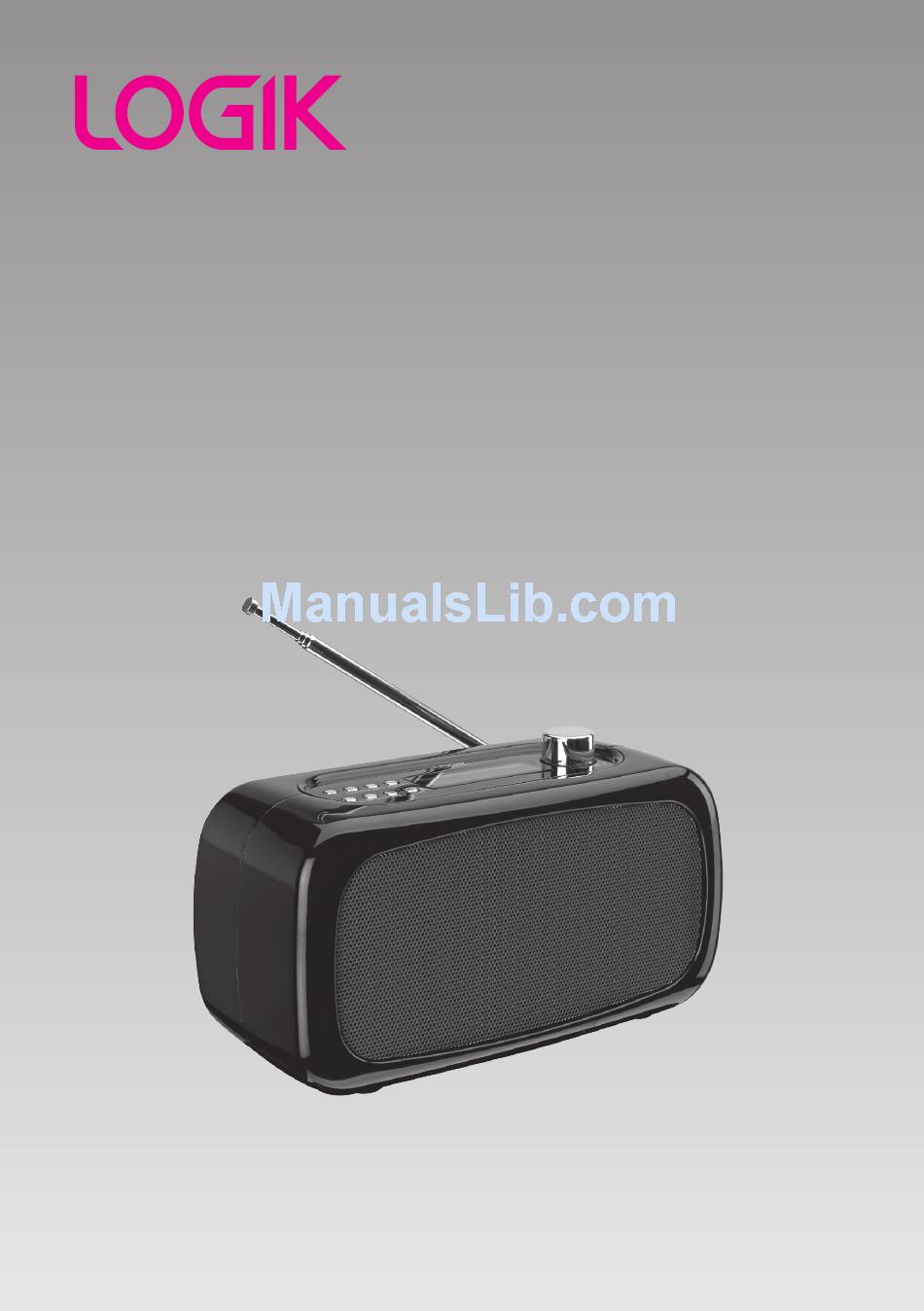

- Page 1 DAB Radio Instruction Manual L3DAB12...
-
Page 3: Table Of Contents
Contents Unpacking ........................4 Product Overview ......................5 Front View ..............................5 Rear View ...............................5 Top View ..............................6 Power Source ........................6 Mains Power ............................6 Battery Power ............................6 Battery Life (Approx. hours) ......................6 Knowing when to replace the batteries ..................7 Switching On Your Unit for the First Time ..............7 Basic Operation ......................8 Powering ON/OFF ..........................8 Selecting Modes ..........................8... -
Page 4: Unpacking
Thank you for purchasing your new Logik DAB FM Radio. We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 5: Product Overview
Product Overview Front View Speaker Rear View DC IN Telescopic Aerial Earphones Socket ON/OFF Switch Battery Compartment DC IN 5V Socket GB-5... -
Page 6: Top View
Top View 1 2 3 4 DAB/FM INFO PRESET SCAN SELECT PREV NEXT - VOLUME + 5 6 7 8 SELECT Button STANDBY Button PREV Button DAB/FM Button NEXT Button INFO Button LCD Display Window PRESET Button 10. VOL+/– Dial SCAN Button Power Source Mains Power... -
Page 7: Knowing When To Replace The Batteries
Knowing when to replace the batteries • When the batteries lose power, the sound becomes weak and distorted. • When the batteries are completely exhausted, “ ” appears on the display and the power is turned off. • When “ ”... -
Page 8: Basic Operation
Basic Operation Powering ON/OFF Connect the unit to the mains socket and switch the ON/OFF switch at the back of the unit to “ON” position to switch the unit on. STANDBY button to switch the unit back to Standby mode. •... -
Page 9: Dab Operation
DAB Operation To listen to the tuned stations press either the PREV / NEXT buttons. Each time you press the PREV / NEXT buttons, you will skip to the previous or next stored station. The unit will display the station name. Memory When you power up the unit again, the unit plays the same mode and station (DAB or FM) as the last operation. -
Page 10: Dab Display Modes
DAB Display Modes Every time you press the INFO button, the display will cycle through the following display modes: DLS, Programme Type, Muitlplex Name, Frequency, Audio Bit rate, Signal Strength, Date/Time The information is displayed on the lower segment of the display. DLS (Dynamic Label Segment) Dynamic label segment is a scrolling message that the broadcaster may include with their... -
Page 11: Auto Scan Modes
Auto Scan Modes There are two types of scans, one is Quick scan and the other is Full scan. Quick scan: • Searches the stations between channels 10A and 12D. To activate the quick scan press the SCAN button. • Full scan: Searches all DAB channels in the DAB Band III. -
Page 12: Fm Operation
FM Operation Switching from DAB to FM Mode To switch the unit from DAB to FM mode, press the DAB/FM button once. The display shows “Switching to FM”. On the top line of the display is the current frequency. On the bottom of the display, <Programme Type>... -
Page 13: Fm Display Modes
FM Display Modes Every time you press the INFO button, the display will cycle through the following display modes: Programme Type, Signal Strength, Time/Date, Channel Frequency, Audio Mode, Radio Text. Programme Type Programme Type This describes the “Style” or “genre” of music that is being broadcast e.g. -
Page 14: Using Earphones
Using Earphones Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically disabled. DC IN Avoid using earphones with the volume turned up for an extended period of time. Doing so can damage your hearing. -
Page 15: Maintenance
Maintenance Ensure the unit is firmly unplug from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray an aerosol at or near the unit. -
Page 16: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future reference. • To prevent the risk of electric shock or fire • Retain the manual. If you pass the unit onto a hazard due to overheating, ensure that curtains third party make sure to include this manual. - Page 17 Supervision • Children should be supervised to ensure that they do not play with the unit and the remote control. • Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
- Page 18 EU. For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N. L3DAB12-001)
