Summary of Contents for Logik L2DAB12
- Page 1 Instruction Manual DAB Radio L2DAB12...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................5 Product Overview ..........................6 Front View .................................. 6 Rear View ................................... 6 Power Source ..........................7 Mains Power ................................7 Battery Power ................................7 Battery Life (Approx. Hours) ..........................7 Switching On Your Unit for the First Time ..................8 Basic Operation ..........................8 Powering ON/OFF .............................. -
Page 4: Safety Warnings
Safety Warnings Mains Adapter • Retain the manual. If you pass the unit onto a third party make sure to include this manual. • The mains adapter will continue to draw electricity • Check that the voltage marked on the rating label from the mains supply when plugged in the mains matches your mains voltage. -
Page 5: Unpacking
Thank you for purchasing your new Logik DAB Radio. We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 6: Product Overview

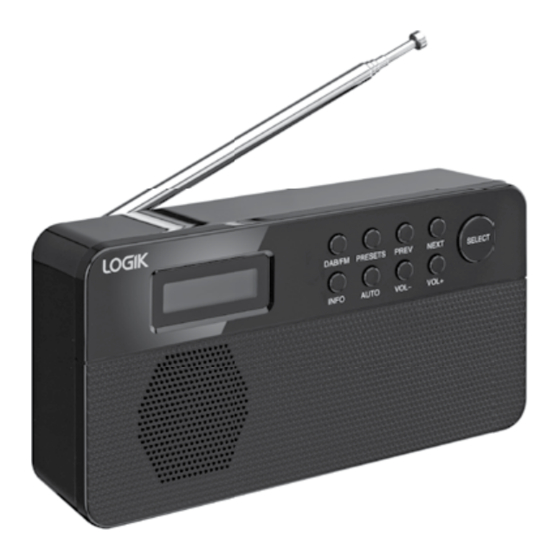

Product Overview Front View DAB/FM PRESETS PREV NEXT SELECT INFO AUTO VOL- VOL+ 1. LCD Display 3. DAB/FM Button 2. INFO Button PRESETS Button AUTO Button PREV Button VOL– Button NEXT Button VOL+ Button 4. SELECT Button Rear View DC 6V IN 5. -
Page 7: Power Source
Power Source Mains Power Connect the mains adapter (included) to the DC IN socket and then the mains socket. DC 6V IN Battery Power Insert 4 AA batteries (not included) correctly by following the polarity (+ or –) indications in the battery compartment. -
Page 8: Switching On Your Unit For The First Time
• If the batteries are replaced while the power is on, the unit may revert to the factory setting. • Due to the short battery life span of some alkaline batteries, it is recommended to use rechargeable batteries. You will need to purchase a charger to charge the rechargeable batteries. -
Page 9: Dab Operation
DAB Operation To listen to the tuned stations press the PREV / NEXT buttons. Each time you press the PREV / NEXT buttons, you will skip to the previous or next stored station. The unit will display the station name. Auto Scan Modes There are two types of scans: Quick scan and Full scan. -
Page 10: Recalling A Preset Station
Recalling a Preset Station 1. Once you have saved a station to one of the preset buttons, you can recall it by pressing the PRESETS button. The display will show “Preset Load #”. 2. Press the PREV or NEXT buttons to select your desired preset station number. 3. -
Page 11: Fm Operation
FM Operation Switching from DAB to FM Mode Press the DAB/FM button repeatedly to switch to FM mode. The display will show FM frequency. On the top line of the display is the current frequency. On the bottom of the display, <Programme Type>... -
Page 12: Fm Display Modes
FM Display Modes Every time you press the INFO button, the bottom line of the display will cycle through the following display modes. Programme Type Programme Type This describes the “Style” or “Genre” of music that is being broadcast e.g. “Rock” or “Classical”. Audio Mode When in FM mode, the display will show if the Audio Mode... -
Page 13: Using Earphones
Using Earphones Turn down the volume before connecting the earphones. Slowly increase the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is DC 6V IN automatically disabled. Avoid listening to sound at excessive levels which could be harmful to your ears. - Page 16 All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK IB-L2DAB12-140210V5...
