STEP 5
5.1 Tighten Short Pole(5)to Insert Cap(7).
5.2 Install Nail Leg(3)to the bottom of Side
Panel(B)&(C) using hammer.
STEP 7
Attach another Panel(G)to Panel(C) using
Screw(1)and then tighten with Leg(6).
Recommended Maximum Weight
20
10
10
*Unit in Pound(lbs)
STEP 6
6.1 Attach Panel(G)to Panel(C)using Screw(1).
6.2 Attach Long Pole(4)and tighten it.
STEP 8
Unfold Bins(8)and slide into the desk.
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Approx. 15 minutes
Approx. 10 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
No Tools Required
Tools Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

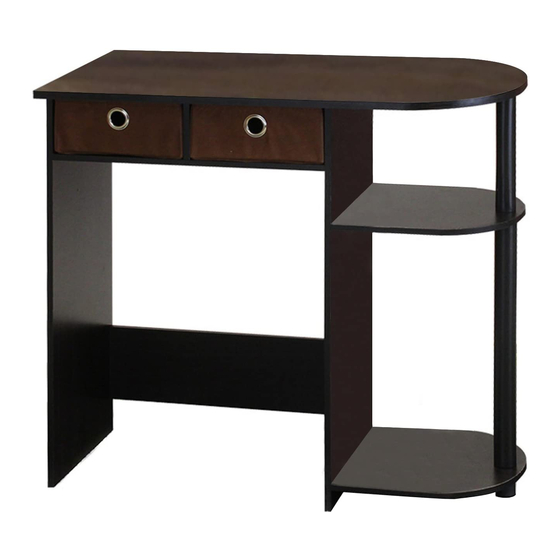

Furinno Go Green Home Laptop Notebook
Computer Desk/Table
11193
MODEL
:
DIMENSION :
31.5"(W) x 28.5"(H) x 15.6"(D)
1119320140430
