STEP 5
Combine assembled unit in Step 2 and Step 4
using Cam-Lock Screw/ Nut (5) and Long
Dowel (6).
(5)x 4pcs
(6)x 2pcs
(5)x 4pcs
Recommended Maximum Weight
15
15
15
15
15
*Unit in Pound(lbs)
STEP 6
6.1 Attach L-Support/ Screw (3) to the back of
assembled unit.
6.2 Cover screw head with Sticker (4).
(3)x 4pcs
D
(3)x 4pcs
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
Approx. 50 minutes
Recomm. 2 Person
Tool Required
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
www.furinno.com
Assembly Instruction
Furinno

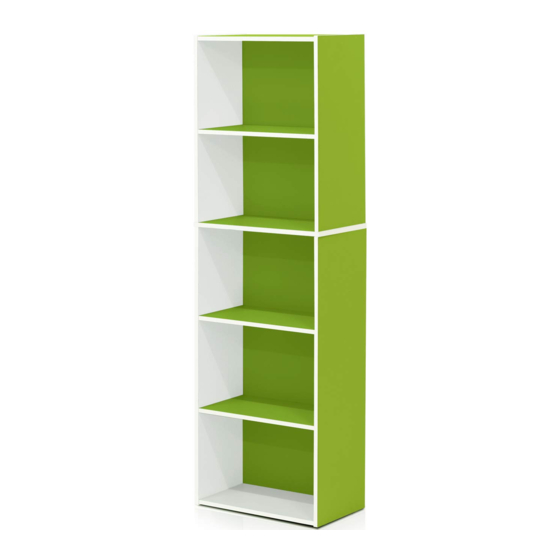

5-Tier Open Shelf Bookcase
MODEL
:
11055WH-GR/PI/LBL
1105520180321
