STEP 5
Attach Panel(B)to assembled unit with
Screw(1).
(1)x12pcs
Recommended Maximum Weight
50
15
15
*Unit in Pound(lbs)
STEP 6
Insert Round Leg(4)to Panel(B)uisng hammer.
(4)x6pcs
STEP 7
Upright the unit.Insert Shelf Support(3)
and place Panel(H)on it.
(3)x8pcs
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 40 minutes
Recomm. 2 Person
Tools Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction
Furinno

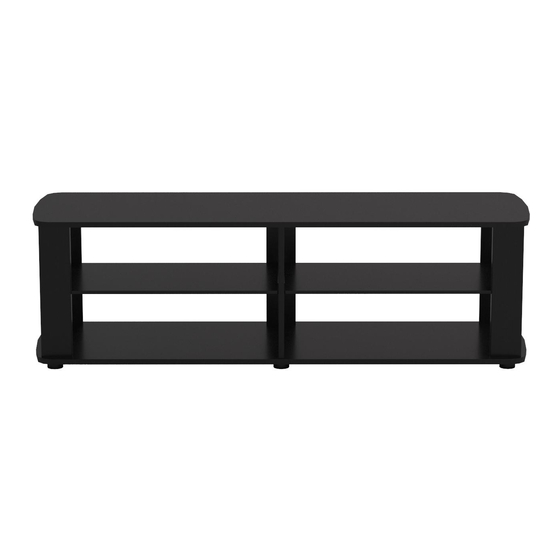

THE Entertaiment Center
Tube Shelf
11191
MODEL
:
DIMENSION :
43.3"(W) x 13.4"(H) x 13.1"(D)
1119120140325(2)
