STEP 1
1.1 Insert Dowel(2)and Cam-Lock Nut(4)to Panel(C)(D)&(E),as shown.
1.2 Screw Cam-Lock Screw(5)into the pre-drilled holes on Panel(A)&(B).
(5)x2pcs
(5)x4pcs
A
B
Arrow on Cam-Lock
Nut(4) should be polnting
towarcls holes.
STEP 2
Fix Drawer Slide(7)to Panel(H)using Screw(8).
Note: Please make sure left/right side of Drawer Slide(7) before attach it.
8
7
Assembly Instruction

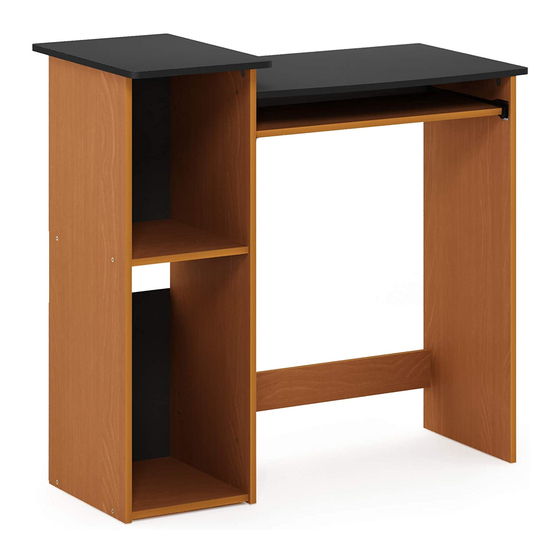

Furinno Econ Multipurpose Computer
Writing Desk
99914
MODEL
:
DIMENSION :
33"(W) x 30.6"(H) x 15.6"(D)
E
D
C
4
(4)x2pcs
(2)x2pcs
(8)x4pcs
H
8
7
No
Hardware List
Screw
1
2
Wooden Dowel
Nail Leg
3
Cam-Lock Nut
4
5
Cam-Lock Screw
6
Power Pin
7
Drawer Slide
Short Screw
8
C
USEFUL HINTS BEFORE YOU START:
1. Read each step carefully before starting.
2. It is important that each step is performed in correct order to avoid difficulties.
3. Identify, sort and count the parts before assembly.
4. Assemble your furniture on packaging cardboard to prevent scratch or damage.
5. Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
6. Using uncompatible hardware might cause damage to product.
9991420140523
STEP 3
Fix Drawer Slide(7) to Panel(D)&(E)using Screw(8).
Note: Please make sure left/right side of Drawer Slide(7) before attach it.
STEP 4
Attach Panel(F)to Panel(D)using Screw(1).
Qty
No
Top Panel 1
A
18pcs
B
Top Panel 2
6pcs
C
Left Side Panel
6pcs
Center Panel
6pcs
D
6pcs
E
Right Side Panel
16pcs
F
Shelf Panel
Cross Bar
1pcs
G
8pcs
H
Keyboard Panel
I
Back Panel
B
I
I
G
F
D
H
I
F
G
(8)x2pcs
(8)x2pcs
8
7
D
F
F
1
Parts List
Qty
1pcs
1pcs
1pcs
1pcs
1pcs
2pcs
2pcs
1pcs
2pcs
A
E
E
8
7
D
(1)x4pcs
