STEP 7
7.1 Attach Drawer Slider(5B)to Keyboard
Panel(C)using Screw(6),as shown.
7.2 Attach Keyboard Stopper(8)to Keyboard
Panel(C)using Power Pin(9),as shown.
(6)
(6)x4pcs
(C)
finished edge
(5B)
(C)
finished
surface
(8)
unfinished
edge
(9)x2pcs
(9)
Recommended Maximum Weight
15
5
15
*Unit in Pound(lbs)
STEP 8
Slide Keyboard Panel(C)to the assembled
unit ,as shown:
(C)
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Approx. 15 minutes
Approx. 10 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
No Tools Required
Tools Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

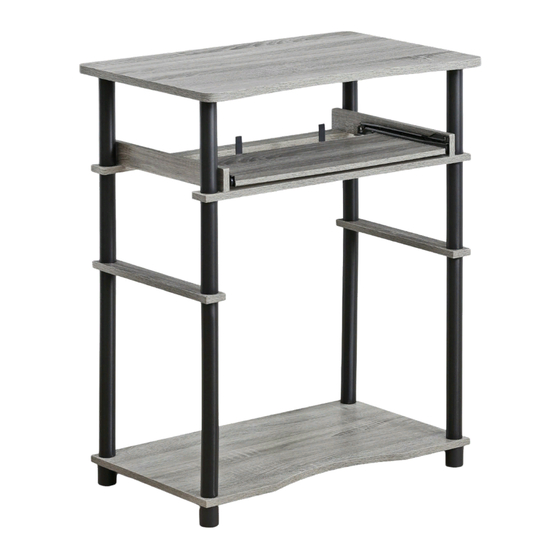

Furinno Home Laptop Notebook
Computer Desk
10016
MODEL
:
DIMENSION :
23.6"(W) x 29.6"(H) x 15.6"(D)
1001620140429
