Furinno 11191 Assembly Instruction

Entertainment center tv stand

Download this manual

STEP 11

ASSEMBLED UNIT

SHELF PANEL

2 PCS

STEP 12

Recommended Maximum Weight

*Unit in Pound(lbs.)

WARNING:

>This unit has been designed to support the

maximum loads shown. Exceeding these

load limits could cause sagging, instability,

product collapse, and/or serious injury.

>DO NOT allow children to climb on unit.

>Put heavier items on lower shelves.

Approx. 40 minutes

Recomm. 2 Person

Tool Required

Customer Support

NEED HELP? For replacement requests or product inquiries,

please contact our Customer Service Team by emailing us at

support@furinno.com. Thank you for selecting Furinno!

www.furinno.com

Assembly Instruction

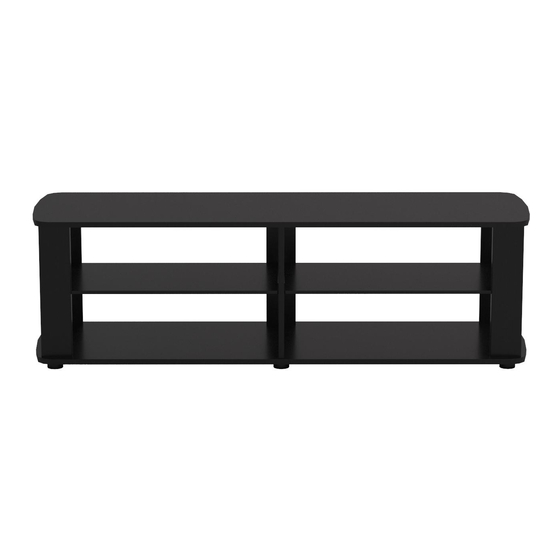

Furinno THE Entertainment Center TV Stand

MODEL

: 11191

1119120180806

Need help?

Do you have a question about the 11191 and is the answer not in the manual?

Page 1 STEP 11 ASSEMBLED UNIT SHELF PANEL 2 PCS Assembly Instruction Furinno THE Entertainment Center TV Stand STEP 12 MODEL : 11191 Approx. 40 minutes Recomm. 2 Person Recommended Maximum Weight Tool Required Tool Required Customer Support WARNING: NEED HELP? For replacement requests or product inquiries, >This unit has been designed to support the...
Page 2 STEP 9 EXPLODED VIEW TURN 180° ASSEMBLED UNIT USEFUL HINTS BEFORE YOU START: 1. Read each step carefully before starting. 2. It is important that each step is performed in correct order to avoid difficulties. 3. Identify, soft and count the parts before assembly. 4.
Page 3 STEP 7 STEP 1 ASSEMBLED UNIT FRONT PANEL 2 PCS SCREW 8 PCS CENTER PANEL 1 PC TOOL REQUIRED CENTER BACK PANEL 1 PC TOOL REQUIRED DOWEL 12 PCS STEP 8 STEP 2 ASSEMBLED UNIT SIDE PANEL 2 PCS PVC ROUND LEG 6 PCS BACK PANEL 2 PCS TOOL REQUIRED...
Page 4 STEP 3 STEP 5 FINISHED SURFACE TOP PANEL 1 PC ASSEMBLED UNIT CAM-LOCK SCREW 8 PCS FRONT PANEL 2 PCS TOOL REQUIRED CENTER PANEL 1 PC FINISHED SURFACE CENTER BACK PANEL 1 PC STEP 4 STEP 6 FINISHED SURFACE TOP PANEL 1 PC ASSEMBLED UNIT UNFINISHED...
